8-4 Installing the PV550 Terminal

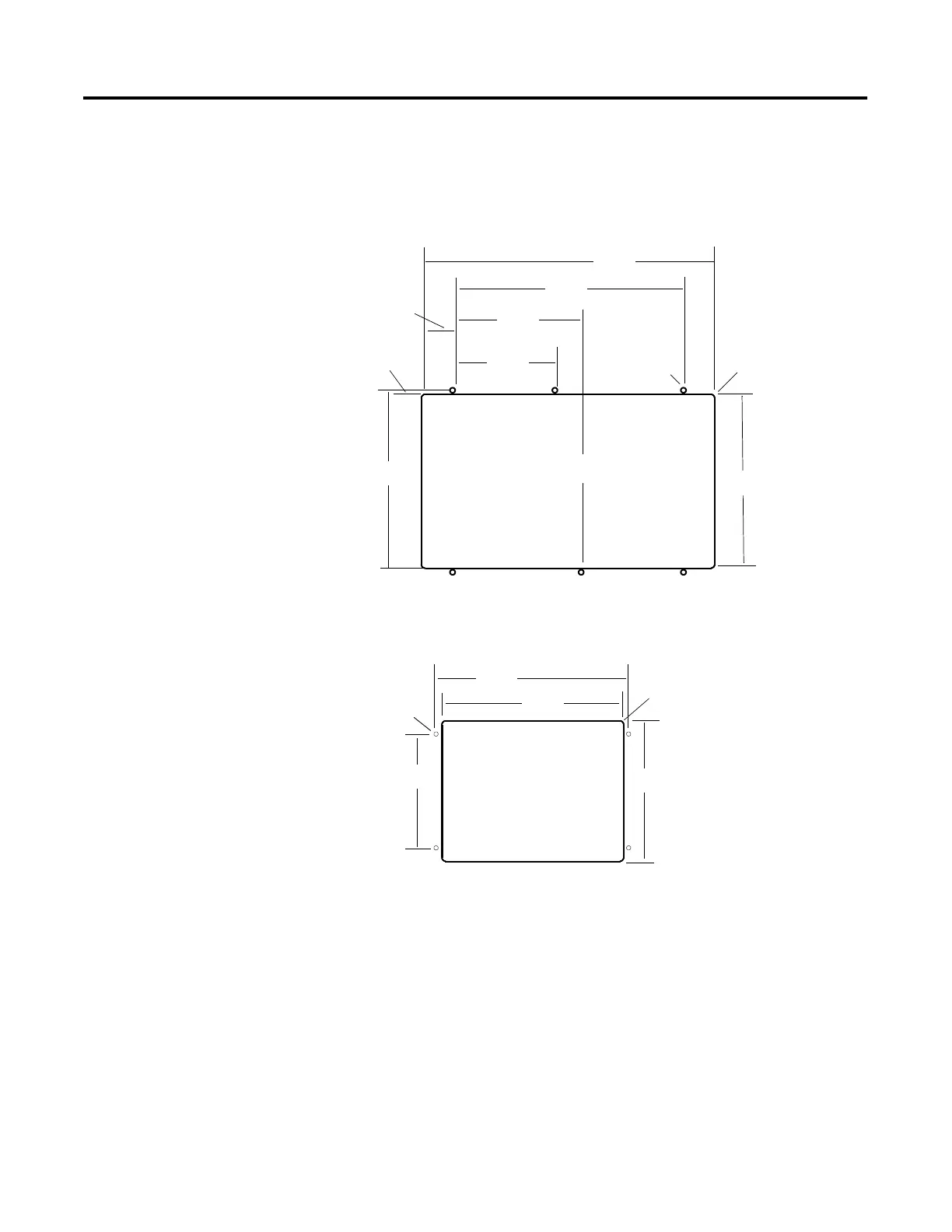

Cutout Dimensions
Use the full size template shipped with the PV550 terminal to mark
the cutout dimensions. Below is a reduce size cutout.
PV550 Keypad, Keypad & Touch Screen Terminals
PV550 Touch Screen Terminals
144 mm
(5.66 in)
150 mm
(5.91 in)
85 mm
(3.33 in)
106 mm
(4.19 in)
191 mm
(7.51 in)
243 mm
(9.55 in)
4.8 mm dia
(0.188 in)
3.3 mm
(0.13 in)
3.3 mm
(0.13 in)
25.9 mm
(1.02 in)
Front
Recommended Panel Cutout Dimensions
125 mm
(4.91 in)
98 mm
(3.86 in)
158 mm
(6.20 in)
R 1.8 mm
(0.07 in)
4.8 mm dia.
(0.188 in)
165 mm
(6.49 in)
Recommended Panel
Cutout Dimensions
