Publication 2711-UM014B-EN-P
12-36 Terminal Connections
EtherNet/IP Connections
The EtherNet/IP PanelView terminal can communicate on an EtherNet
TCP/IP network with the following devices:
• PLC-5E or PLC-5 with 1761-NET-ENI or 1785-ENET module
• SLC-5/05 or SLC with 1761-NET-ENI module
• ControlLogix controller with 1756-ENET/B or 1761-NET-ENI
module
• MicroLogix, CompactLogix, or FlexLogix with 1761-NET-ENI
module
• another EtherNet/IP PanelView terminal
• Any device that can process CIP messages
The PanelView terminal supports access to multiple ControlLogix
controllers through:
• a single 1756-ENET/B module in a single 1756-I/O rack
• multiple 1756-ENET/B modules in a single 1756-I/O rack
• multiple 1756-ENET/B modules in multiple 1756-I/O racks
EtherNet/IP Terminal Ports
The EtherNet/IP versions of the PanelView terminals (catalog numbers
ending in 20) have an Ethernet RJ45 communications port and an
RS-232 serial port.
• Use the RJ45 port to communicate with a logic controller on an
EtherNet/IP network and transfer applications over an EtherNet/
IP network.
• Use the RS-232 serial port to transfer applications between a
computer and the terminal using a direct connection or to
connect a printer. For connection details, see the last section in
this chapter.

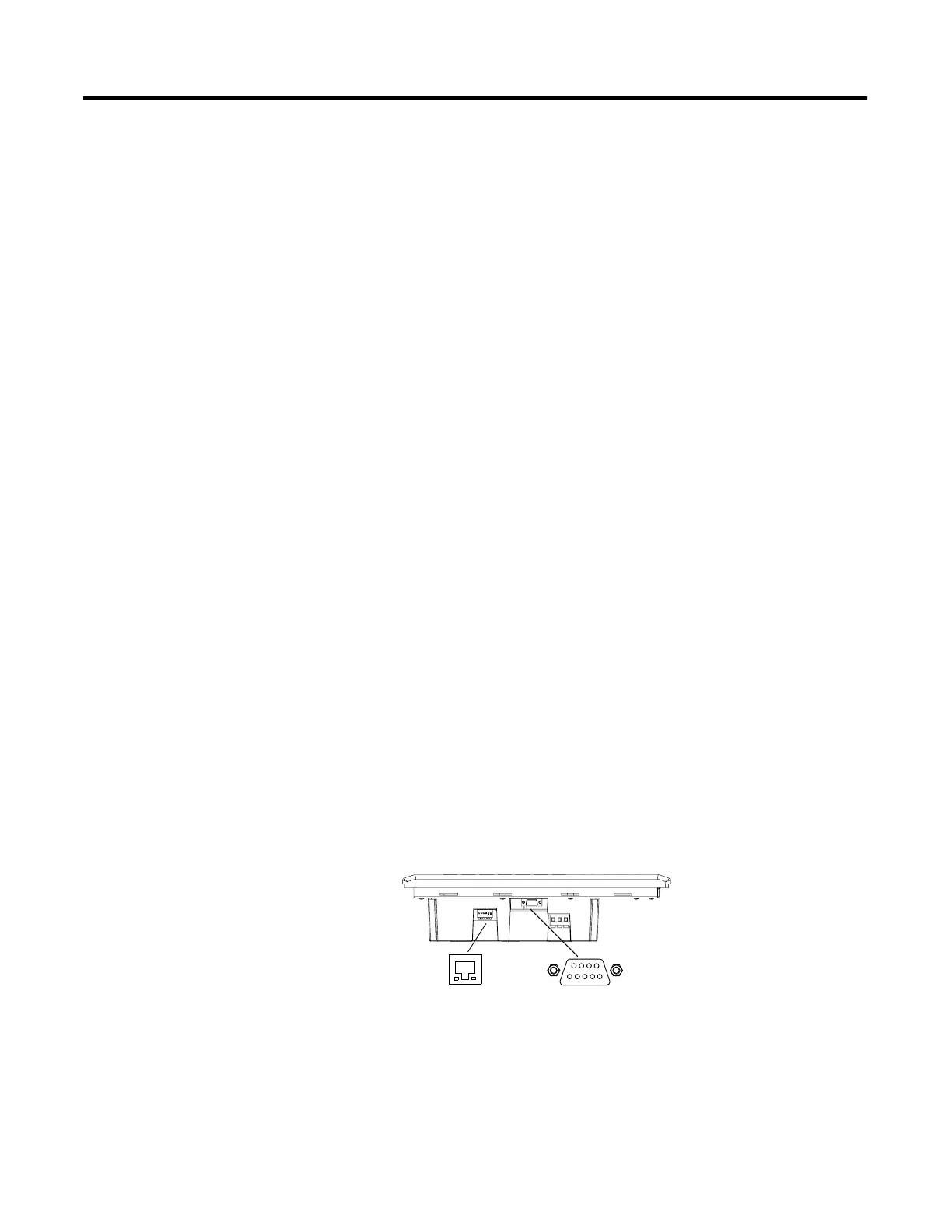

Ethernet Connector
PanelView 1000 shown
RS-232 File Transfer/Printer Port
To Next Page
