Terminal Connections 12-35

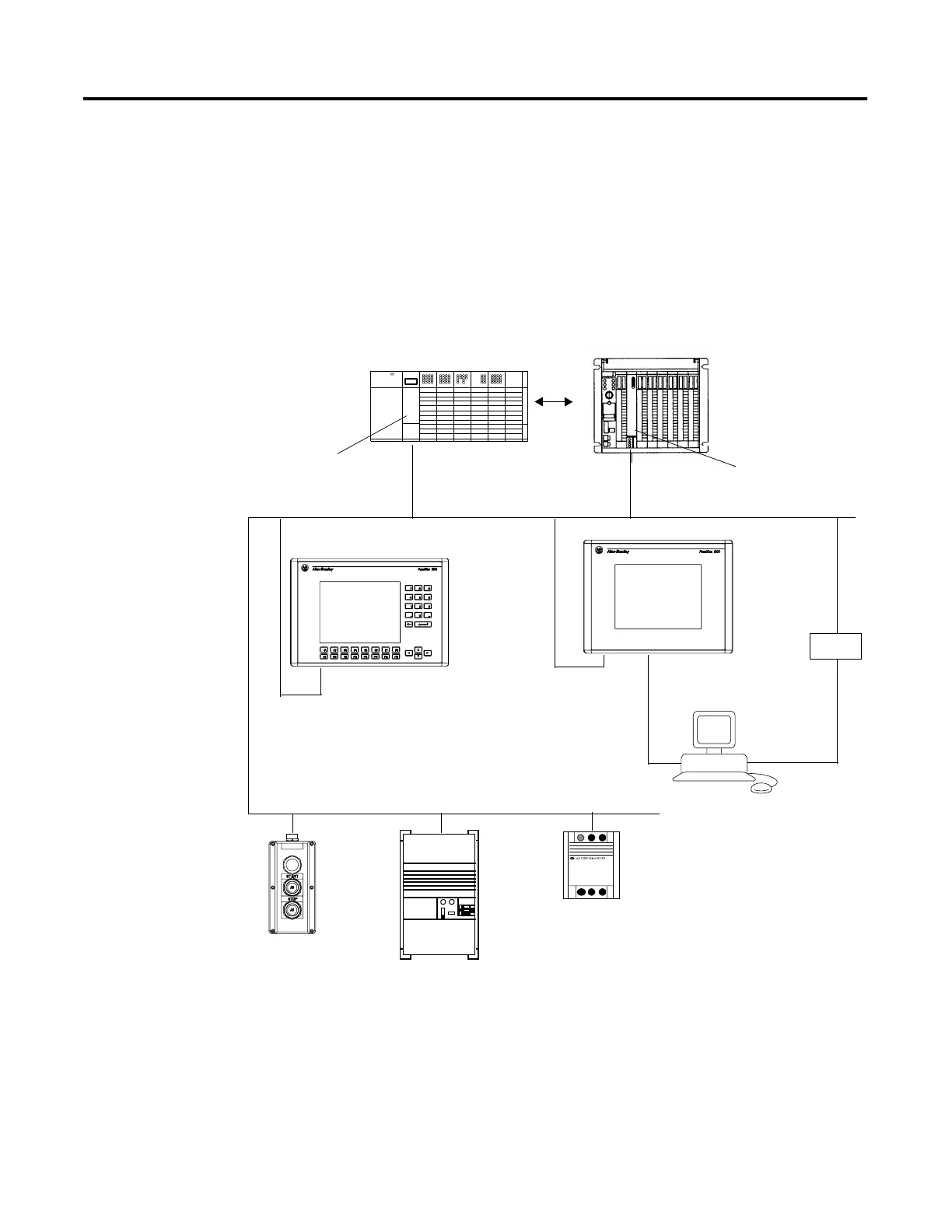

Typical DeviceNet Network
Below is a typical DeviceNet network with PanelView terminals
installed on 2 of the network drops.
A DeviceNet network requires a 24V dc power supply. DeviceNet
power consumption is 24mA - 90mA @24V dc. The PanelView
terminal does not receive its power from the network.
or
SM
C
Download/
Upload
1770-KFD
Module
Smart Motor Controller
SM
C
Drive
RediSTATION
DeviceNet Port
DeviceNet Port
Serial Link
SLC 5/04
PLC-5
PanelView
RS-232 Port
PanelView
DeviceNet
Scanner Module
(Cat. No. 1747-SDN)
DeviceNet
Scanner Module
(Cat. No. 1771-SDN)
Computer for developing
PanelView applications
