Allett C34 EVOLUTION - Front Roller Assembly

AM81687-A
Original Instructions – English 35

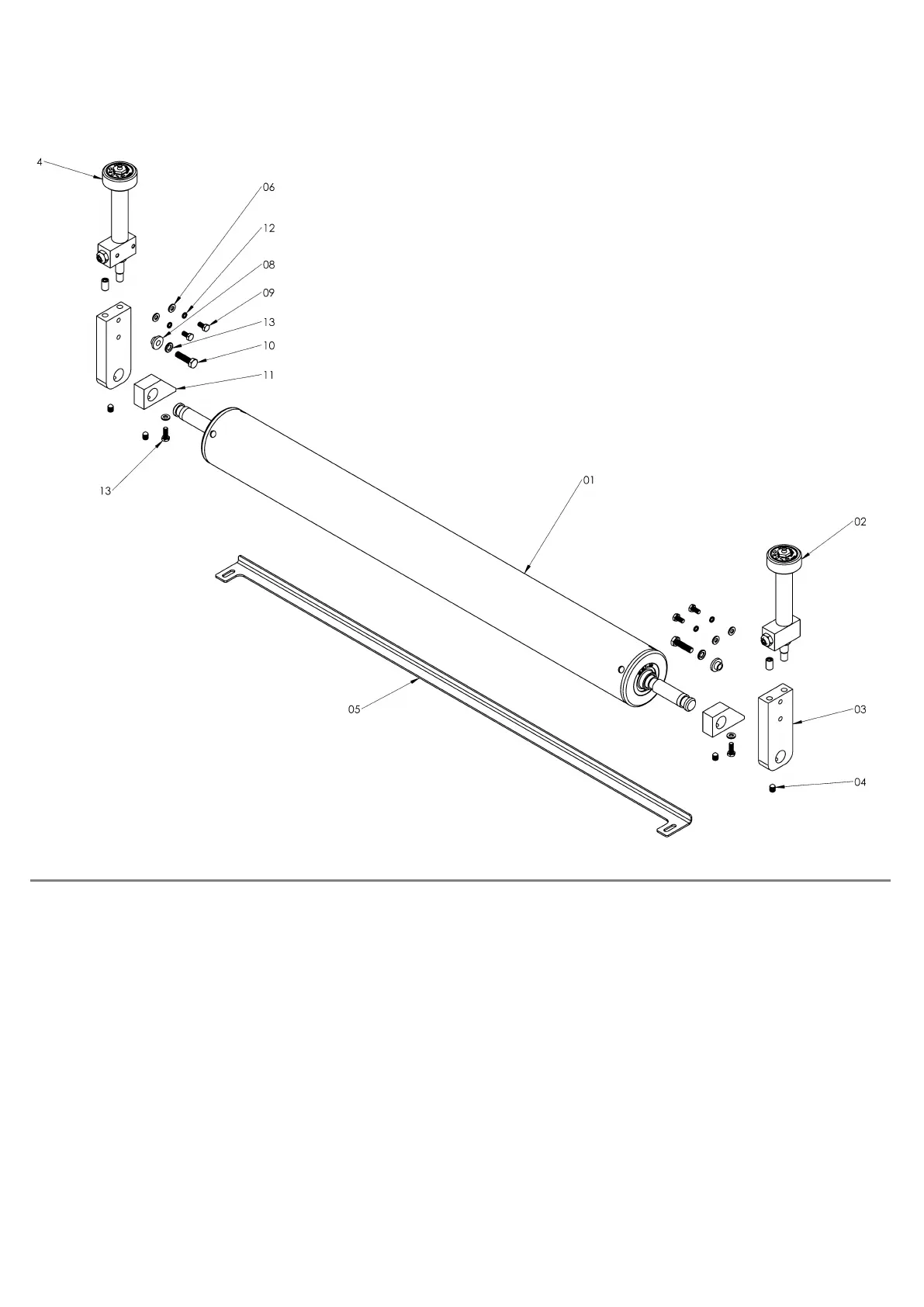

FRONT ROLLER ASSEMBLY
Figure 3
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
F/ROLLER & SHAFT ASSY
BSG212
1
02
LH QUICK HEIGHT ADJUSTER
C094
1
03
34" ROLLER ANCHOR
C1757
2
04
GRUB SCREW M8 x 8
ACGM8
4
05
SCRAPER BAR C34
C1847
1
06
WASHER M6 Form A
WM6
6
07
SPRING WASHER M6
SWM6
4
08
ROLLER ANCHOR TOP HAT
C1758
2
09
M6 X 12 SET SCREW
SM612
4
10
SET SCREW M8 x 30
SM830
2
11
C34E FRONT ROLLER SCRAPER BRACKET
C1847
2
12
SPRING WASHER M8
SWM8
2
13
SET SCREW M6 x 16
SM616
2
14
RH QUICK HEIGHT ADJUSTER
C093
1
