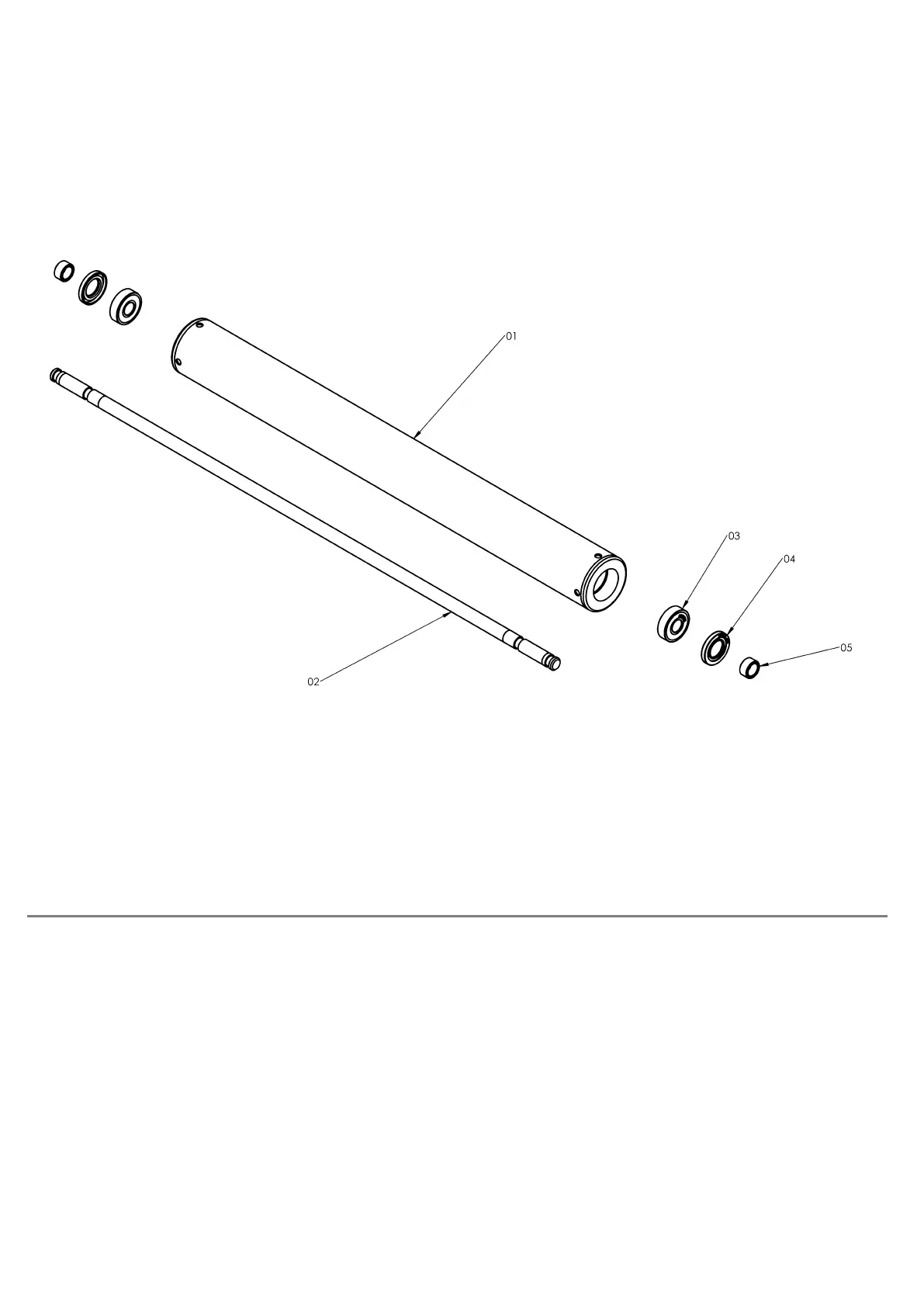

FRONT ROLLER AND SHAFT ASSEMBLY
Figure 4
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
BU/C34 FRONT ROLLER FAB
BSG212
1
02
C34 LI-ION F/ROLLER SHAFT
C1719
1
03
BEARING 20mm 6304 2RS
AM81089
2
04
20 DIA BEARING GREASE SEAL
AM81596
2
05
C34 ROLLER SEAL COLLAR
BSG1410
2
