Allett C34 EVOLUTION - Page 38

AM81687-A
Original Instructions – English 38
Figure 6

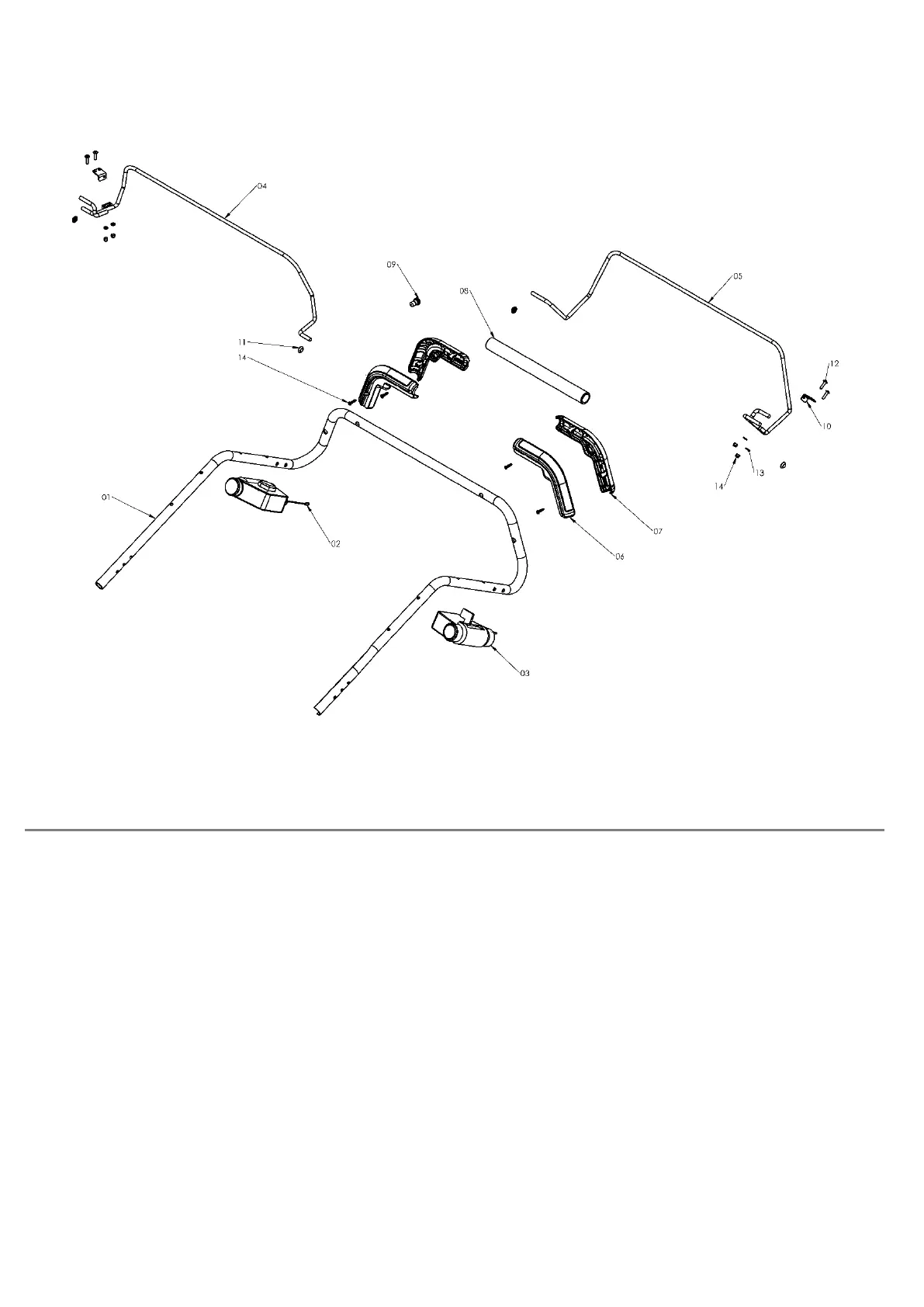

UPPER HANDLE ASSEMBLY
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
UPPER HANDLE LOOP
C1773
1
02
CYLINDER HANDLE SWITCH
C125
1
03
ROLLER HANDLE SWITCH
C124
1
04
CYLINDER BALE BAR ASSY
C103
1
05
ROLLER BALE BAR ASSY
C104
1
06
HANDLE_BOTTOM
C1875
2
07
HANDLE_TOP
C1874
2
08
FOAM SLEEVE
C1879
1
09
SLOW SWITCH ASSY
C134
1
10
BAIL BAR ADJUSTOR BRACKET
C1822
2
11
SECURING CAP
F016T48990
4
12
M5 X 20 SOCKET BUTTON HEAD FLANGED
M5X20_SDF
4
13
WASHER M5 FORM A
WM5
4
14
SCREW
F016T49429
4
