Allett C34 EVOLUTION - Page 39

AM81687-A
Original Instructions – English 39

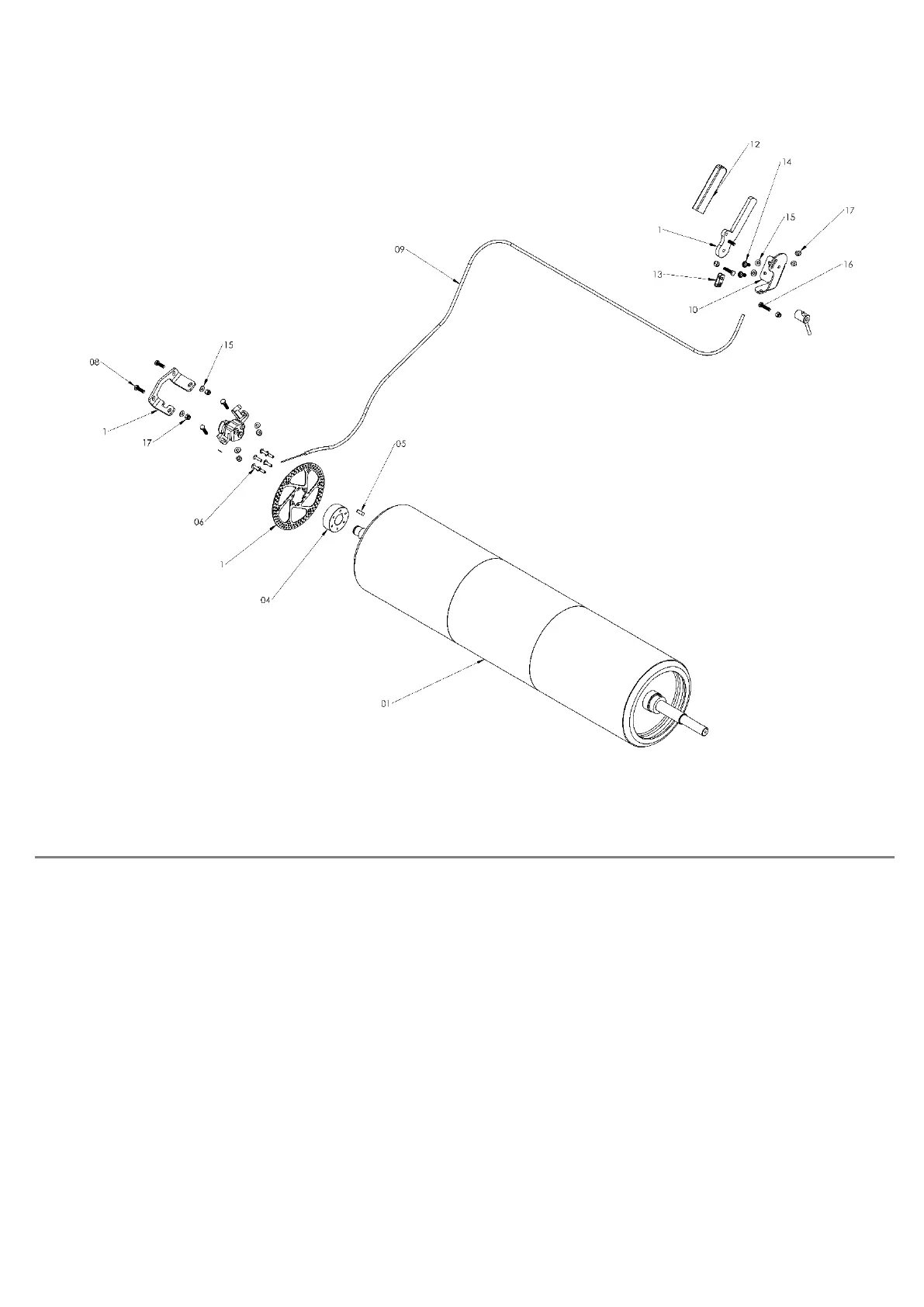

BRAKE ASSEMBLY
Figure 7
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
34" R/ROLLER
F016J11595
1
02
BRAKE DISC
AM81692_DISC
1
03
BRAKE CALIPER
AM81692_CALIPER
1
04
BRAKE HUB
C1841
1
05
KEY 6X6X20 FORM A
AM81500
1
06
M5 X 20 SOCKET BUTTON HEAD FLANGED
M5X20_SDF
6
07
CALIPER BRACKET
C1852
2
08
M6 X 20 SOCKET BUTTON HEAD FLANGED
M6X20_SDF
4
09
BRAKE CABLE
C1848
1
10
BRAKE LEVER BASS PLATE
BSG1089
1
11
BRAKE LEVER
BSG045
1
12
FLAT CAP
AM81140
1
13
YOKE ANCHOR POINT
BSG1024
1
14
M6 X 20 SOCKET BUTTON HEAD FLANGED
M6X20_SDF
2
15
WASHER M6
WM6
6
16
SET SCREW M6 x 25 ZC
SM625
2
17
NUT M6 NYLOC
NM6
6
18
SCREWLOCK BODY FAB
BSG046
1
