Allett C34 EVOLUTION - Page 40

AM81687-A
Original Instructions – English 40

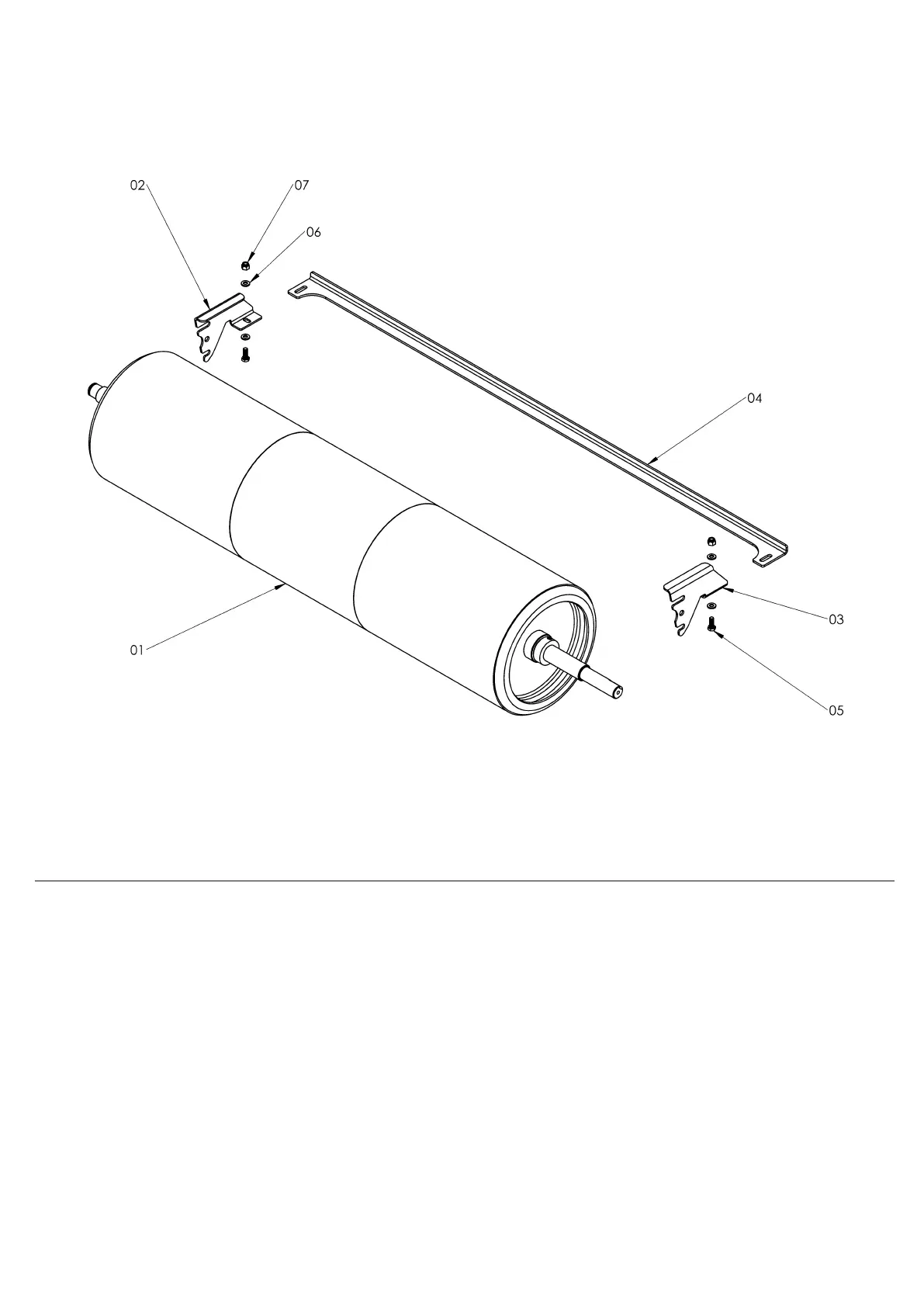

REAR ROLLER AND SCRAPER ASSEMBLY
Figure 8
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
34" R/ROLLER
F016J11595
1
02
C34E REAR ROLLER SCRAPER BRACKET RHS
C1846
1
03
C34E REAR ROLLER SCRAPER BRACKET LHS
C1844
1
04
SCRAPER BAR C34 FRONT SCRAPER
C1631
1
05
SET SCREW M6 x 20
SM620
2
06
WASHER M6 FORM C
WM6
4
07
NUT M6 NYLOC
NM6
2
