Allett C34 EVOLUTION - Page 41

AM81687-A
Original Instructions – English 41

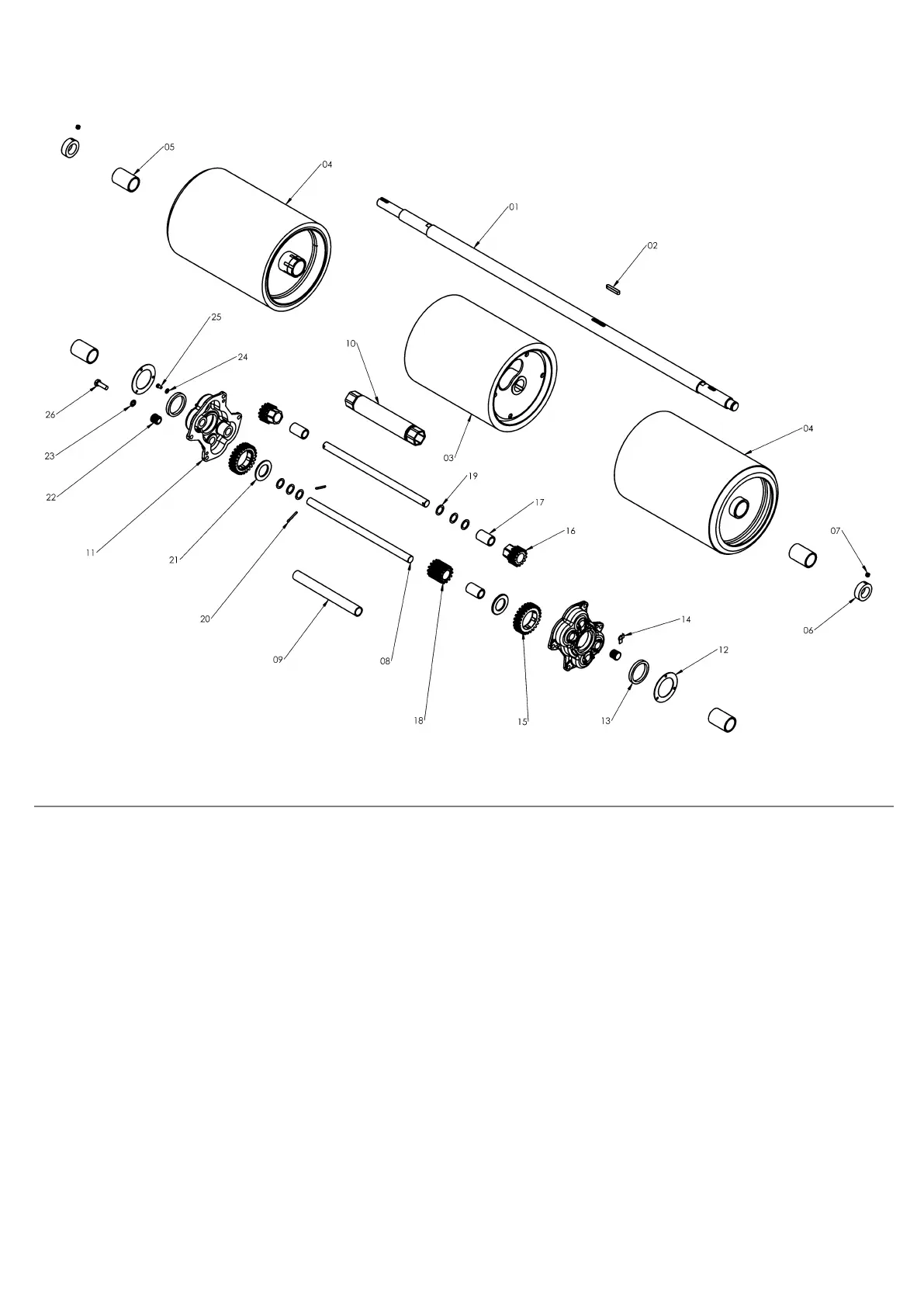

34” REAR ROLLER ASSEMBLY
Figure 9
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
C34 LI-ION R/ROLLER SHAFT
C1718
1
02
KEY
F016L12503
1
03
CENTRE DRUM ASSEMBLY
F016J11599
1
04
REAR ROLLER OUTER
F016J11540
2
05
BUSH
F016L12497
4
06
BAR- REAR ROLLER LOCKING COLLAR
BSG016
2
07
GRUB SCREW M8 x 8
ACGM8x8
2
08
DIFFERENTIAL SHAFT
F016L12550
2
09
DISTANCE TUBE
F016L12552
1
10
PINION COUPLING TUBE
F016L66171
1
11
DIFFERENTIAL GEAR COVER
F016Z20532
1
12
COVER PLATE
F016L12499
2
13
FELT WASHER
F016L12500
2
14
TAB WASHER
F016L12474
2
15
DIFFERENTIAL GEAR WHEEL
F016L12502
2
16
DIFFERENTIAL PINION
F016L12551
2
17
BUSH
F016L12422
3
18
DIFFERENTIAL PINION
F016L13870
1
19
WASHER
F016L13236
6
20
SPLIT PIN
F016L12399
2
21
THRUST WASHER
F016L12501
2
22
PLUG HANDLE BLANKING SMALL T40
F016T48526
2
23
SPRING WASHER
SWM8
8
24
LOCKING WASHER
F016L10274
6
25
SCREW 10-24 UNC x 3/8 CHS HD
F016L20489
6
26
SET SCREW M8 x 25
SM825
8
