Allett C34 EVOLUTION - Page 42

AM81687-A
Original Instructions – English 42

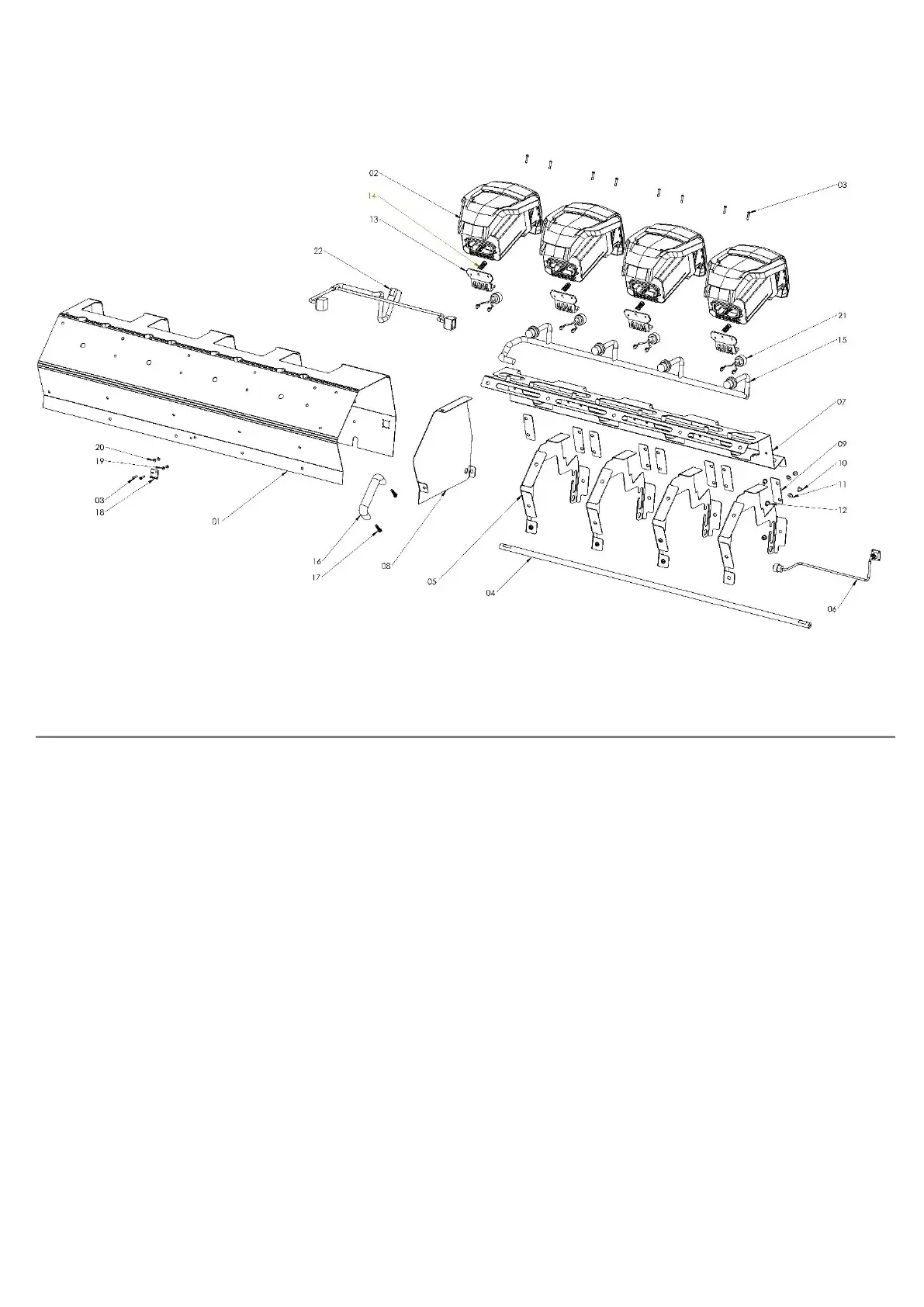

BATTERY HOOD ASSEMBLY
Figure 10
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
COVER
C1764
1
02
82V BATTERY DOCK
82V BATTERY DOCK
4
03
M4x20 PAN HEAD
M4x20 PAN HEAD
10
04
BATTERY DOCK HINGE BAR
C1766
1
05
BATTERY DOCK RIB
C1855
4
06
BACK LAPPING KIT
C129
1
07
BATTERY DOCK CROSS BAR FAB
C1769
1
08
BATTERY DOCK END COVER
C1767
1
09
BATTERY DOCK CLAMP
C1765
8
10
M6x10 Socket Dome Flange Screw
F016J11022
42
11
WASHER M6 Form C
WM6C
16
12
M6 REDUCED HEAD HEX RIVNUT
F016J11067
42
13
BATTERY CONNECTOR
AM81681
4
14
BATTERY CONNECTOR SPRING
AM81682
4
15
BATTERY LOOM ASSY
C133
1
16
HANDLE
EL1086
1
17
SET SCREW M6 x 30 ZC
SM630
2
18
C34E TOGGLE LATCH LOWER LATCH PIECE RS 368-2920
C1811 LOWER LATCH PIECE
1
19
M4 NYLOC NUT
M4 NYLOC
2
20
M4 FLAT WASHER FORM A
WM4A
2
21
BATTERY TERMINAL WIRES
C128
4
22
HANDLE BAR CONNECTOR CABLE ASSY
C118
1
