Allett C34 EVOLUTION - Electrical Components

AM81687-A
Original Instructions – English 47
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
RED LED ASSY
C131
1
02
GREEN LED ASSY
C132
1
03
CYLINDER MODE SWITCH
AM81725
1
04
KEY SWITCH C/W KEY
C1785
1
05
HANDLE BAR SWITCH CONSOLE ASSY (Includes 1-4)
C126
1
06
HANDLE BAR CONNECTOR CABLE ASSY
C118
1
07
4 BATTERY LOOM ASSY
C133
1
08
BATTERY TERMINAL ASSY
C128
4
09
BACK LAP ASSY
C129
1
10
CYLINDER CONTROL BOX ASSY (includes 11 & 18)
C116
1
11
CONTACTOR
AM81673
1
12
ROLLER CONTROL BOX ASSY (includes 11 & 17)
C115
1
13
FUSE 4A
EL1085
2
14
FUSE 25A
AM81722
2
15
FUSE 7.5A
AM81723
1
16
PCB BOARD ASSY
C130
1
17
CONTROLLER - ROLLER
AM81672R
1
18
CONTROLLER - CYLINDER
AM81672C
1

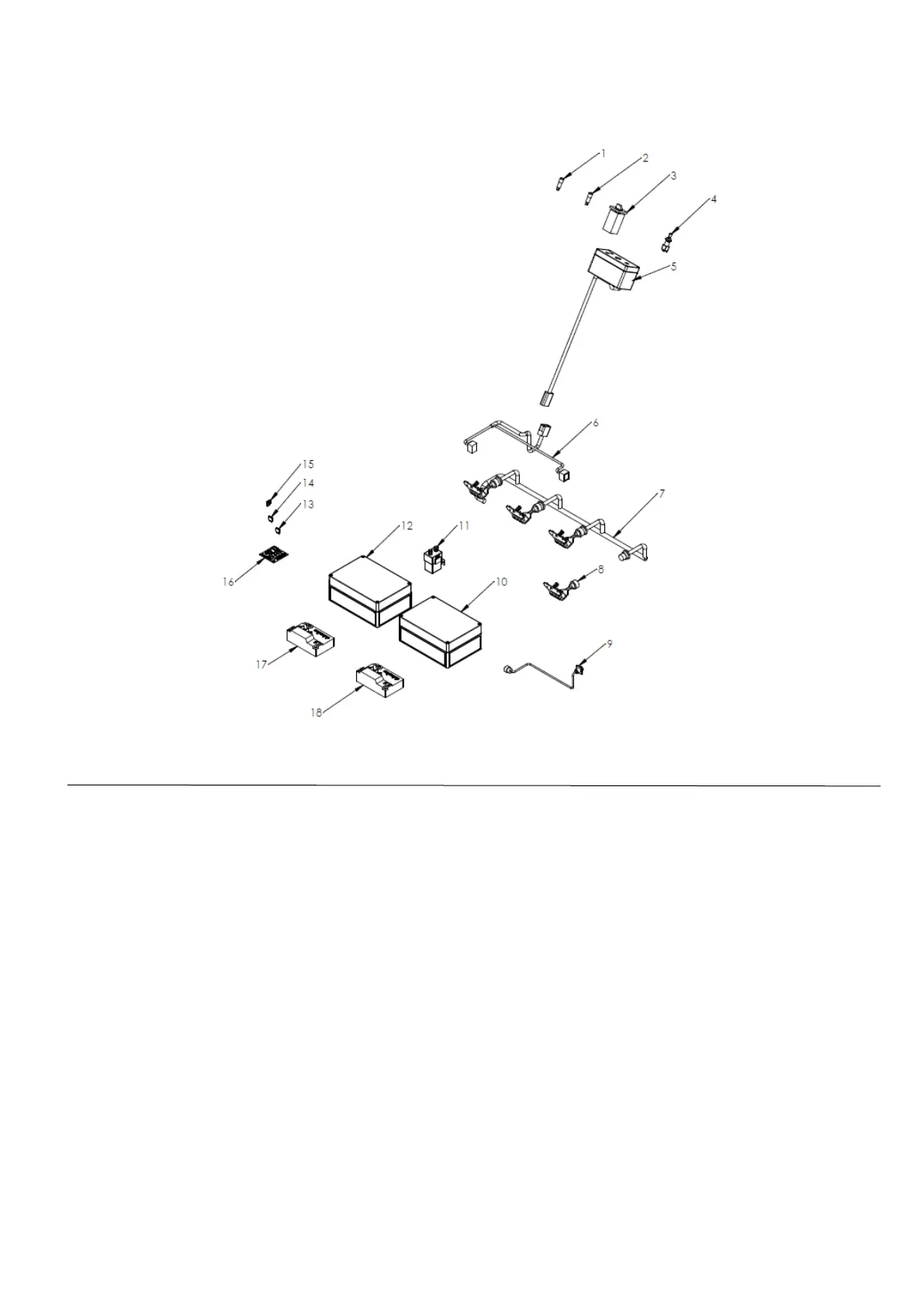

Figure 16
