Allett C34 EVOLUTION - Page 46

AM81687-A
Original Instructions – English 46

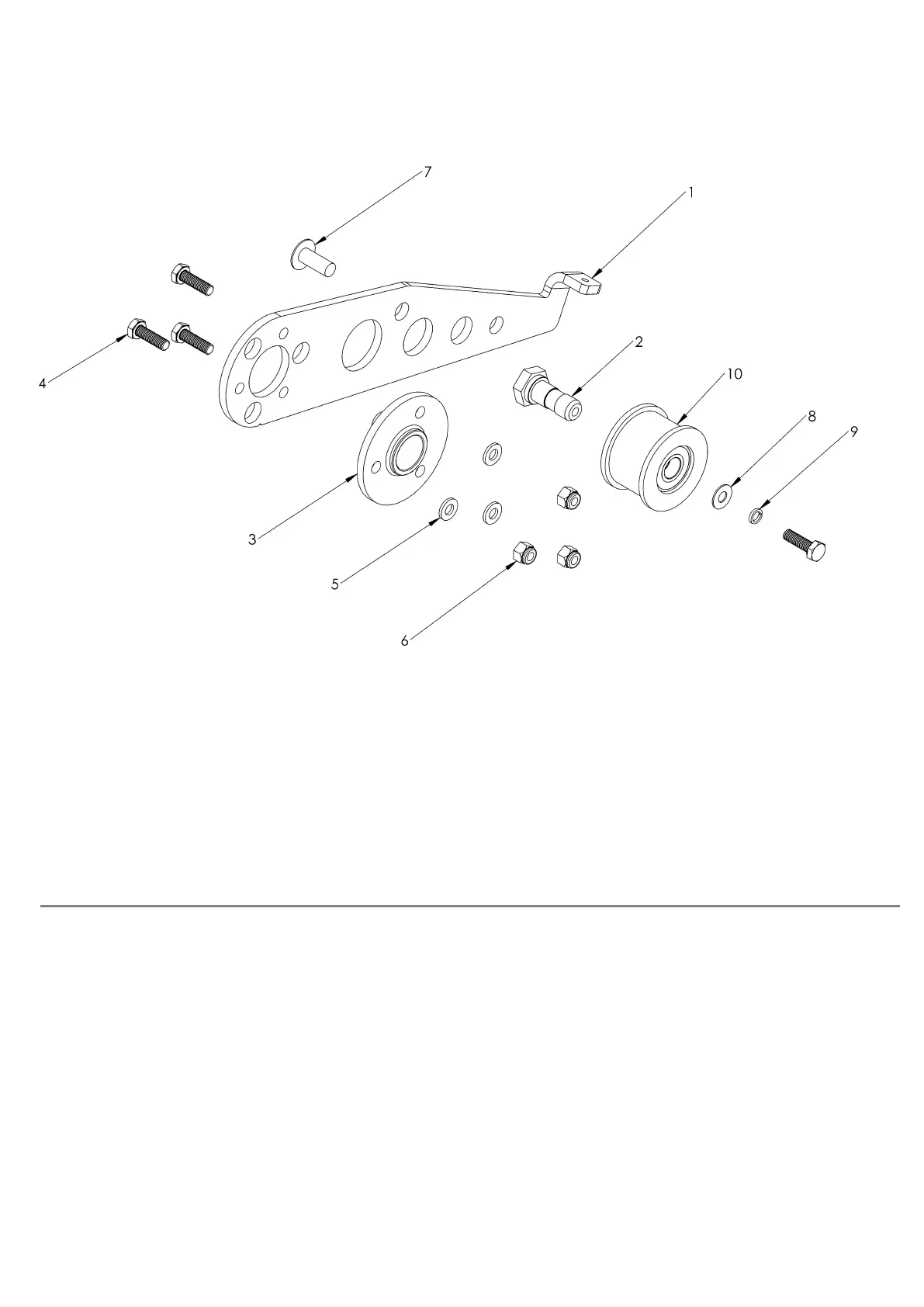

Figure 14
REAR ROLLER TENSIONER ASSEMBLY
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
TENSIONER ARM
C1799
1
02
IDLER BOSS
C1794
1
03
REAR ROLLER BEARING
F016L61256
1
04
HEX SET SCREW
SM620
4
05
WASHER M6
WM6
3
06
NUT M6 NYLOC
NNM6
3
07
M8X20 CUP SQ BOLT
M820BHSS
1
08
WASHER M6 FORM D
WM6D
1
09
SPRING WASHER M6
SWM6
1
10
IDLER PULLEY ASSY
C091
1
-
BAR - CUTTER CLUTCH JOCKEY
BSG1033
1
-
BEARING 12mm 6001 2RS
AM82104
2
-
INTERNAL BEARING SPACER TWIN
BG1048
1
