Allett C34 EVOLUTION - Page 45

AM81687-A
Original Instructions – English 45

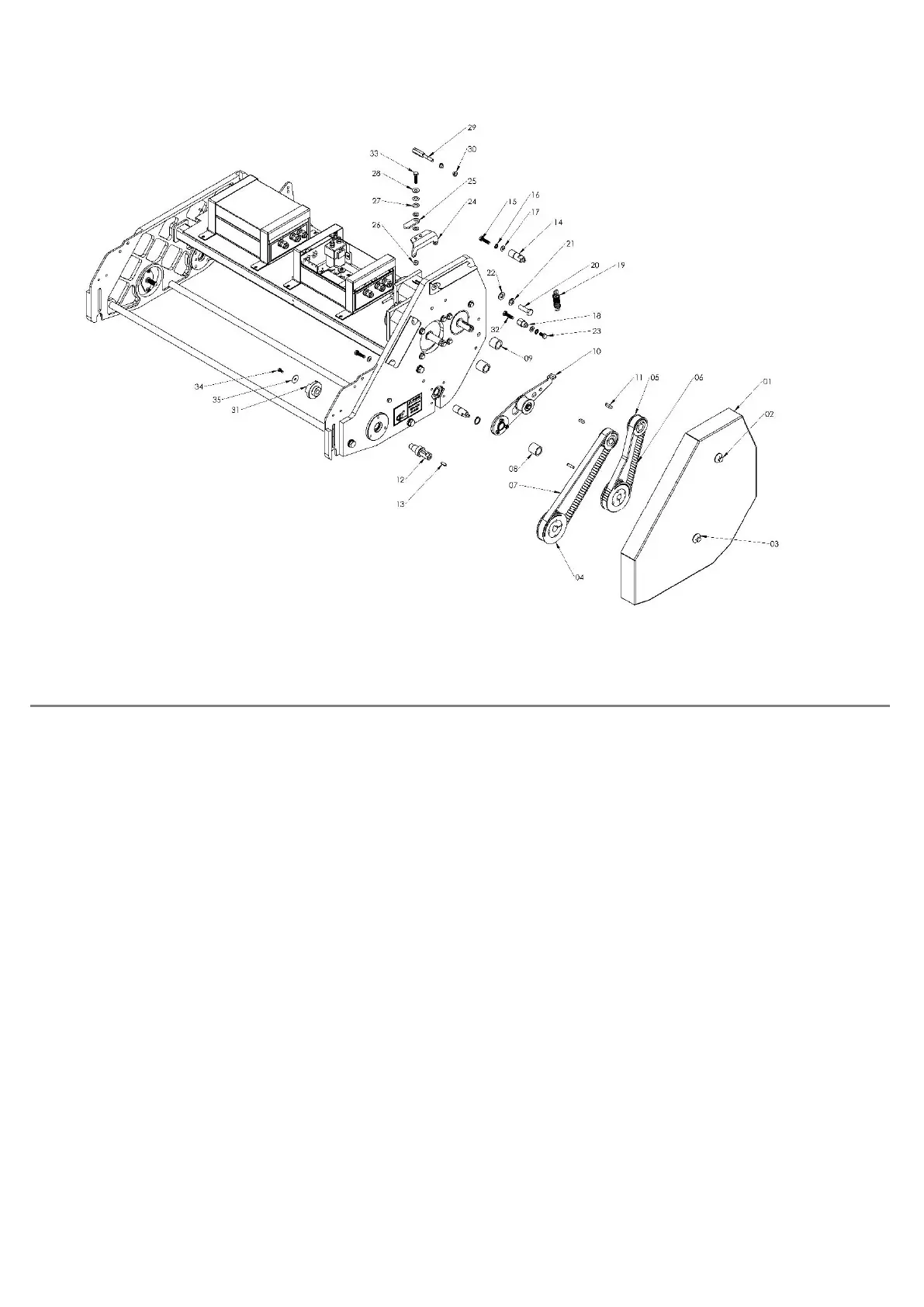

DRIVE ASSEMBLY
Figure 13
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
SIDE COVER
C1796
1
02
CAPTIVE NUT
C1802
2
03
WASHER M10 FORM G
WM10G
2
04
38T TIMING PULLEY
AM81656
2
05
22T TIMING PULLEY
AM81655
2
06
TIMING BELT ROLLER
AM81660
1
07
TIMING BELT CYL
AM81658
1
08
R/ROLLER PULLEY SPACER
C1804
2
09
ROLLER MOTOR PULLEY SPACER
C1827
1
10
R/ROLLER TENSIONER ASSY
C096
1
11
6 x 6 x 25 KEY
AM81465
2
12
DRIVE SPINDLE
C1790
1
13
KEY 6X6X20 FORM A
AM81500
2
14
TENSIONER/GUARD BOSS
C1800
2
15
SET SCREW M8 x 25
SM825
3
16
SPRING WASHER
SWM8
2
17
M8 PLAIN WASHER
WM8
2
18
SPRING ANCHOR
C1801
1
19
CLUTCH SPRING
F016J11461
1
20
M12 BOLT/SET SCREW
SM1240
1
21
SPRING WASHER M12 Z/C
SWM12
1
22
WASHER M12
WM12
1
23
Set screw M8 x 16 ZC
SM816
1
24
MOTOR TENSIONER BRACKET
C1791
1
25
TUNNEL GUARD PROP
C1817
1
26
NUT M8 Nyloc
NNM8
1
27
3-8 BELLEVILLE WASHER
3-8 BELLEVILLE WASHER
2
28
M8 FLAT WASHER FORM C
WM8C
1
29
MOTOR TENSIONER
C1782
1
30
TOP HAT INSULATOR
C1756
2
31
CARTRIDGE COUPLING
C1815
1
32
SET SCREW M8 x 20
SM820
1
33
SET SCREW M8 x 30
SM830
1
34
SET SCREW M6 x 12
SM612
1
35
M6 MUD GUARD WASHER
M6 MUD GUARD WASHER
1
