Allett C34 EVOLUTION - Page 44

AM81687-A
Original Instructions – English 44

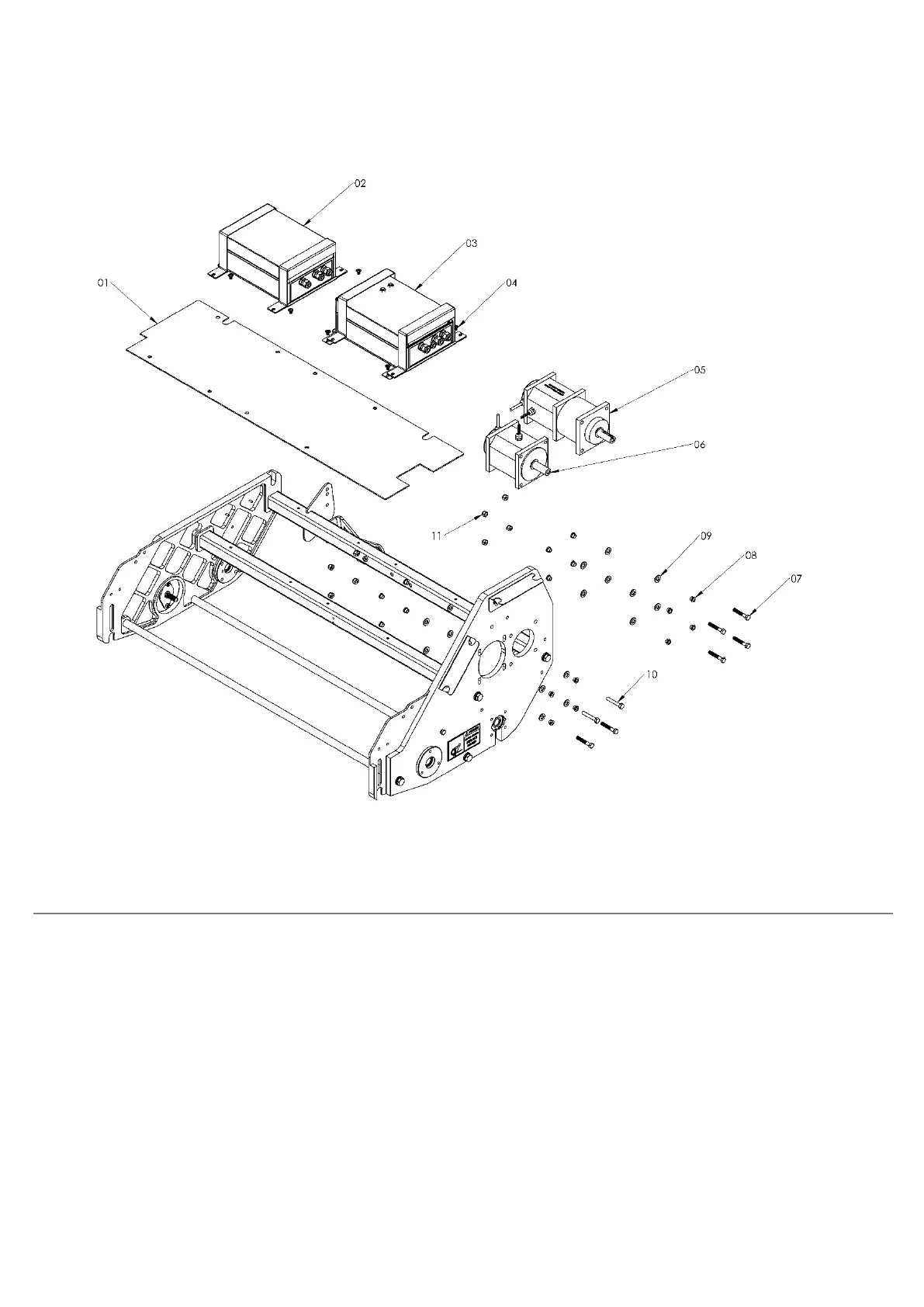

MAIN CONTROL AND DRIVE ASSEMBLY
Figure 12
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
DECK BASE LION
C1788
1
02
ROLLER CONTROL BOX ASSY
C115
1
03
CYLINDER CONTROL BOX ASSY
C116
1
04
M6x20 SOCKET DOME FLANGE SCREW
M6X20_SDF
8
05
ROLLER GPE G'BOX 400RPM 112 MOTOR
AM81652
1
06
CYLINDER GPE 2400RPM 112 MOTOR
AM81651
1
07
SET SCREW M8x45
SM845
6
08
TOP HAT INSULATOR
C1756
16
09
M10 FORM A WASHER
WM10 FORM A
16
10
SET SCREW M8x50
SM850
2
11
NUT M8 NYLOC
NNM8
8
