Gas Requirements
Part No. 70458101ENR7
©
Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 47
Model Hertz
Date
Range Part No.
120 60 Through
2/14/11
M4577P3
120 60 Starting
2/15/11
M4578P3
120 50 Through
2/14/11
M4973P3
120 50 Starting
2/15/11
M4975P3
170 60 - M4592P3
170 50 - M4974P3
200 50 and 60 - 44257701
CE GASES refer to Installing CE Gas Drying Tumble Dryers
section, the above data does not apply to the CE.
Turn on gas and check all pipe connections (internal and
external) for gas leaks with a non-corrosive leak detection fluid.
Purge air in gas service line by operating the tumble dryers in
the drying mode. If burner does not light and unit goes into
lockout, open and close the door and restart. Repeat these steps
until burner ignites. Use pipe compound, resistant to actions of
L.P. gas, on all pipe threads.
WARNING
Check all pipe connections, internal and external,
for gas leaks using a non-corrosive leak detection
fluid. To reduce the risk of explosion or fire, DO
NOT USE AN OPEN FLAME TO CHECK FOR GAS
LEAKS! Gas connections should be checked twice
a year for leakage.
W635
1

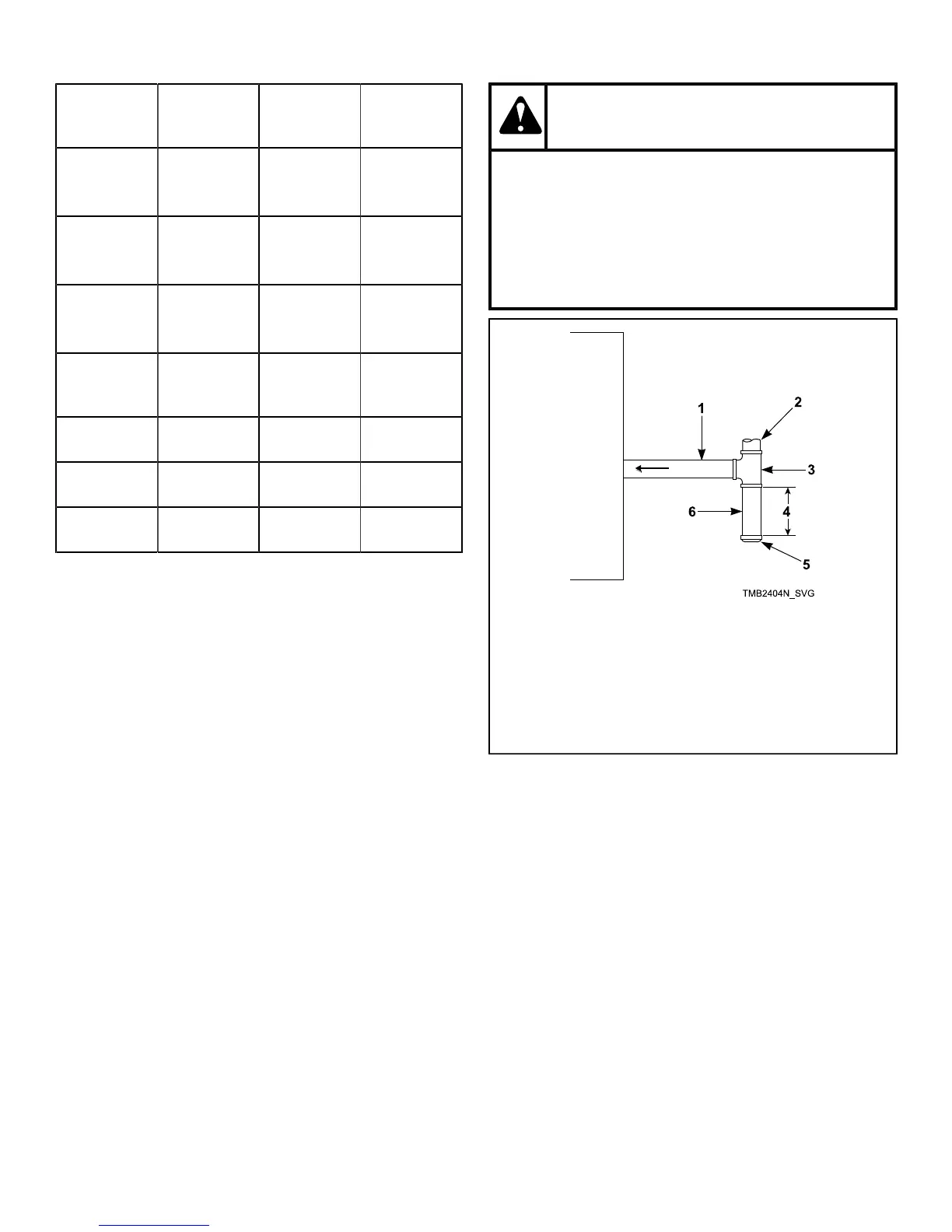

Gas Line to Tumble Dryer
2
Gas Supply Piping System
3
Gas "T" Fitting
4
3 in. (76 mm) Minimum Gas Pipe
5
Gas Pipe Cap
6
Sediment Trap
Figure 15
To Next Page
