Specifications and Dimensions
22
©
Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7

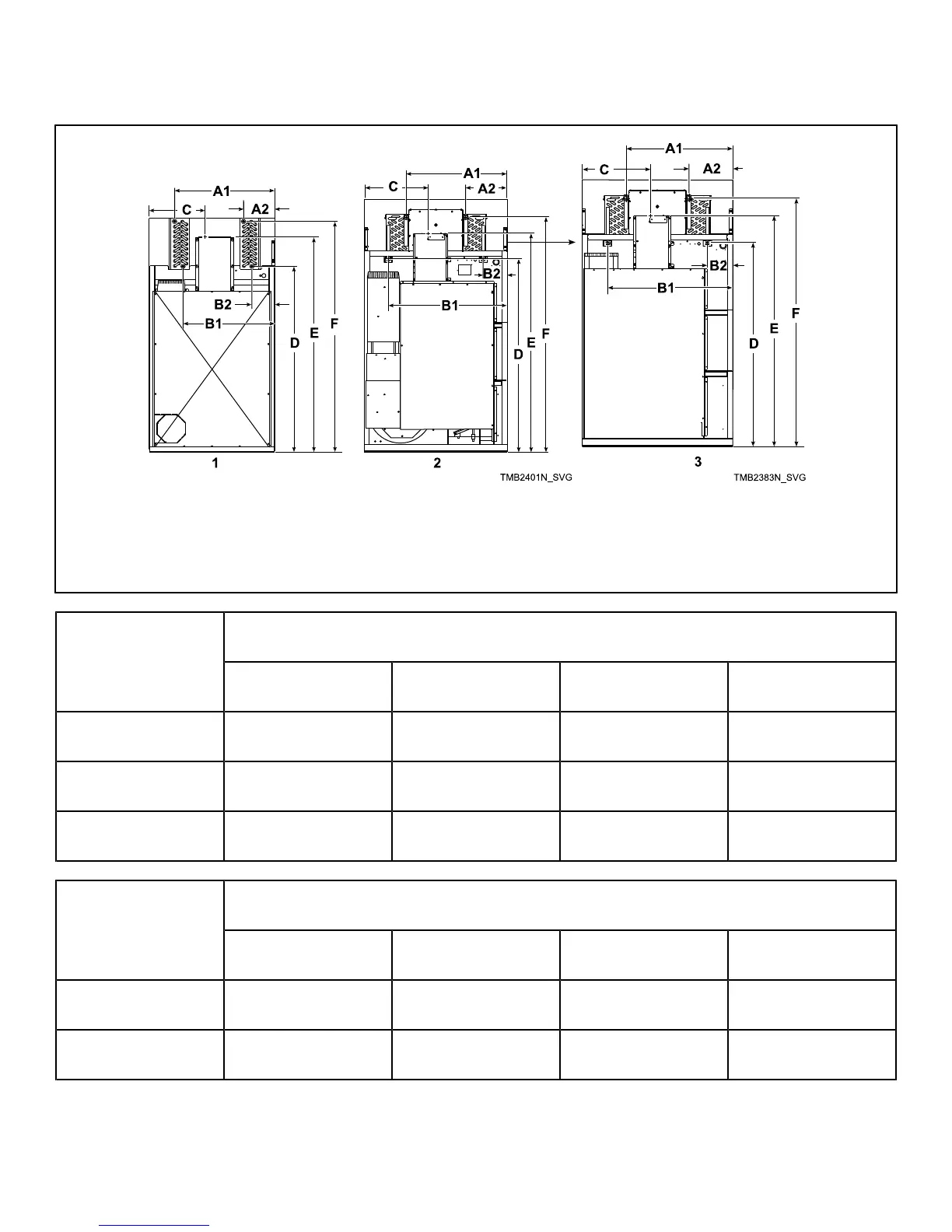

Electric and Steam Connection Locations for Steam Models Through 3/10/13
TMB2401NTMB2383N
1
120S
2
170S
3
200S
Steam Inlet
Models Diameter A1 A2 F
120S 3/4 in. NPT 35.875 in. (911 mm) 13.375 in. (340 mm) 82.75 in. (2,102 mm)
170S 3/4 in. NPT 37.625 in. (956 mm) 15.25 in. (387 mm) 88 in. (2,235 mm)
200S 3/4 in. NPT 37.625 in. (956 mm) 15.25 in. (387 mm) 88 in. (2,235 mm)
Steam Outlet
Models Diameter B1 B2 D
120S 3/4 in. NPT 34.625 in. (879 mm) 13.125 in. (333 mm) 68.5 in. (1,740 mm)
170S 1 in. NPT 44.625 in. (1,133 mm) 8.75 in. (222 mm) 71.75 in. (1,822 mm)
