Electrical Requirements
Part No. 70458101ENR7
©
Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 55
1
Earth/Ground
2
Junction Box
3
Terminal Block
4
Power Disconnect (Models Through 7/31/11)
5
Electrical Service

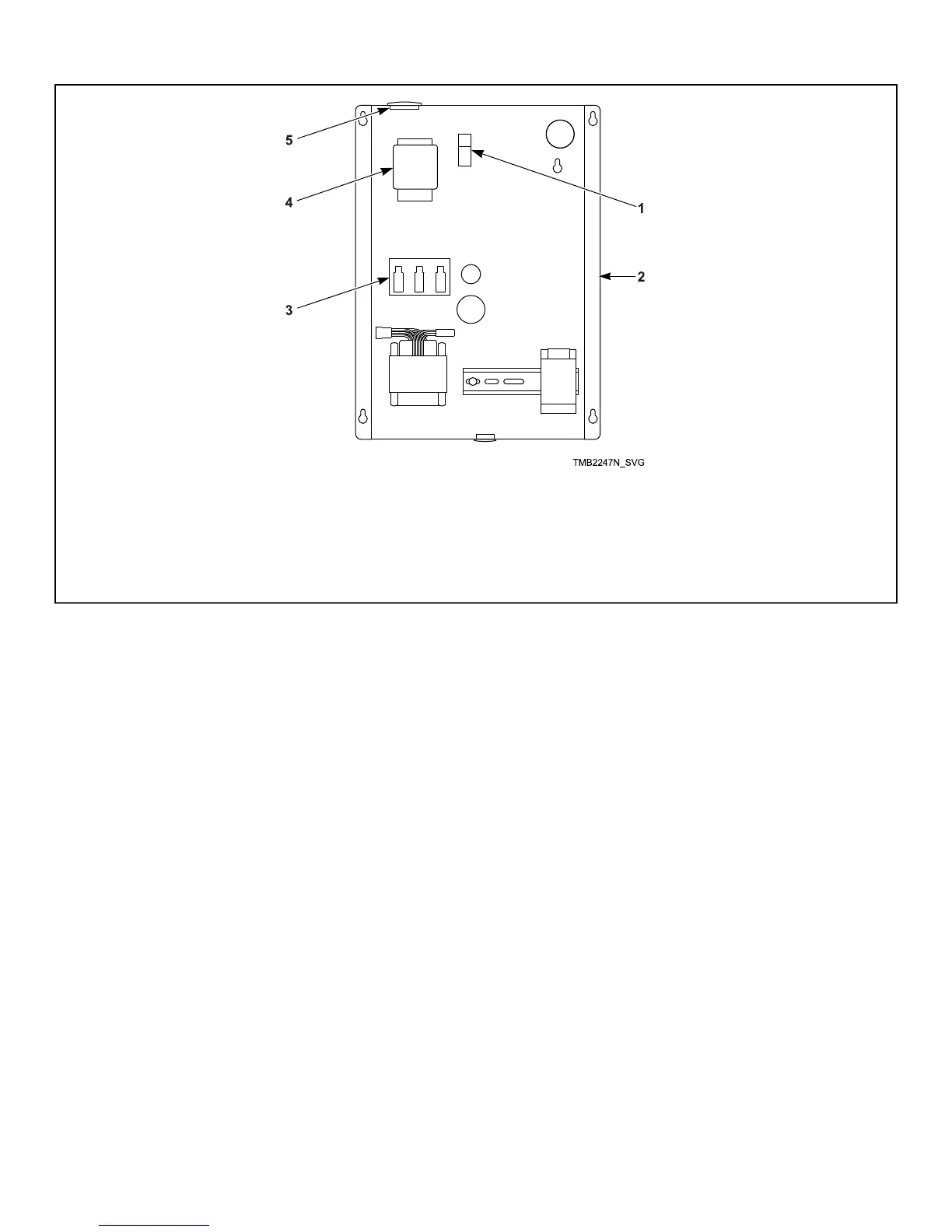

Figure 18 Ground and Terminal Block Locations for CE Gas and Steam Models
