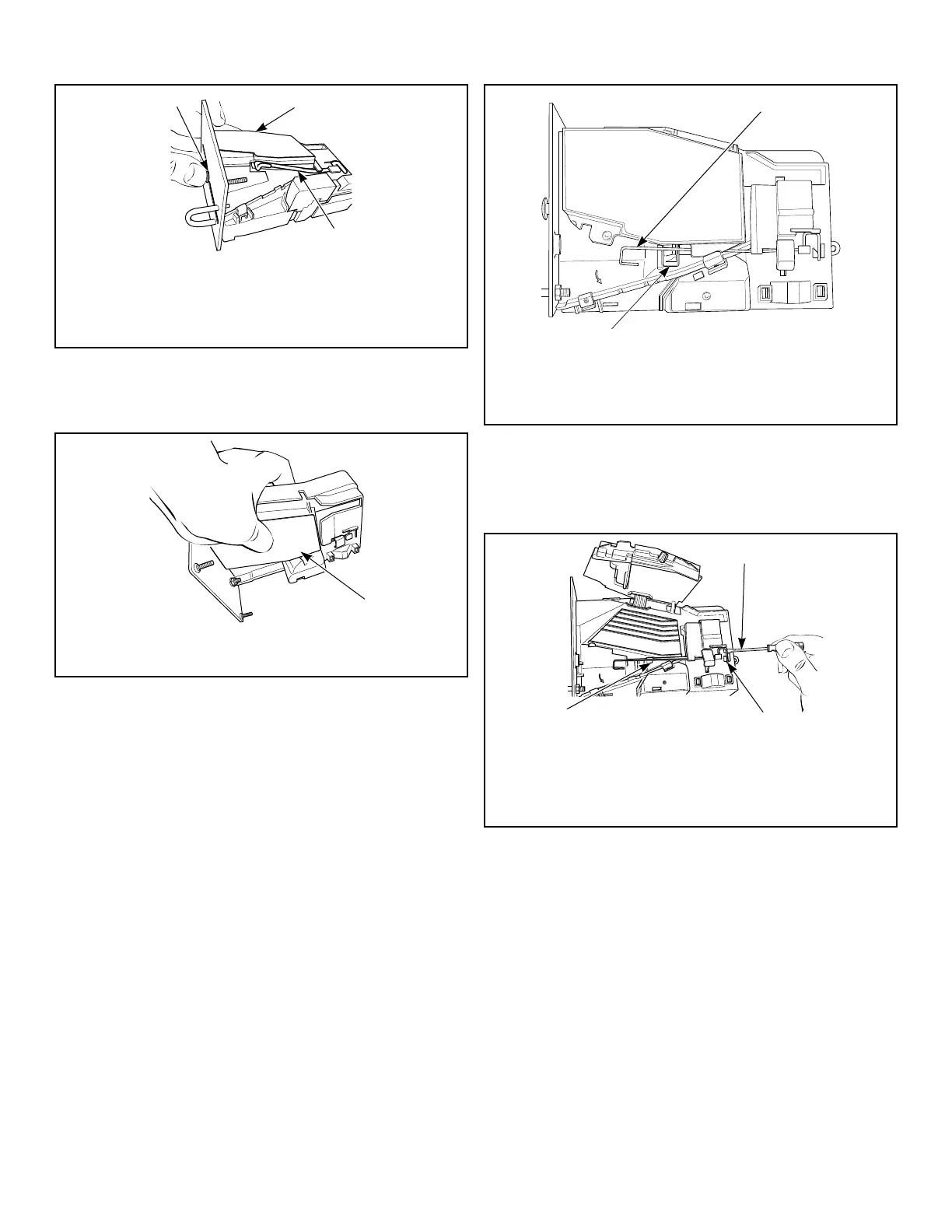

1. Coin Return Button
2. Coin Drop Cover
3. Tension Spring
Figure 3
2. Manually hold down coin drop cover and insert coin. Refer to
Figure 4 .
1. Coin Drop Cover
Figure 4
3. If coin drop now operates properly, replace tension spring us-
ing instructions on following pages.
Replace Tension Spring
1. Move tension spring downward until cover catch is free. Re-
fer to Figure 5 .
1. Tension Spring
2. Cover Catch
Figure 5
2. Open cover for coin drop.
3. Place a small flathead screwdriver under right side of tension
spring and lift up. Refer to Figure 6 .
1. Left Tab
2. Small Flathed Screwdriver
3. Right Side of Tension Spring
Figure 6
4. Use screwdriver to move spring approximately 3 mm to left.
5. Lift spring over left tab. Refer to Figure 6 .
6. Rotate spring clockwise, 40 to 60 degrees, until it is free from
right tabs. Refer to Figure 7 .
Coin Drop Troubleshooting
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
51 Part No. D515519R3
