1. Center Tab
2. Tabs
Figure 7

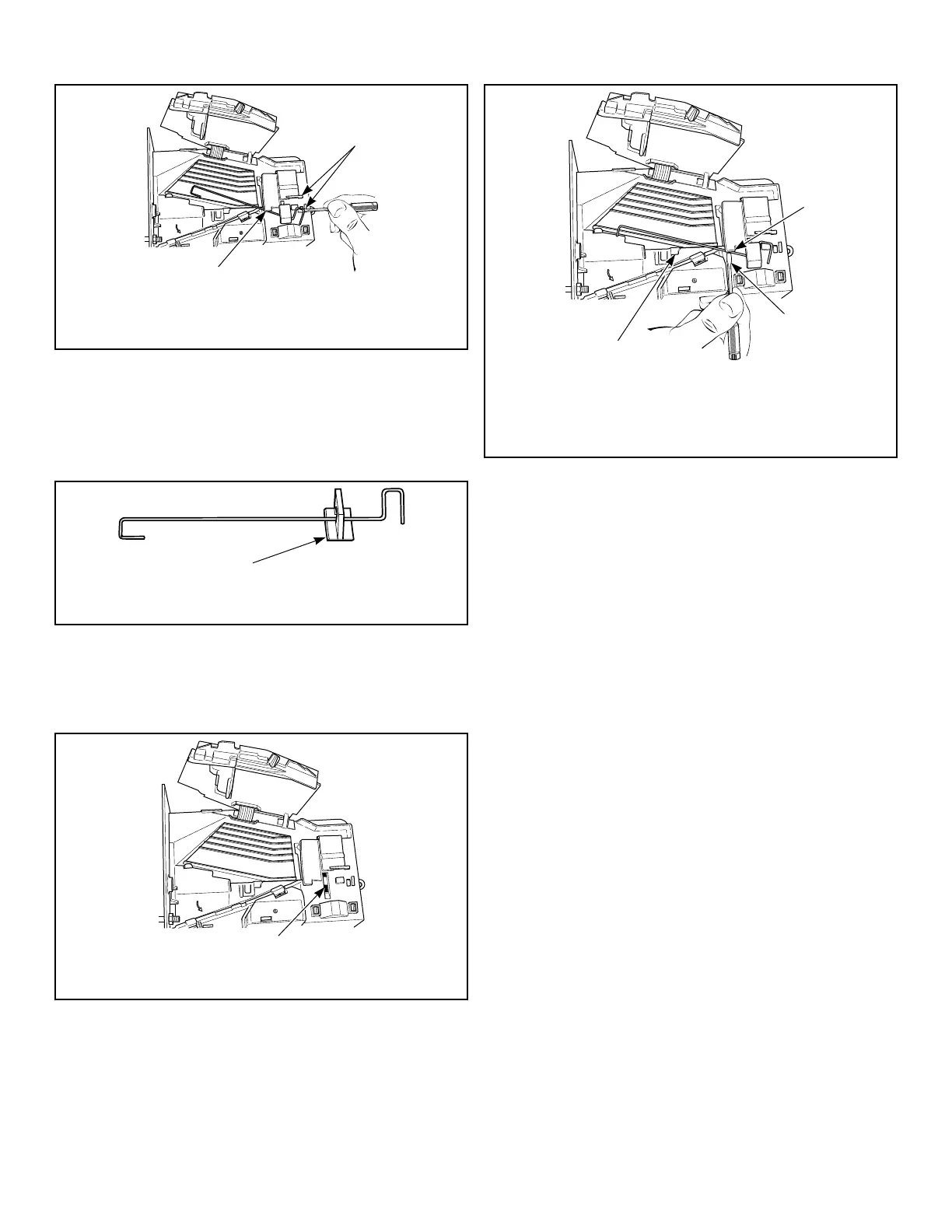

7. Use screwdriver to remove spring from center tab. Refer to
Figure 7 .
8. Lift spring, with attached clip, off drop.
9. Remove clip from spring. Refer to Figure 8 .
1. Clip
Figure 8
10. Attach clip to new tension spring, Part No. 209/00598/02.
11. Place clip, installed on spring, in slot on coin drop. Refer to
Figure 9 .
1. Slot
Figure 9
12. Use a small flathead screwdriver to push spring under center
tab. Refer to Figure 10 .
1. Left Tab
2. Center Tab
3. Small Flat Screwdriver
Figure 10
13. Lift spring gently to place in position under left tab.
14. Push spring to right until it snaps into position. Refer to Fig-
ure 6 .
15. Close coin drop cover.
16. Move tension spring over cover catch. Refer to Figure 5 .
Reinstall Coin Drop Into Machine
1. Reinstall coin drop into machine.
2. Reconnect electrical power to machine and drop.
3. Add a coin to drop to verify that coin drop is operating prop-
erly and that electrical connection is working properly.
