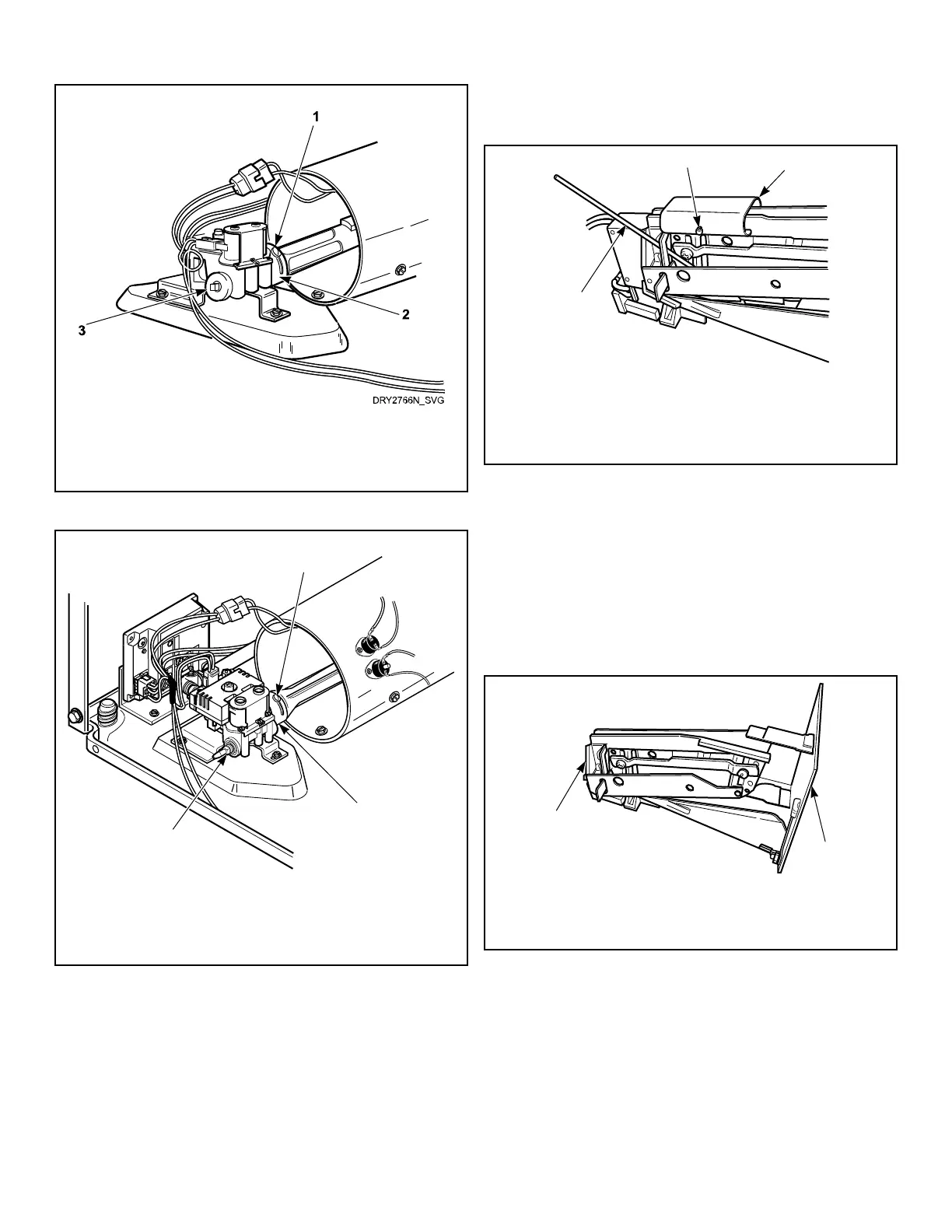

Silicon Carbide Ignition System
1. Air Shutter Lockscrew
2. Air Shutter
3. 1/8 inch Pipe Plug (For checking manifold pressure)
Figure 22
Silicon Nitride Ignition System
1. Air Shutter Lockscrew
2. Air Shutter
3. 1/8 inch Pipe Plug (For checking manifold pressure)
Figure 23
Cleaning Non-Electronic Coin Drop
1. Disconnect electrical power to machine and drop.
2. Remove coin drop from machine.
3. If lint is preventing coins from rolling through coin drop,
blow compressed air though coin entry and along the side of
the coin drop. Refer to Figure 24 .
1. Compressed Air
2. Cotter Pin
3. Metal Clip
Figure 24
4. Insert a coin through the coin drop. If coin does not roll
through drop, continue with the following.
5. Remove cotter pin from top of drop. Refer to Figure 24 . Save
pin for reinstallation when cleaning is complete.
6. Move metal clip closer to sensor so that it comes off frame.
Refer to Figure 24 .
7. Remove coin return from coin drop frame. Refer to Figure
25 .
1. Coin Return
2. Coin Drop Frame
Figure 25
8. Check coin path in coin drop for lint and esidue. If lint or
light residues are present, use a cotton swab to remove. If
heavy residue is present, it may be necessary to first scrape
off excessive residue and then use a cotton swab dipped in
water or isopropyl alcohol (rubbing alcohol) to remove re-
mainder of residue. Refer to Figure 26 .
Adjustments
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
66 Part No. D515519R3
