Chapter 2: Installing the Gateway

AT-iMG2400 Series Installation Guide 22

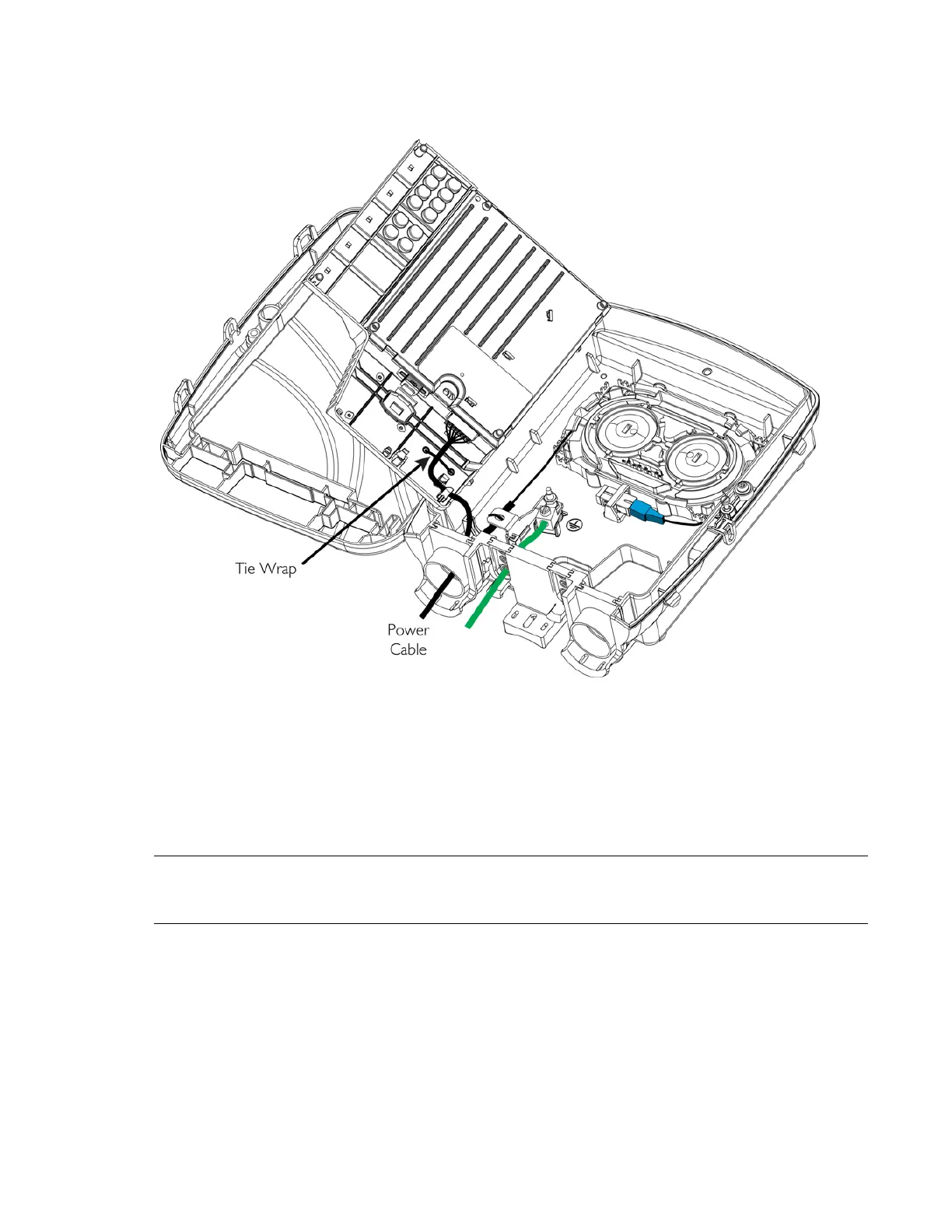

Figure 9: Plugging in the DC Terminal Block

Route the Fiber Jumper Cable

Connect the fiber jumper cable (from the “Electronics In” side of the SC fiber coupler) to the WAN fiber

port of the electronics unit. Use the guides to ensure there are no crimps in the cable. Refer to Figure 10.

Note

Ensure the fiber does not become pinched between the bottom of the electronics unit and the splice

tray.
