Chapter 2: Installing the Gateway
AT-iMG2400 Series Installation Guide 18
Option 2: Grounded UPS
A grounded UPS (AT-iMG008G/AT-iMG008GNB) can be installed with the unit. The ground contact of the
AC receptacle that the iMG008G is plugged into must be verified to have a connection through the building
AC wiring system to the BPG.
This is acceptable only if required by local codes.
Wire from the UPS to the iMG must be kept short in this topology. Recommended max distance is 30
feet (9 m).

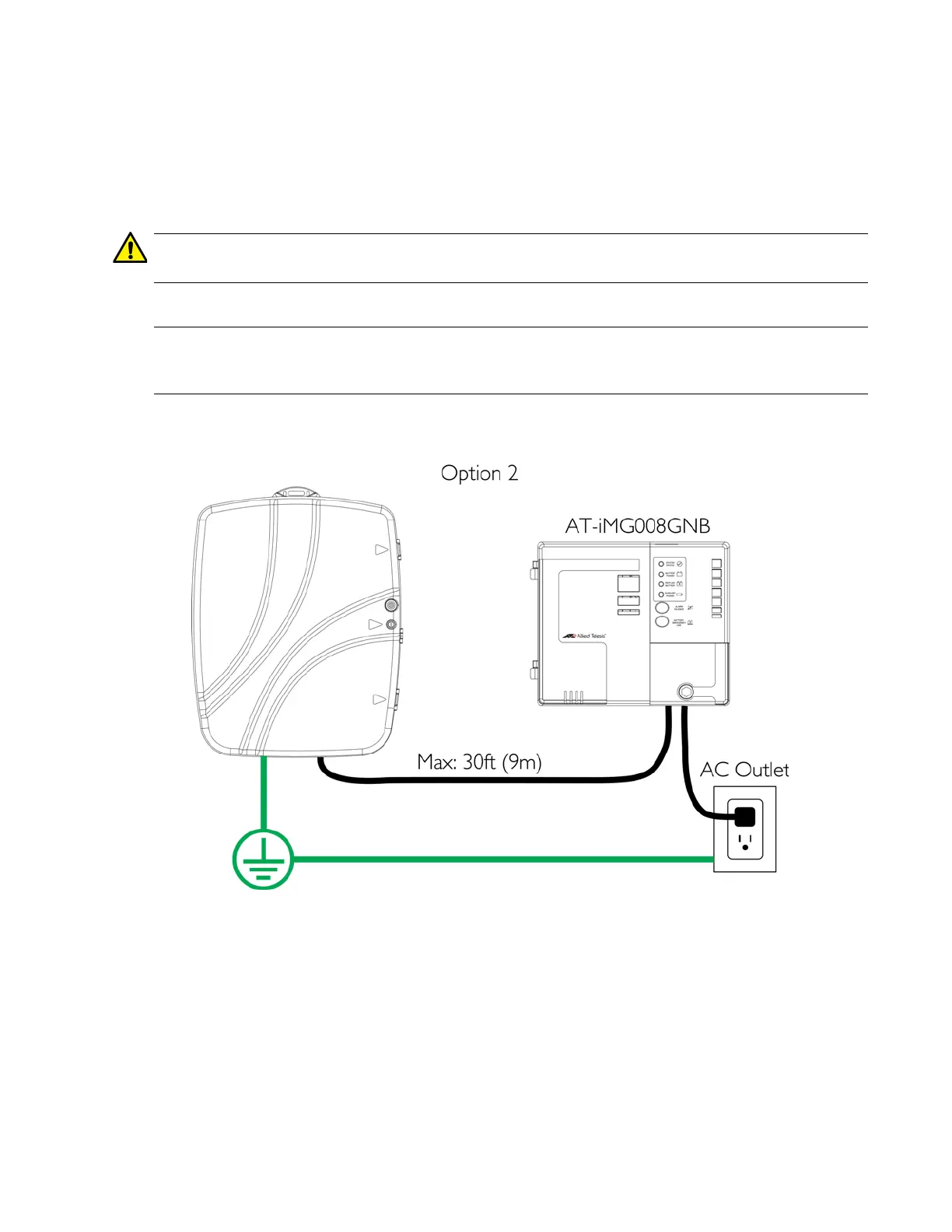

Figure 5: Grounded UPS Configuration
Step 4: Install the Electronics Unit into the Enclosure
Note Connection Placement
Figure 6 shows the connections for the power, grounding, and WAN interface.
