AT-S63 Management Software Features Guide
Section VI: Virtual LANs 277
In the example, each VLAN has one port connected to the router. The
router interconnects the various VLANs and functions as a gateway to the
WAN.
Port-based
Example 2

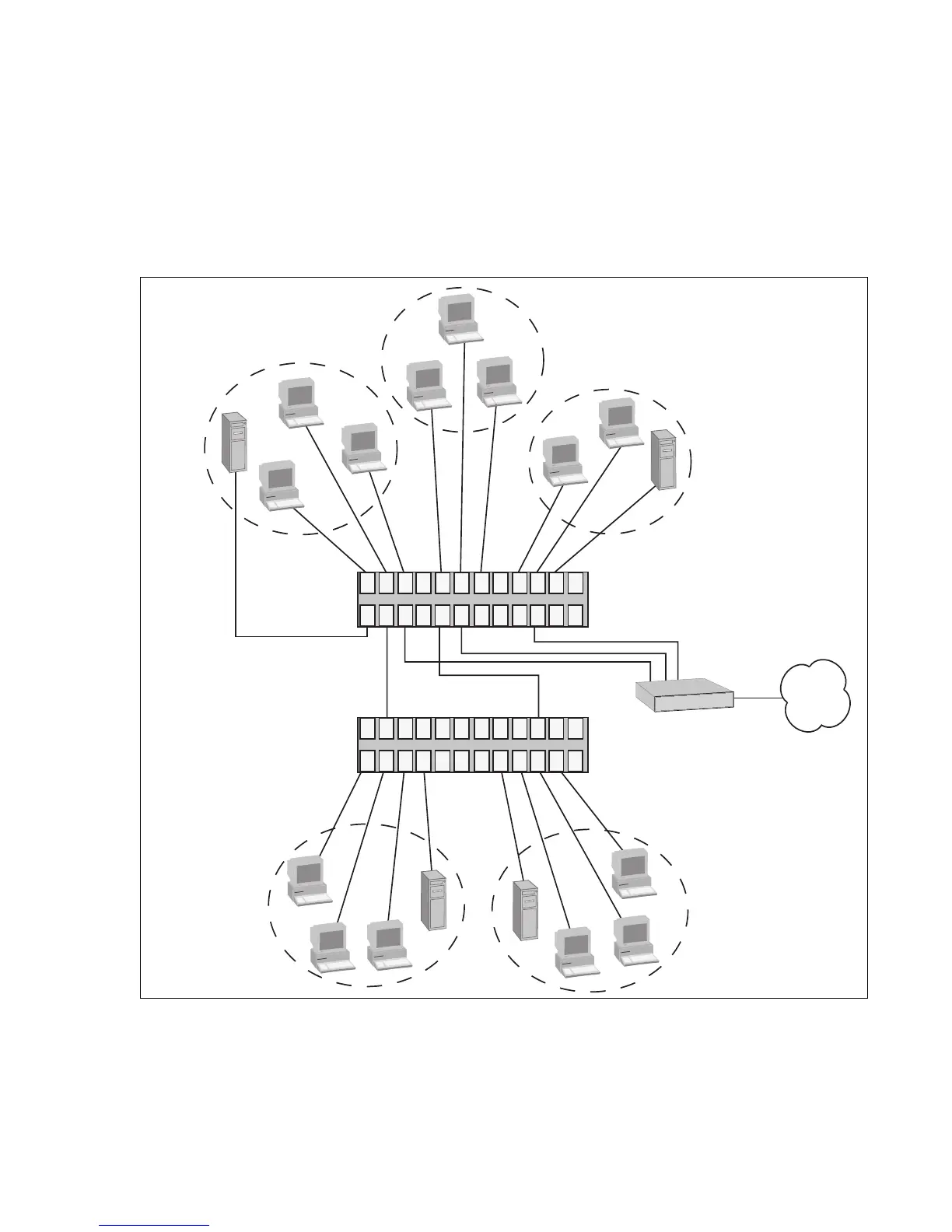

Figure 34 illustrates more port-based VLANs. In this example, two VLANs,
Sales and Engineering, span two AT-9400 Switches Gigabit Ethernet
switches.
Figure 34. Port-based VLAN - Example 2
WAN
2
3
4
5
6
79 1912123171511
13
8 10 12 14 18 20 22 2416
2
3
4
5
6
79 1912123171511
13
8 10 12 14 18 20 22 2416
Router
Sales VLAN
(VID 2)
Engineering VLAN
(VID 3)
Production VLAN
(VID 4)
Engineering VLAN
(VID 3)
Sales VLAN
(VID 2)
AT-9424T/SP Gigabit Ethernet Switch
AT-9424T/GB Gigabit Ethernet Switch
