508067-01Issue 2016Page 44 of 75

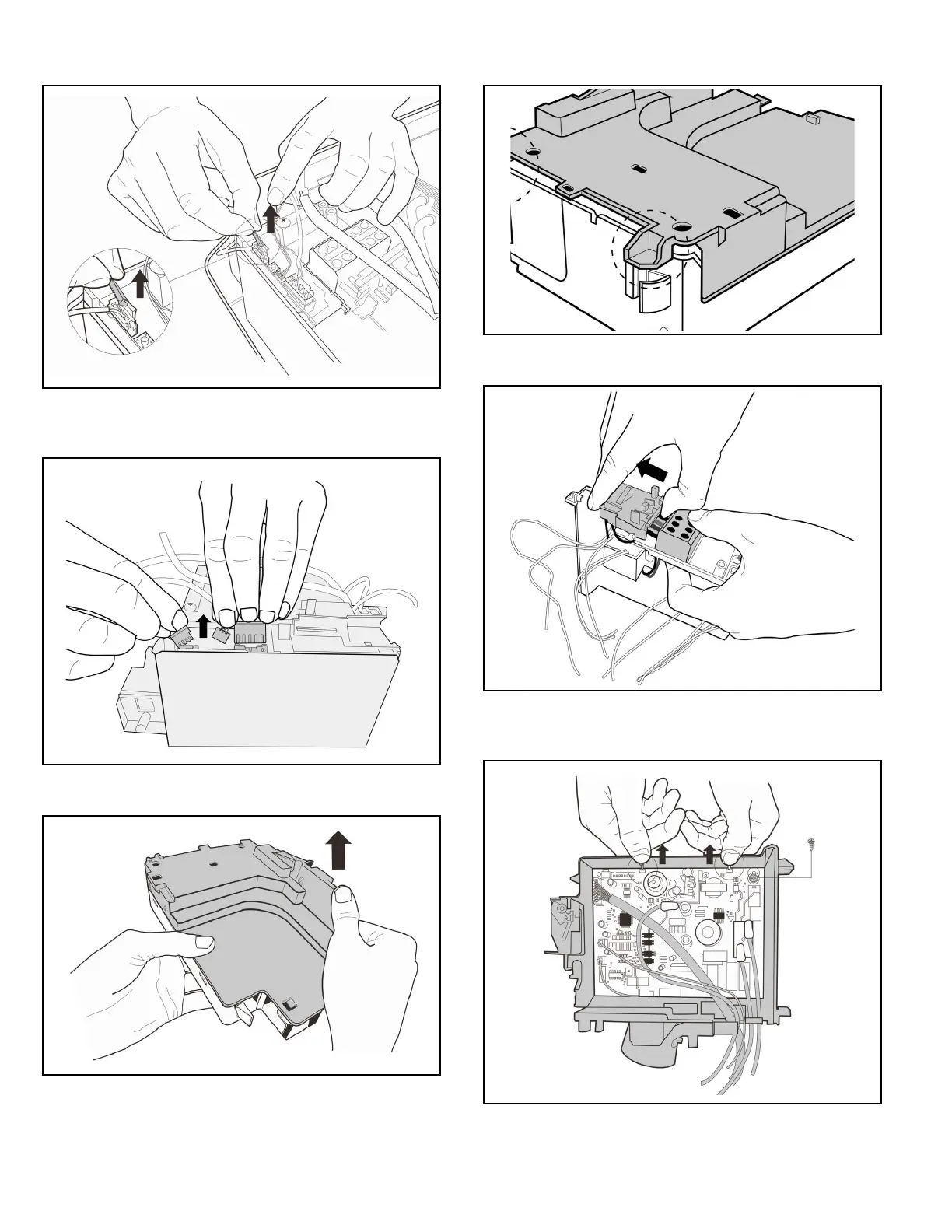

4. Remove the xed devices of the connectors.
5. Disconnect the connectors of fan motor, the step motor
and the T2 sensor.
6. Open the left side plate of electronic control box.
7. Open the two clips on the front of the electric box.
8. Open the upper cover plate of electronic control box.
9. Remove 1 screw and open the 2 clips along the
direction indicated in image below.
