Allied 4DHV Mini-Split Series - Outdoor Unit Disassembly; Panel Plates Removal (4 DHV1 S24 S)

508067-01Issue 2016Page 48 of 75

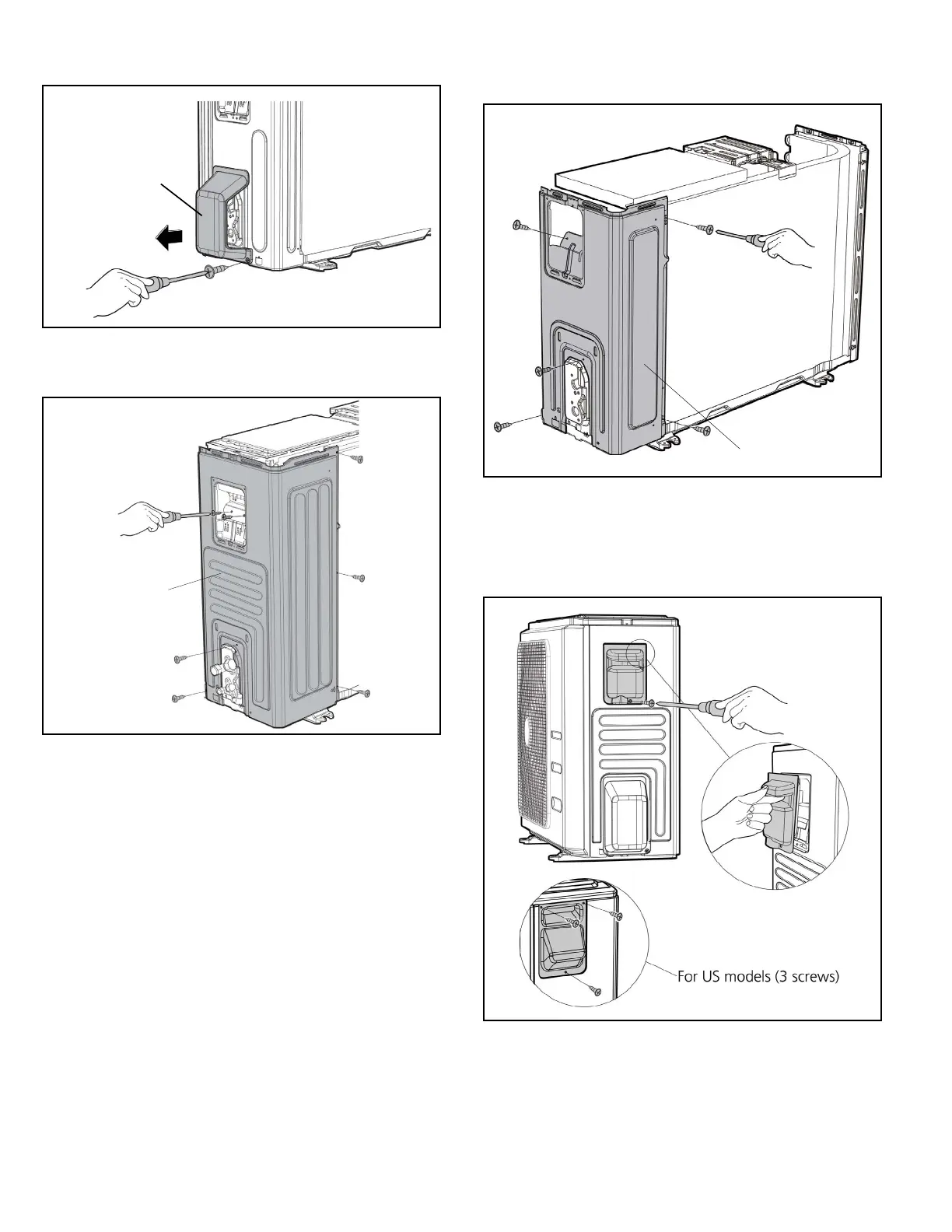

5. Remove the screw from the water collector cover.
Water Collection Cover
6. Remove the screws on the rear coil guard and then
remove the coil guard.
Front Cover
7. Remove the screws from the right panel and then
remove panel.
Right Panel
Panel Plate (4DHV1S24S)
1. Turn o󰀨 the air conditioner and the power breaker.
2. Remove the screws that secure the handle and then
remove the handle.
