2. Pull up the drain hose to remove it.
Outdoor Unit

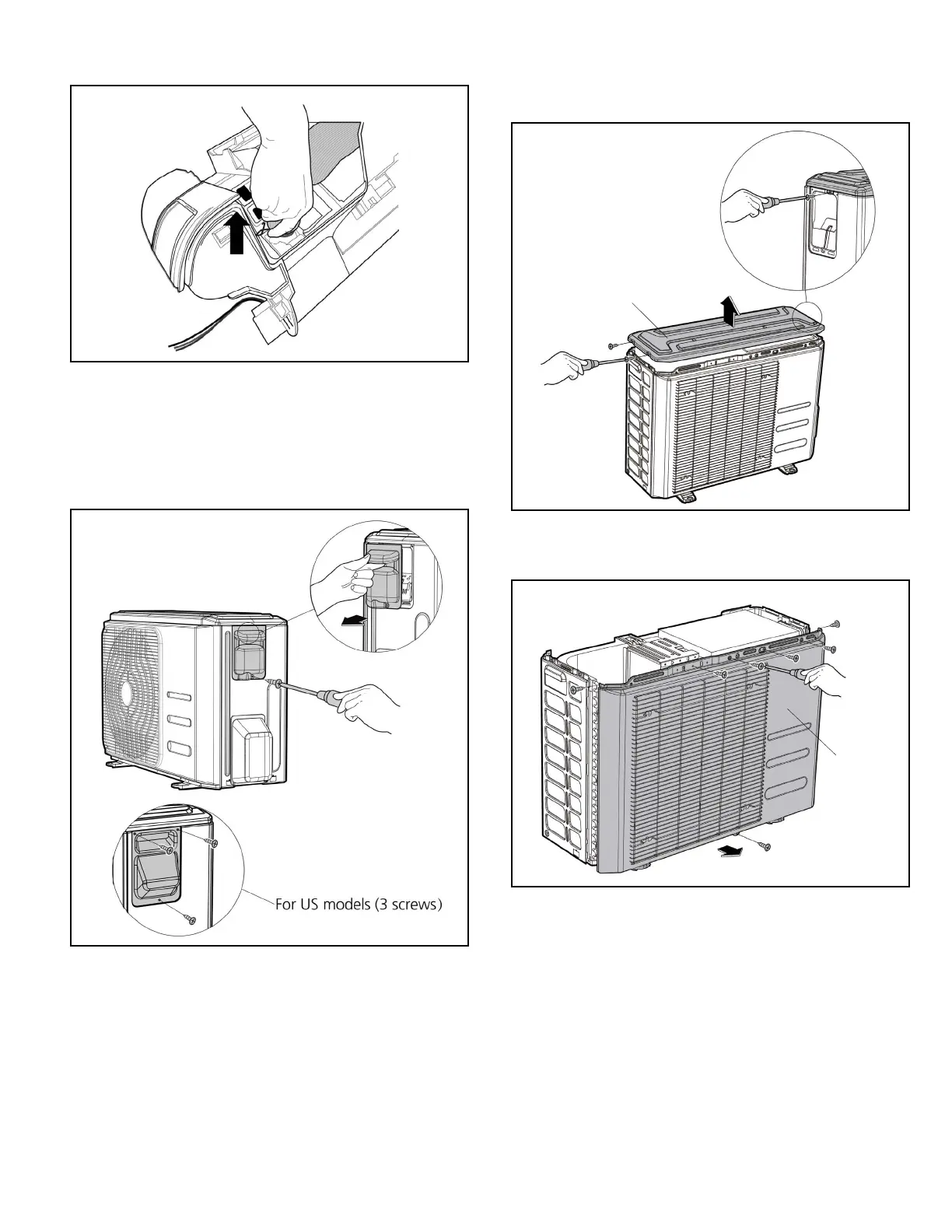

Panel Plate (4DHV1S09S, 4DHV1S12S and 4DHV1S18S)
1. Turn o the air conditioner and the power breaker.
2. Remove the screw of the big handle and then remove
the handle.
3. Remove the screws of the top cover and then remove
top cover. One of the screws is located underneath the
big handle.
4. Remove the screws of the front panel and then remove
the front panel.
To Next Page
