Allied 4DHV Mini-Split Series - Indoor Unit Disassembly; Fan Motor and Step Motor Removal

508067-01Issue 2016Page 46 of 75

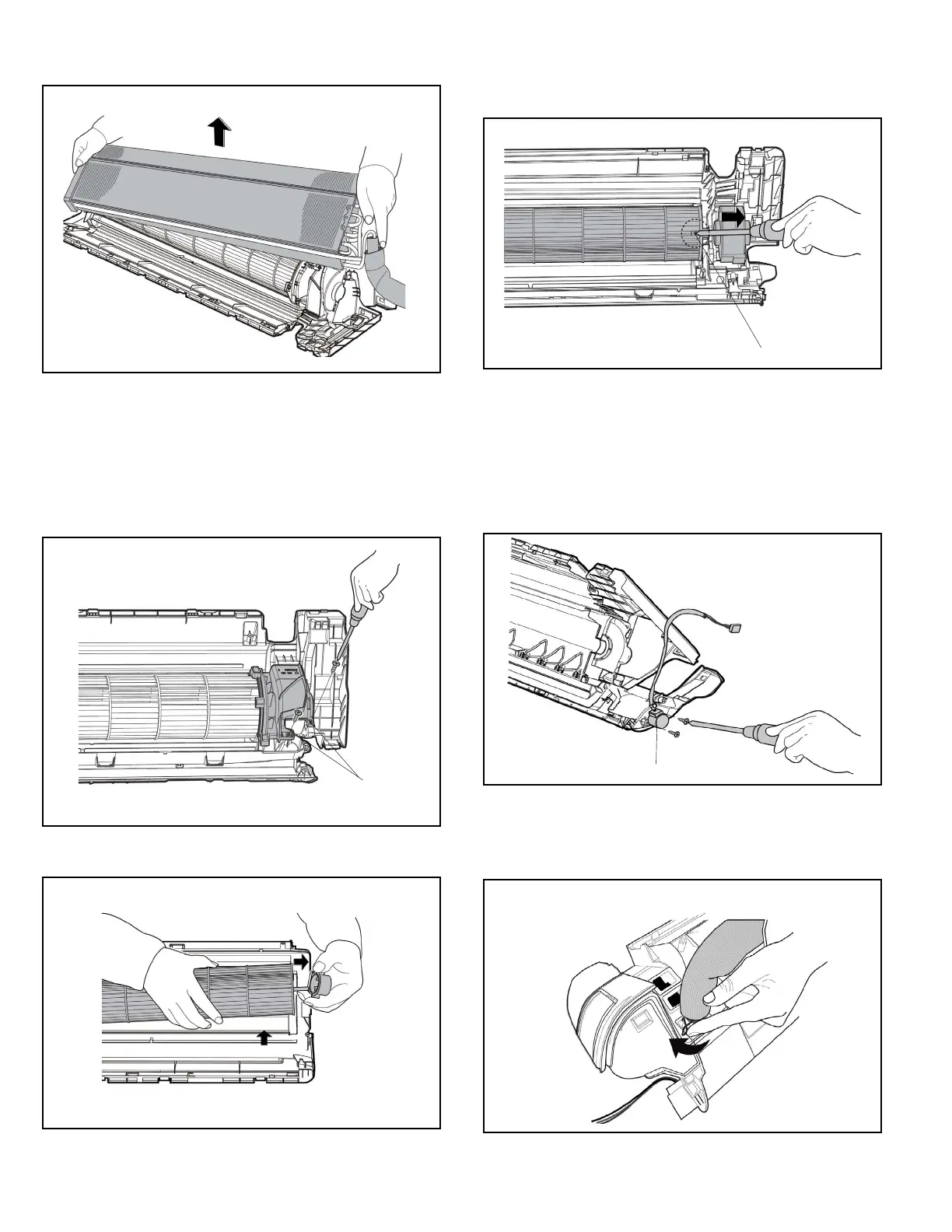

5. Pull out the evaporator.
Fan Motor and Fan
NOTE: Remove the front panel and electrical parts before
disassembling fan motor and fan (see both “Front Panel”
on page 41 and “Electrical Parts” on page 43).
1. Remove the two screws and remove the xing board
of the fan motor.
Screws
2. Remove the bearing sleeve.
3. Remove the xing screw.
4. Pull out the fan motor and fan assembly from the side.
Fixing Screw
Step Motor
NOTE: Remove the front panel and electrical parts before
disassembling step motor (see both “Front Panel” on page
41 and “Electrical Parts” on page 43).
1. Remove the two screws, then remove the stepping
motor.
Stepping Motor
Drain Hose
1. Rotate the xed wire clockwise indicated in imagine
below.
