508067-01 Issue 2016 Page 57 of 75

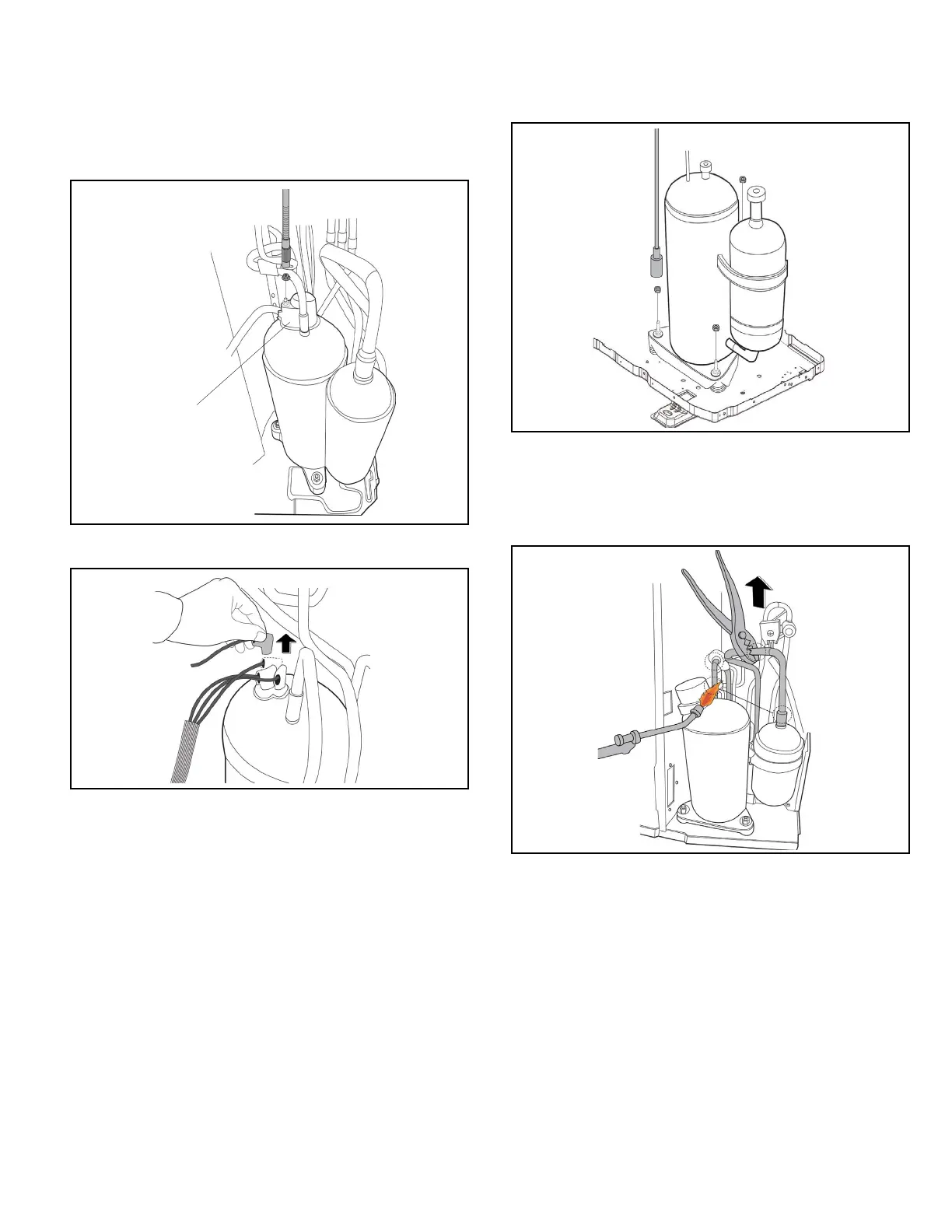

Compressor
NOTE: Recover refrigerant before removing the
compressor.
1. Remove the ange nut of the terminal cover and
remove the cover.
2. Disconnect all connectors.
3. Remove the hex nuts and washers which are located
on the bottom of the plate which are securing the
compressor.
4. Heat up the brazed parts and then remove the
discharge and suctions pipes.
5. Lift the compressor from the base pan assembly with
pliers.
To Next Page
