Allied 4DHV Mini-Split Series - Outdoor Unit Disassembly; Four-Way Valve Disassembly

508067-01Issue 2016Page 56 of 75

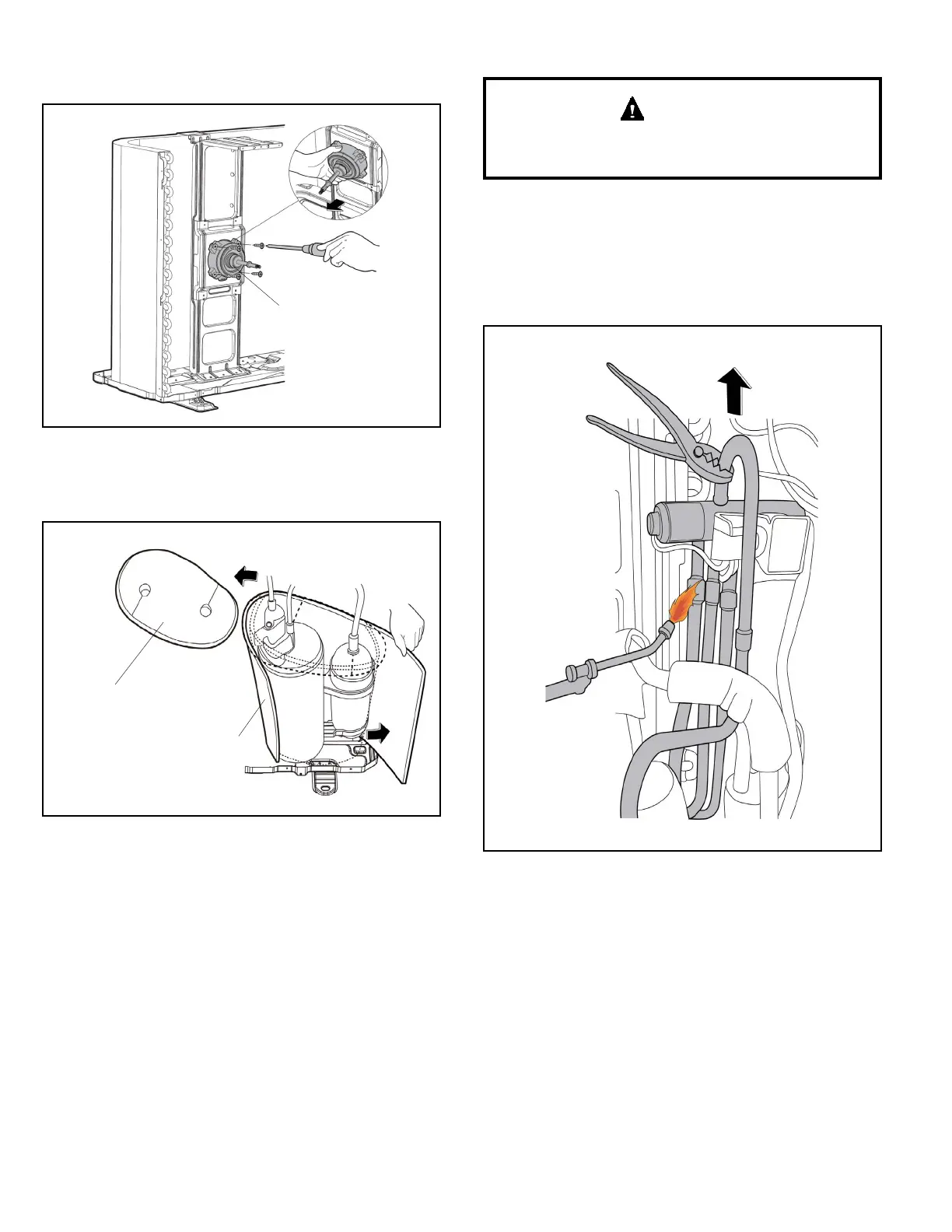

4. Remove the screws securing the fan motor from body.
Remove the fan.
Fan Motor
Sound Blanket
NOTE: Recover refrigerant before removing the
compressor.
Sound Blanket
Sound Blanket (side)
Four-Way Valve
Recover refrigerant from the refrigerant circuit before
remove the four-way valve.
WARNING
NOTE: Remove the panel plate, electrical parts, and fan
assembly before disassembling four-way valve.
1. Heat up the brazed parts and then detach the the four-
way valve and the pipe
2. Remove the four-way valve assembly with pliers.
