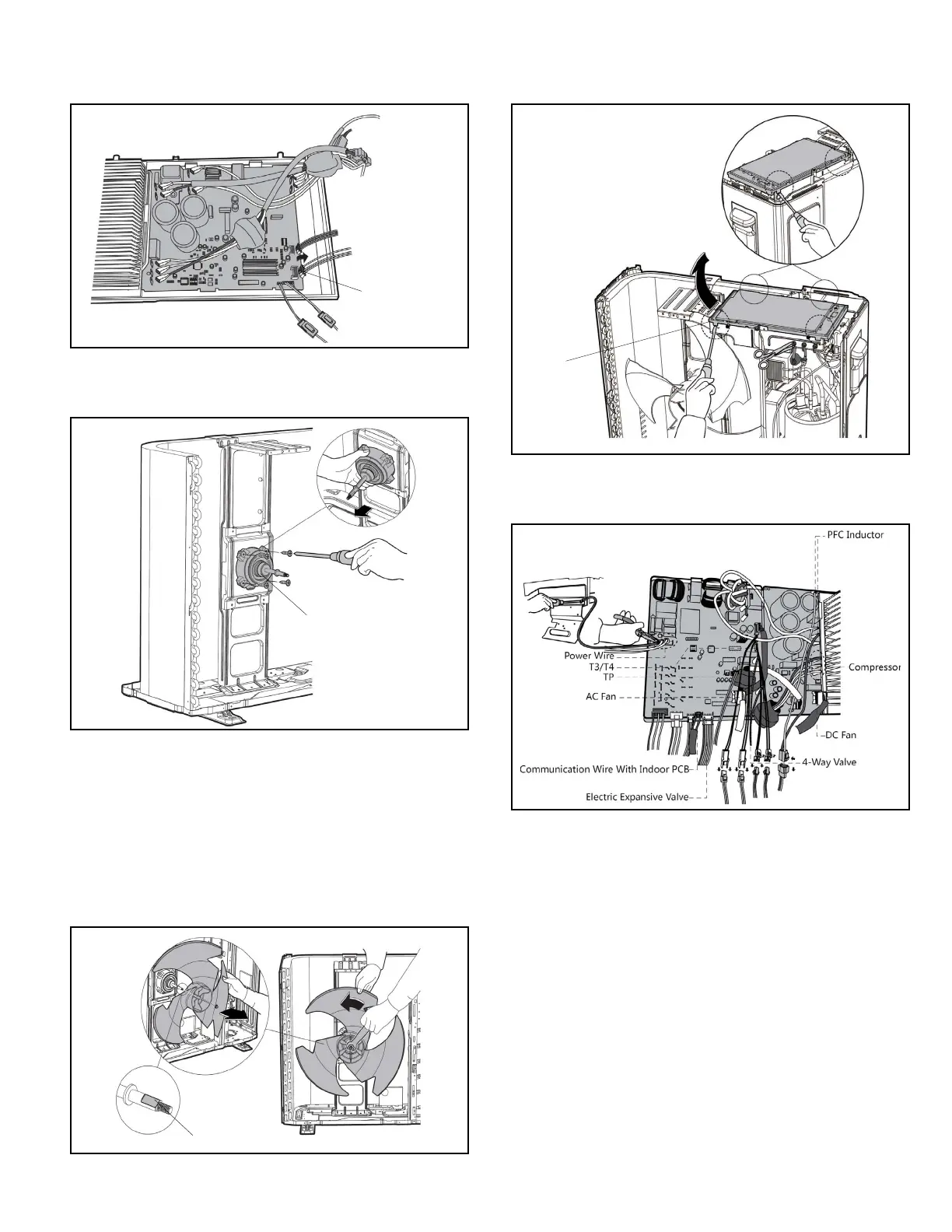

Allied 4DHV Mini-Split Series - Outdoor Unit Disassembly; Fan Disassembly (4 DHV1 S36 S)

508067-01 Issue 2016 Page 55 of 75
3. Disconnect the connector for the fan motor from the
electronic control board.
Fan Motor Connector
4. Remove the screws securing the fan motor from body.
Remove the fan.
Fan Motor
Fan Disassembly (4DHV1S36S)
NOTE: Antistatic gloves must be worn when you
disassemble the electronic box.
NOTE: Remove the panel plate before disassembling the
fan.
1. Remove the nut security the fan with a spanner. Then
remove the fan.
D Cut
2. Release the hooks and then open the electronic control
box cover.
Hook
3. Disconnect the connector for the fan motor from the
electronic control board.
