508067-01Issue 2016Page 54 of 75

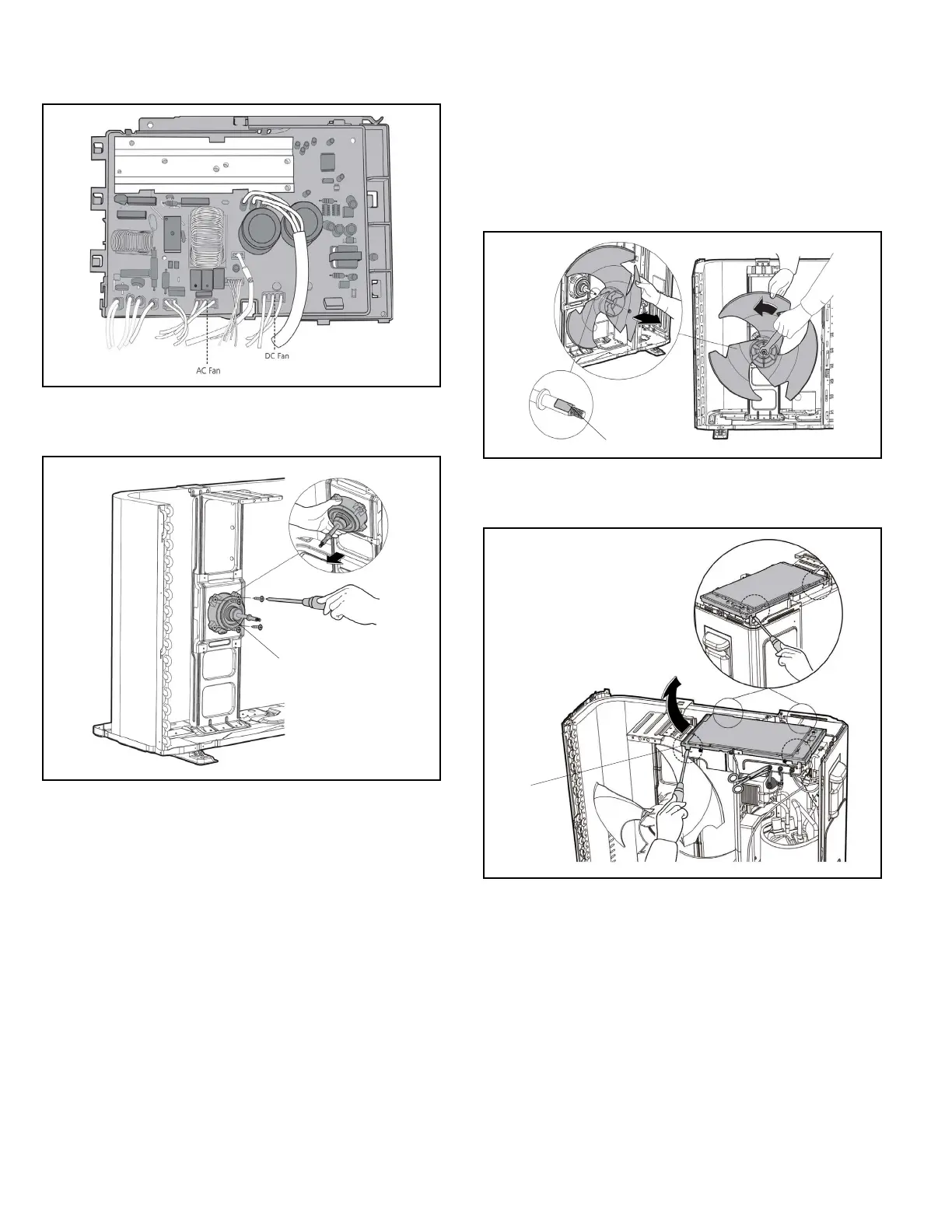

3. Disconnect connector from electronic control board
plug.
4. Remove the screws securing the fan motor to body.
Then remove fan motor.
Fan Disassembly (4DHV1S24S)
NOTE: Antistatic gloves must be worn when you
disassemble the electronic box.
NOTE: Remove the panel plate before disassembling the
fan.
1. Remove the nut security the fan with a spanner. Then
remove the fan.
2. Release the hooks and then open the electronic control
box cover.
Hook
To Next Page
