Allied 4DHV Mini-Split Series - Outdoor Unit Disassembly; Fan Disassembly (4 DHV1 S18 S)

508067-01 Issue 2016 Page 53 of 75

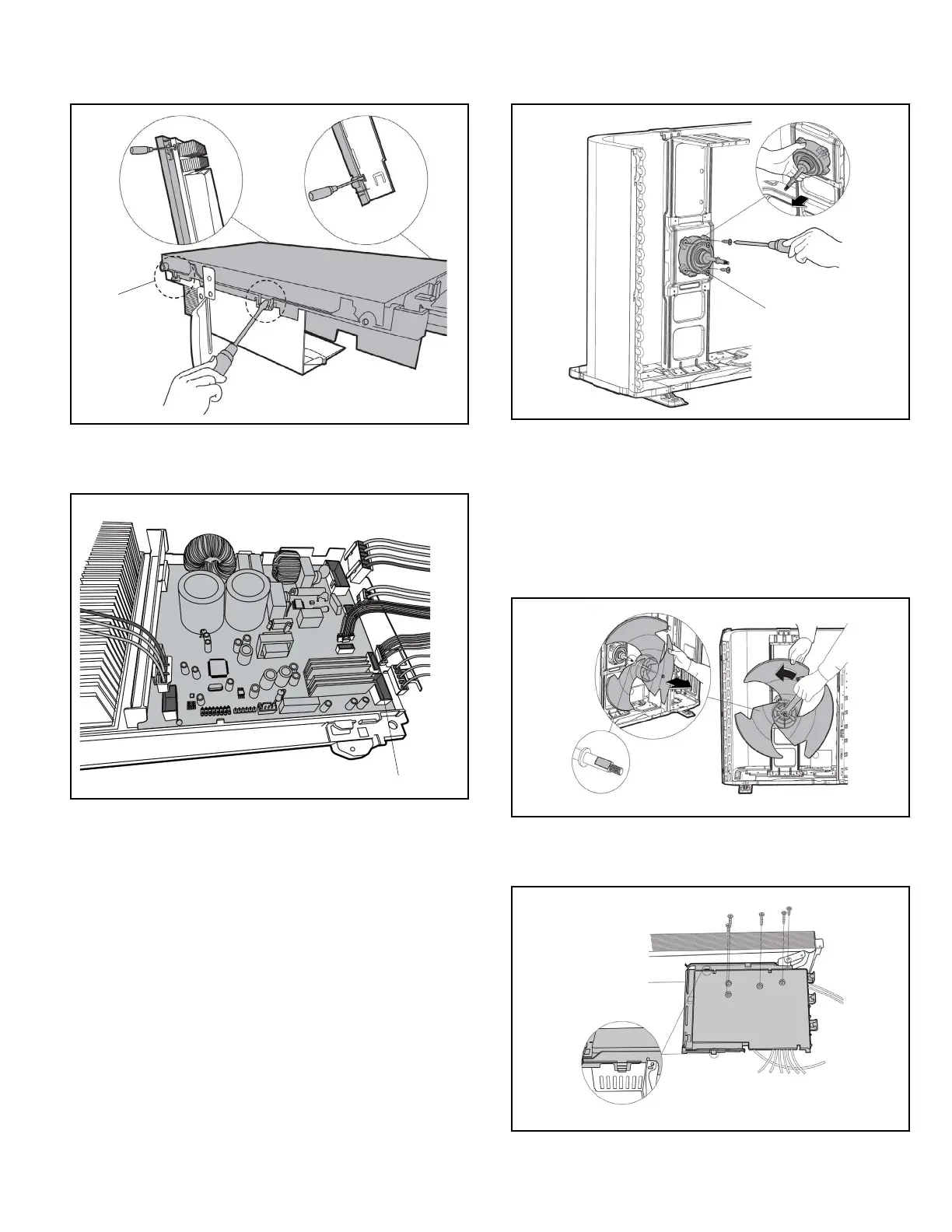

3. Release the hooks and then open the electronic control
box cover.
Hook
4. Disconnect the connector from the fan motor from the
electronic control board.
Fan Motor Connector
5. Remove the screws securing the fan motor and then
remove fan assembly.
Fan Motor
Fan Disassembly (4DHV1S18S)
NOTE: Antistatic gloves must be worn when you
disassemble the electronic box.
NOTE: Remove the panel plate before disassembling the
fan.
1. Remove the nut security the fan to the fan motor.
2. Remove the screws securing the cover of the electronic
control box cover.
