When conditions causing the code exist, the code is logged in memory. The code
stays in memory until it is manually cleared or cycled out.
When intermittently occurring codes exist, inspect, test, and correct the following
items:
• Dirty, damaged, or corroded harness connectors and terminals.
• Terminals not fully seated in connectors.
• Damaged harnesses (due to poor routing, chafing, excessive heat, tight
bends, etc.).
• Improperly mounted electronic control components.
• Poor connector seals (where applicable).
• Exposed harness wires.
• EMI generating components and accessories.
• Loose ground connections.
1
2
3
4
5
D
N
R
MODE
R
N
D
5
4
3
2
1
MODE
2
1
3
D
N
R
D
N
R
213DNR
R
N
D
MODE
R
N
D
V03496.02
SIX-SPEED, LEFT-HAND
LEVER SELECTOR
HOLD OVERRIDE BUTTON
DISPLAY MODE/
DIAGNOSTIC BUTTON
MODE ID
DIGITAL DISPLAY
✽
MODE BUTTON
MODE INDICATOR
(LED)
SIX-SPEED, RIGHT-HAND
LEVER SELECTOR
MODE ID
MODE
INDICATOR (LED)
Push simultaneously
to enter diagnostic
mode and fluid level
check (optional)
NOTE:
Number displayed is highest forward range available in selected position.
Visually check to confirm range selected. If display is flashing – shift is inhibited.
✽
DIGITAL DISPLAY
✽
STRIP PUSHBUTTON
SHIFT SELECTORS
PUSHBUTTON
SELECTOR

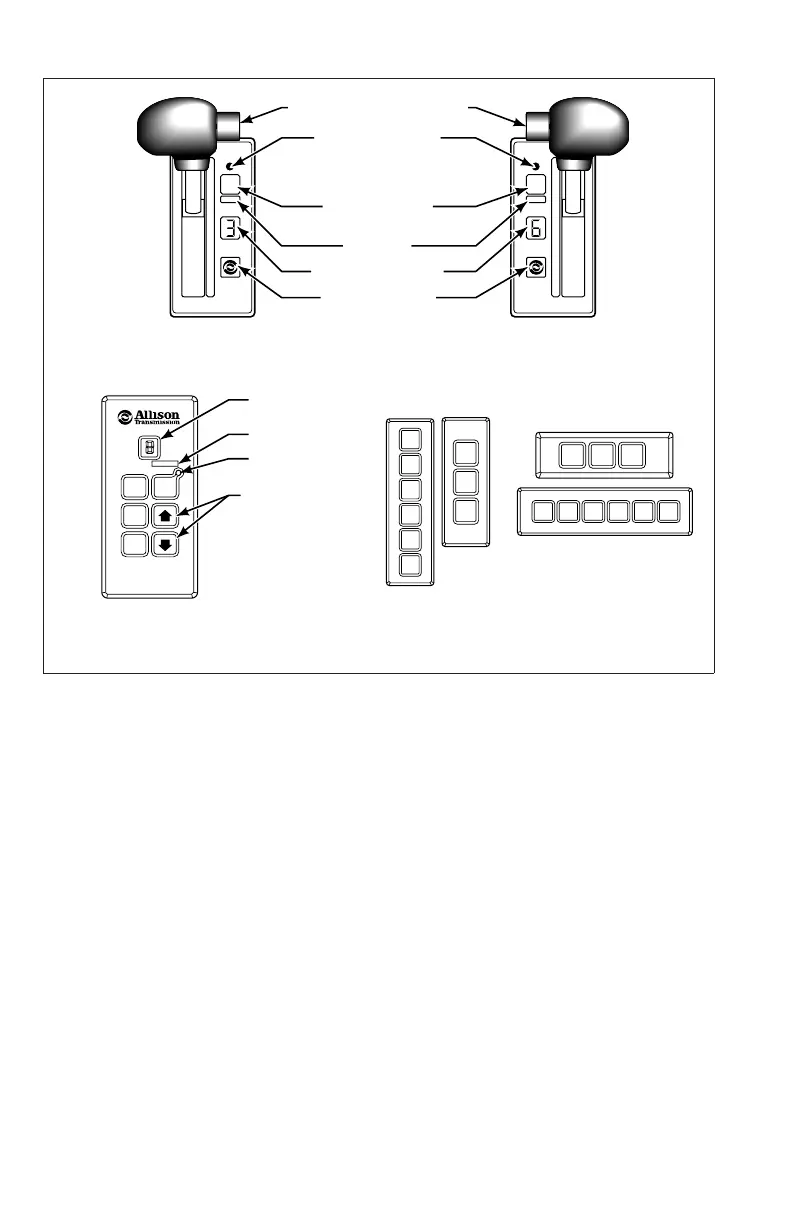

Figure 2–4. Typical Shift Selectors
44
