Product Assembly | AM-2000 User’s Manual
Installation of Support System

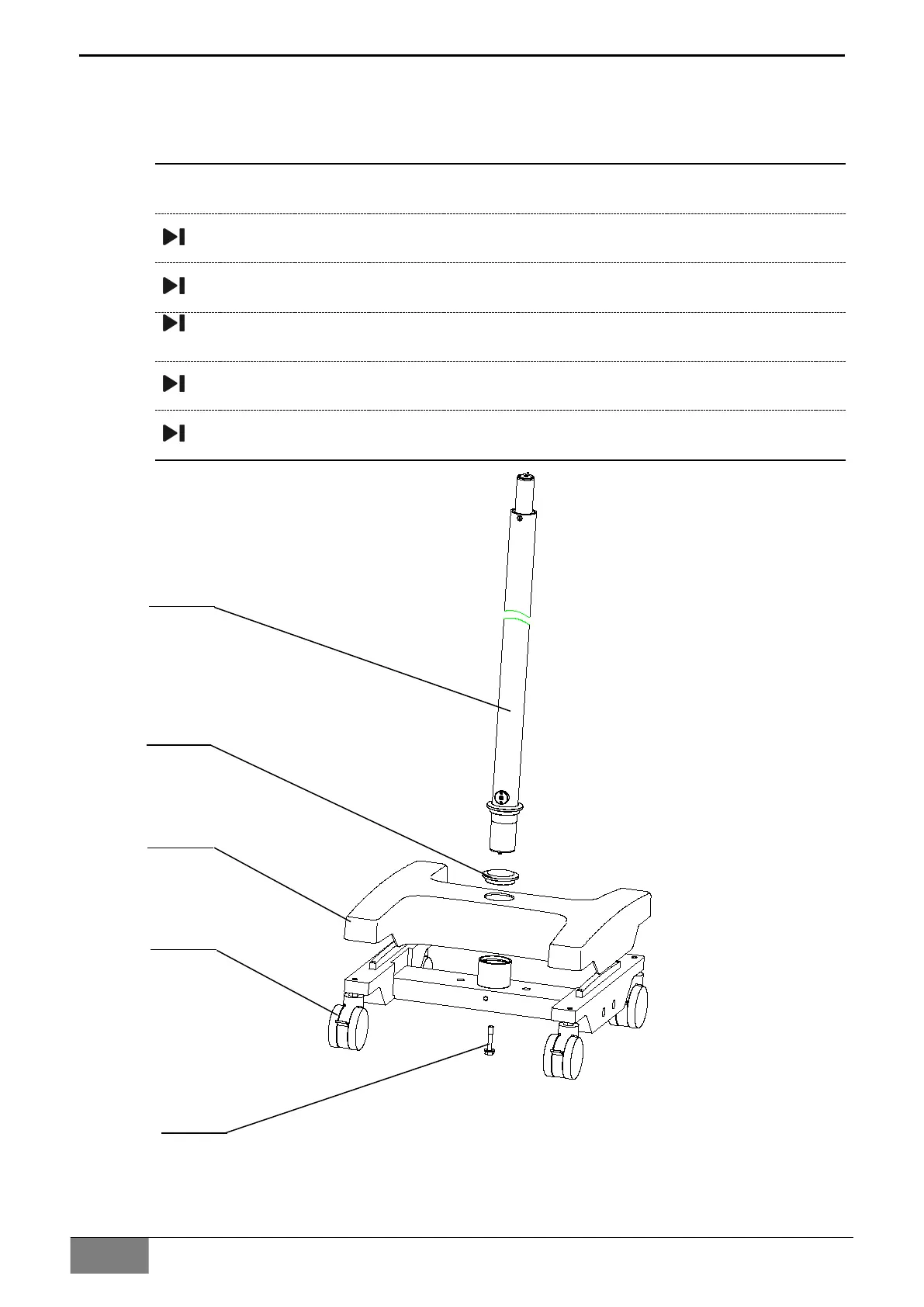

Installation of Mobile Floor Stand
Move the base (1) from the wood pallet, take away the plastic cover and the compression
ring（3）firstly and put it aside;
Put base (1) on the horizontal ground and lock four casters;
Fit the plastic cover (2) onto the base (1) and tighten the compression ring (3);
Insert the upright post (4) in the installation hole of base (1), the positioning pin and the
positioning hole need to be aligned to ensure that the upright post is installed in place;
After the upright post is installed in place, tighten the screw（5）;
Finish the assembly of the mobile floor stand.
