AM-2000 User’s Manual | Product Assembly

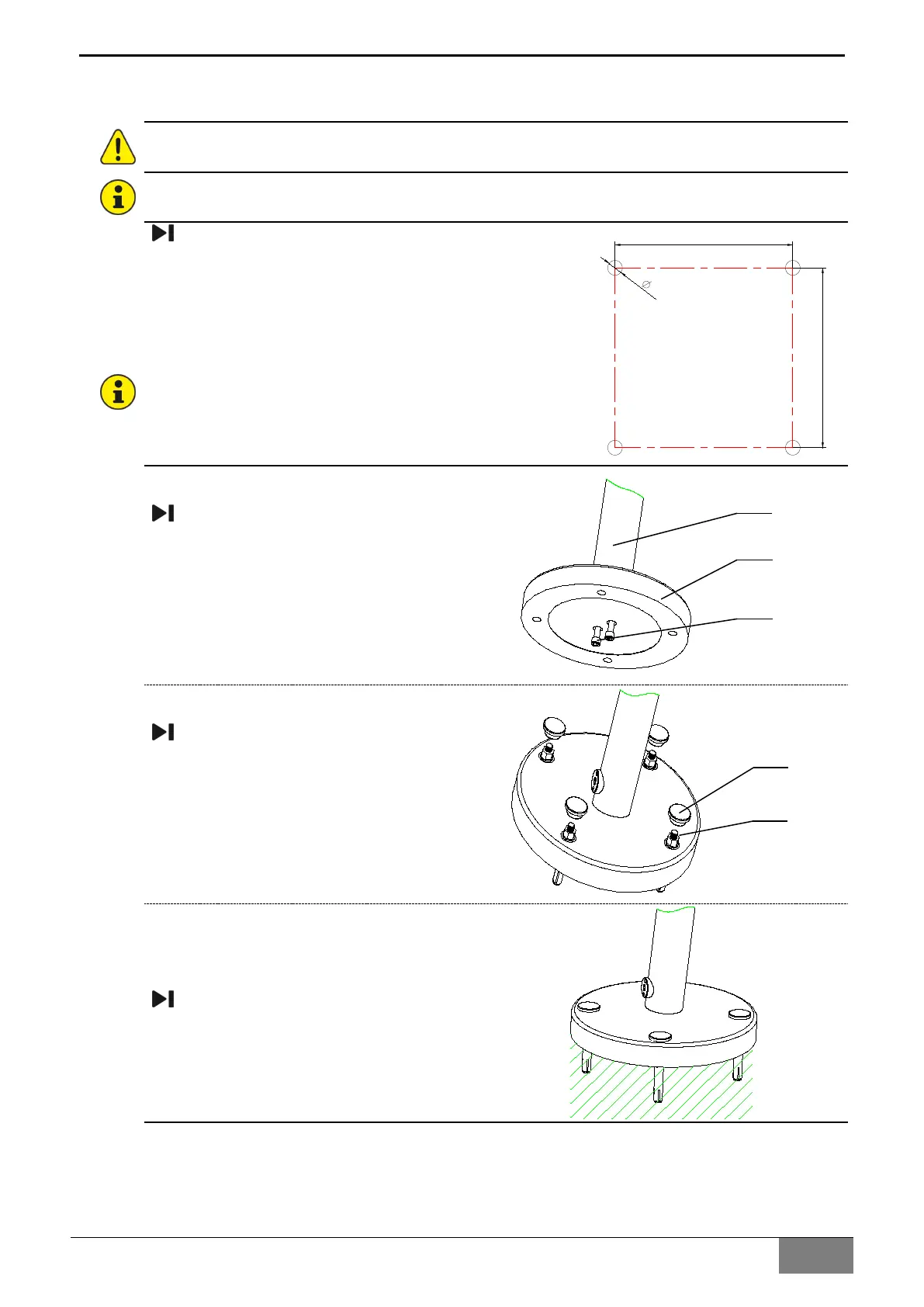

Installation of Fixed Floor Stand
The floor to assemble the fixed floor stand must be made of concrete or material with higher
hardness than concrete. Otherwise, it will be risk of tipping over.
The ground to install the fixed floor stand must be horizontal enough, otherwise, it will cause the
product to be tilted after installation.
Drill 4 holes in the ground with Φ14
driller, the hole depth is 75mm, and
the hole position is as shown on the
right diagram.
If the position and dimension of the
installation hole are incorrect, the stand
can't be installed.
Install the pole assembly (1) into the
installation hole of the ground fixing
plate (2), lock it with two M10 screws
(3), and the positioning pin must
align with the positioning hole during
assembly;
Take out the socket spanner from
the tool box, insert the M10
expansion bolt (4) in the installation
hole, align the stand with the bolts,
and tighten, assemble the decorative
cover (5);
Finish the installation of the fixed
floor stand.
