Alltion (Guangxi) Instrument Co., Ltd.
AM-2000 User’s Manual | Performance Parameters
35
Performance Parameters
Basic dimension

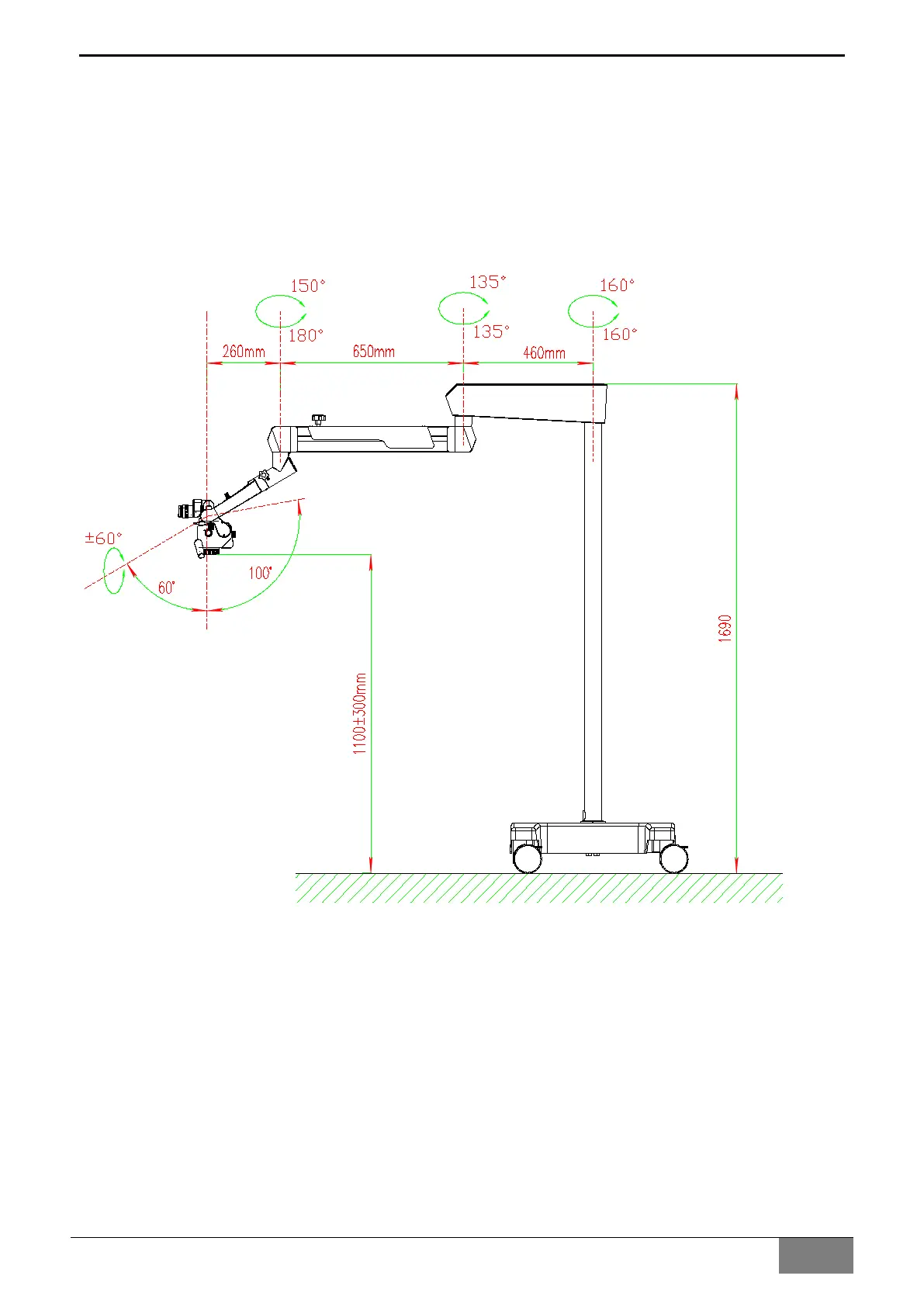

The basic dimensions of the whole machine and the motion range of the joint are shown in the following
figure:
