Product Assembly | AM-2000 User’s Manual
Installation of Ceiling Mount
The ceiling to assemble the ceiling mount must be made of concrete or material with higher
hardness than concrete. Otherwise, it will be risk of falling down.

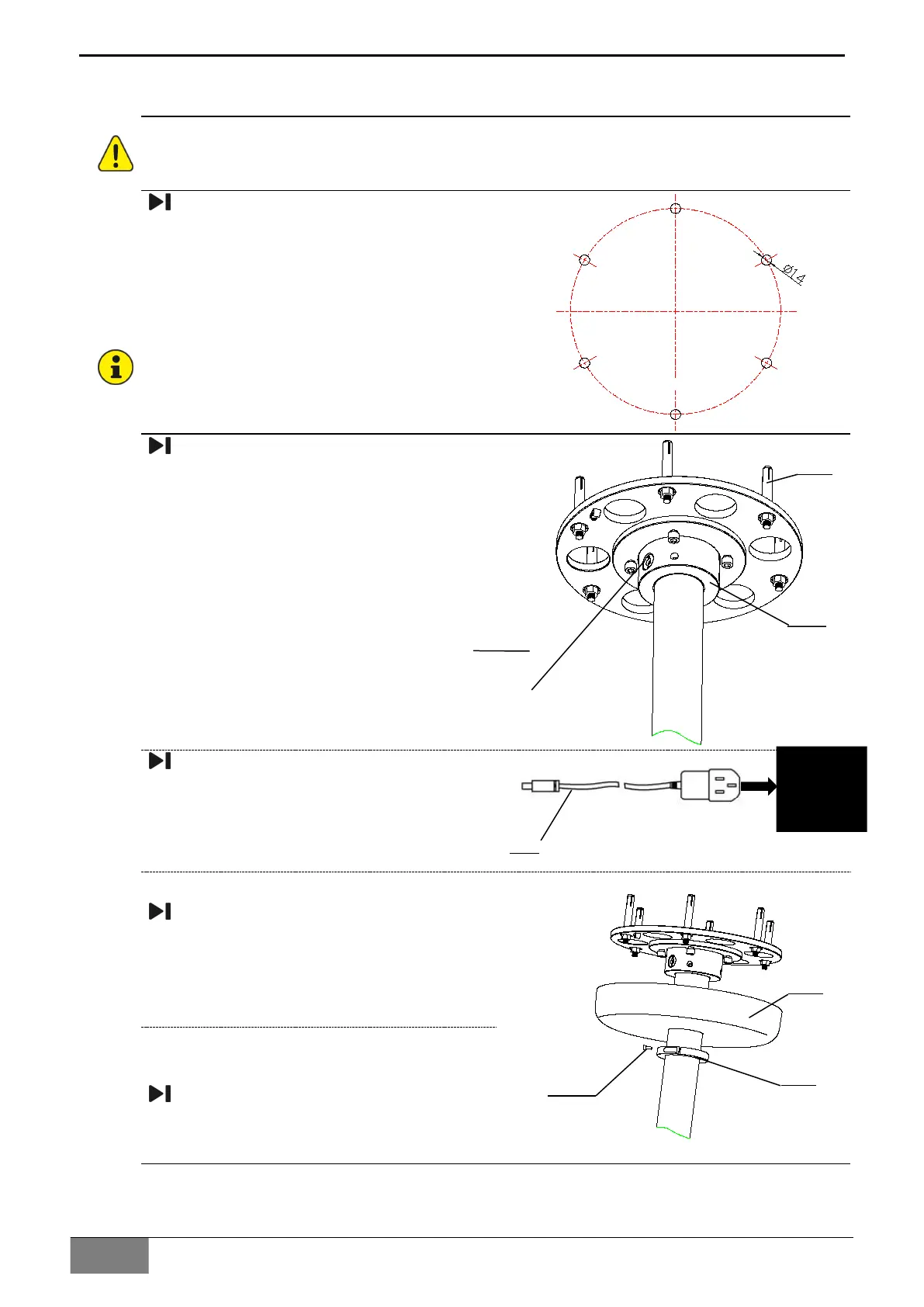

Drill 6 holes in the ground with Φ14 driller,
the hole depth is 75mm, and the position
dimension of the hole is as shown on the
right diagram;
When drilling, please note the direction of
power cord connection,The power connector
is along same direction with the pre-installed
socket on the ceiling.
Lock the ceiling mount assembly (2) to the
ceiling with six M10 expandable bolts (1);
Connect the power cable (3) to the power
connector, and then plug it into an
externally installed power socket.
Install the decorative cover(4) from the
bottom of the pole and bottom cover limit
block(5), tighten the bolts(6)of the locking
limit block after installation.
Finish the installation of the ceiling mount.
