Product assembly | AM-5000 User's Manual

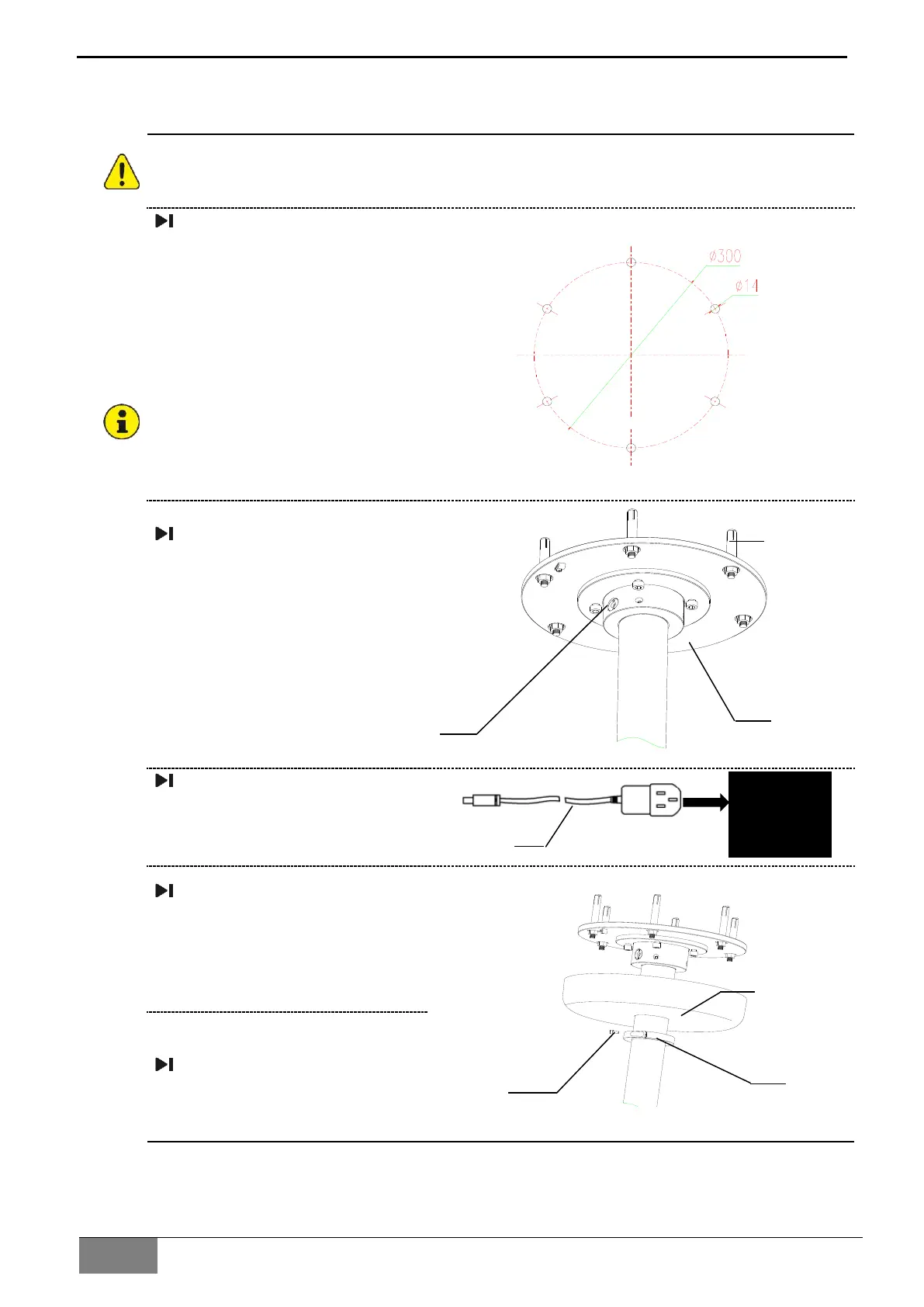

Installation of Ceiling Mount
The ceiling to assemble the ceiling mount must be made of concrete or material with higher
hardness than concrete. Otherwise, it will be risk of falling down.
Drill 6 holes in the ground with
Φ14 driller, the hole depth is
75mm, and the position
dimension of the hole is as
shown on the right diagram;
When drilling, please note the
direction of power cord connection,
The power connector is along
same direction with the pre-
installed socket on the ceiling.
Lock the ceiling mount
assembly (2) to the ceiling with
six M10 expandable bolts (1);
Connect the power cable (3) to
the power connector, and then
plug it into an externally
installed power socket.
Install the decorative cover(4)
from the bottom of the pole and
bottom cover limit block(5),
tighten the bolts(6)of the locking
limit block after installation.
Finish the installation of the
ceiling mount.
