Product assembly | AM-5000 User's Manual
Installation of Supporting Components
Installation of Straight Binocular Head and 45° Binocular Head
The installation method is the same as the Installation of Binocular Head Barrel, see Page 20.
Installation of Objective Lens
For objective lens of other specifications, the installation methods are the same as “Large
Objective Lens Installation”, as shown in Page 19.

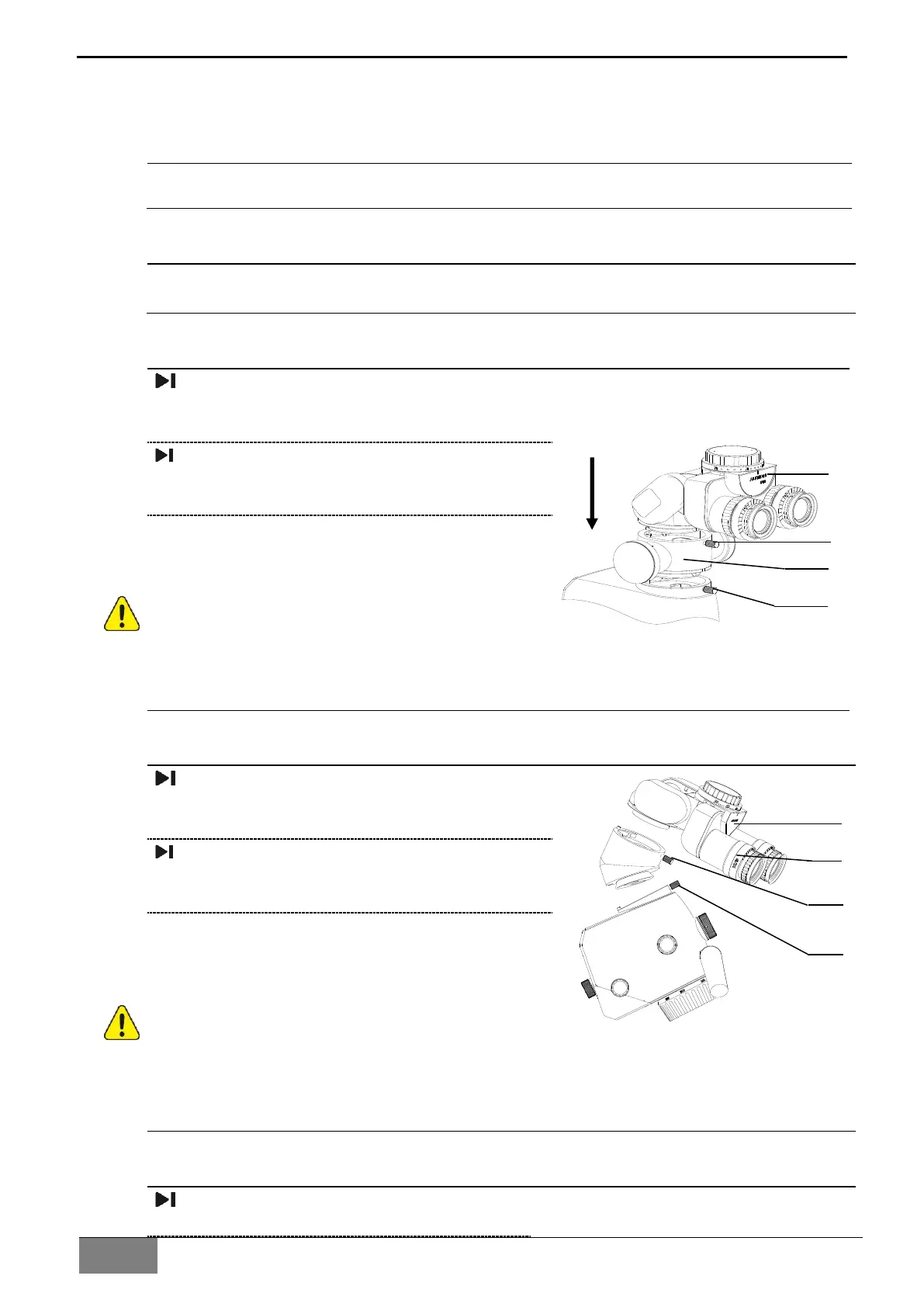

Installation of Beam Splitter
Loosen bolt (1), install the beam splitter (2) in
the bayonet of the microscope body, and tighten
bolt (1);
Loosen bolt (3) and install the binocular
barrel (4) in the bayonet of the beam
splitter; and tighten bolt (3)
Before loosening the grip, please make
sure: the beam splitter has been
installed in place and the bolt are
tightened; the binocular head has been
installed in place and has been completely
clamped in the bayonet, and the locking
screw has been tightened, otherwise, there
is a risk of falling.
Installation of 45°Binocular Extender
Loosen bolt (1), install the 45°binocular
extender (2) in the bayonet of the
microscope body, and tighten bolt (1);
Loosen bolt (3) and install the binocular
head barrel (4) in the bayonet of the 45°
binocular extender; and tighten bolt (3)
Before loosening the grip, please make
sure: the 45°binocular extender; has
been installed in place and completely
clamped in the bayonet, and the bolts are
tightened; the binocular head barrel has
been installed in place and has been
completely clamped in the bayonet, and
the locking bolt has been tightened,
otherwise, there is a risk of falling.
Installation of Angle Rotation Device
Loosen bolt (1), install the angle rotation
device (2) in the bayonet of the
