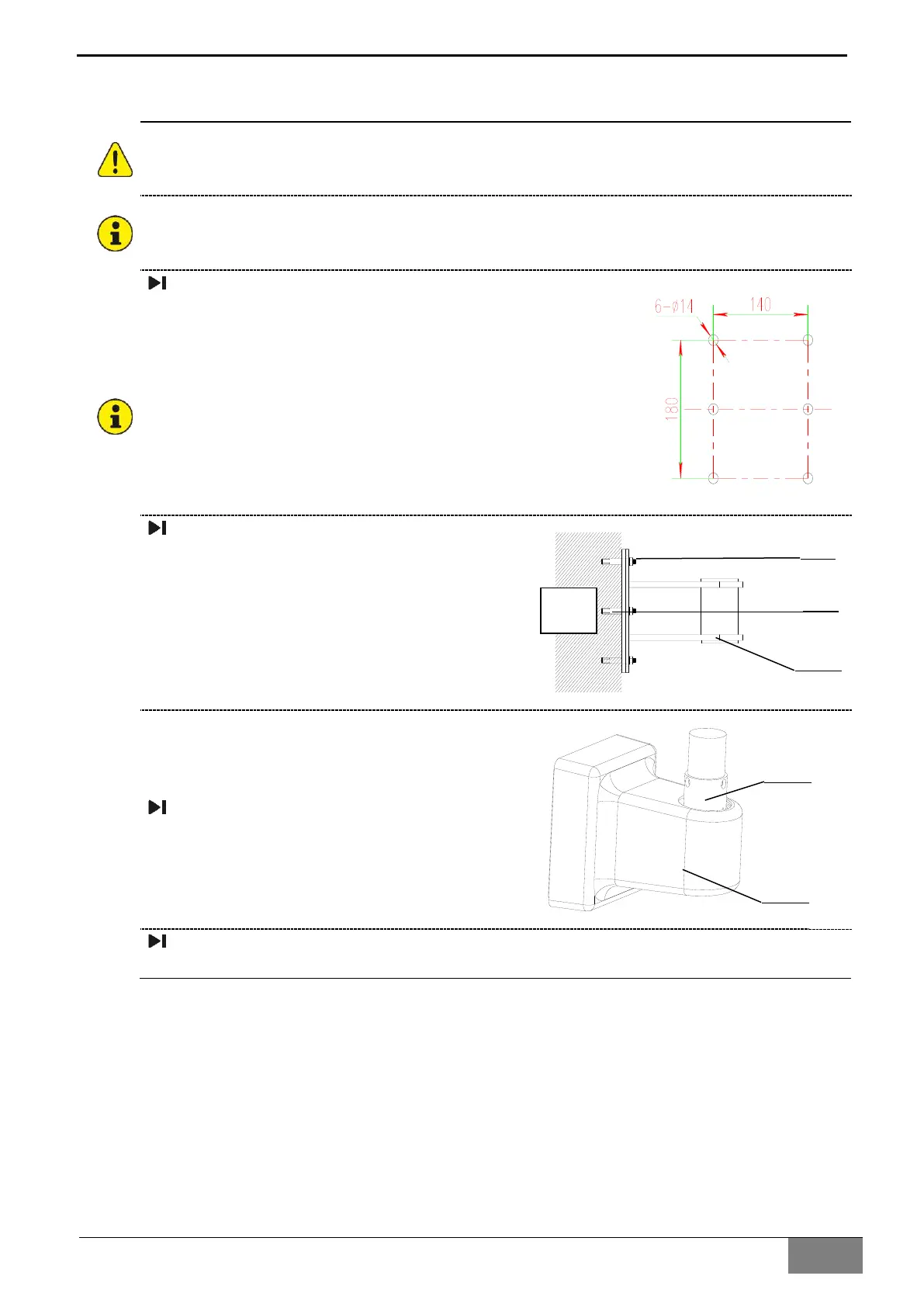

Installation of Low-Position Wall Mount
The wall to install the low position wall mount must be made of concrete or material with higher
hardness than concrete. Otherwise, it will be risk of falling down.
The wall to install the low-position wall mount shall be smooth enough, otherwise, it will cause
the product to be tilted after installation.
Drill 6 holes in the wall with Φ14
driller, the hole depth is 75mm,
The position and dimension of
the hole is as shown on the right
diagram;
If the position and dimension of
the installation hole are
incorrect, the installation could
not be done.
Install the low-position wall
mount (1) to the wall with hole
by M10 expandable bolts (2),
then tighten the nuts (3).
After the appearance cover, load
the column into the bracket.
Finish the installation of the low-
position wall mount.
