Product assembly | AM-5000 User's Manual
lock it with locking ring (2);
Install the binocular head barrel (5)
with the 2-D rotation binocular
assistant scope connector (3), and
lock screw (4).
Before loosening the grip, please make
sure that the 2-D rotation binocular
assistant scope connector and the
binocular head barrel have been
installed and locked, otherwise, there is
a risk of falling.

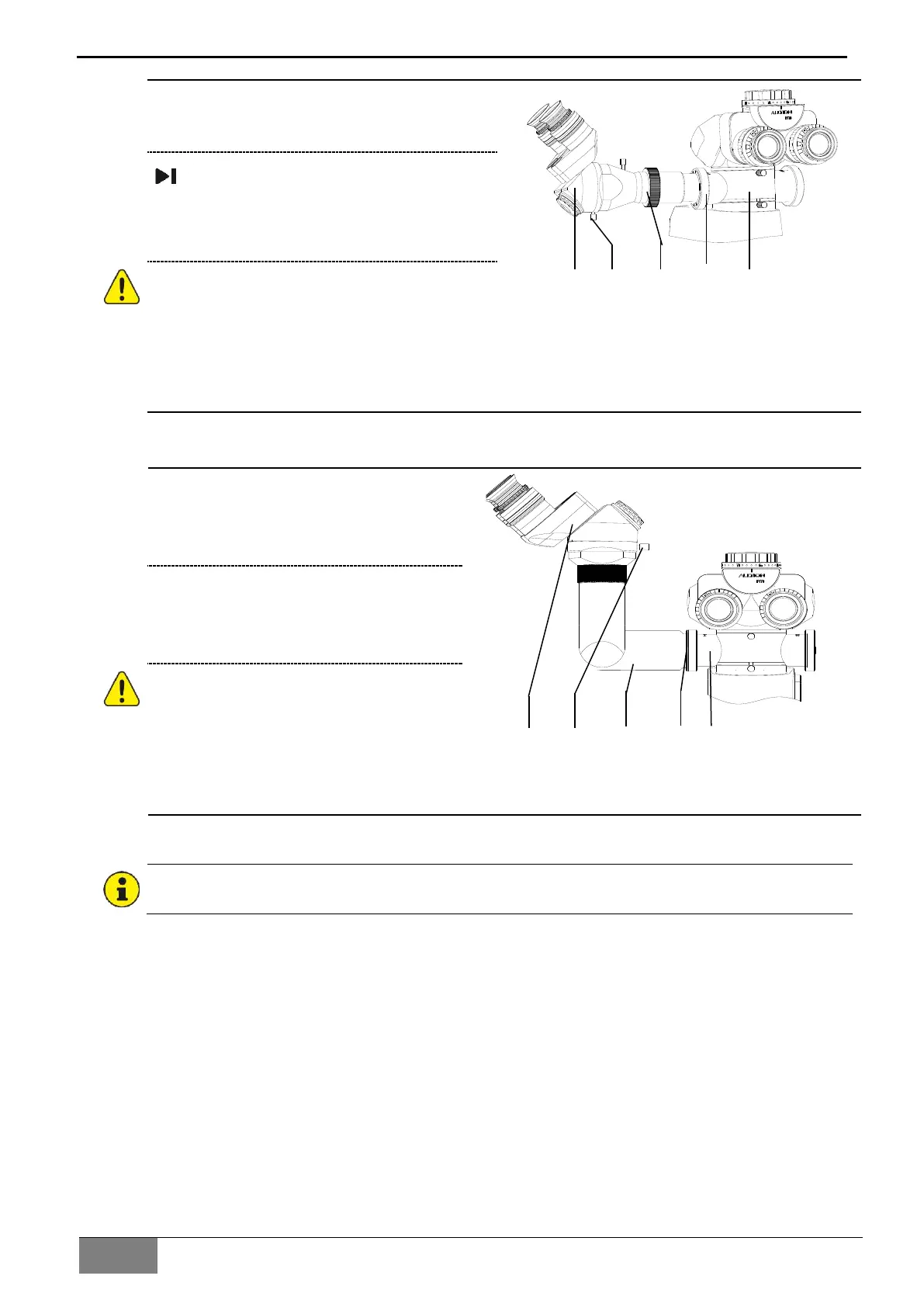

Installation of 3-D Rotation Binocular Assistant Scope Connector
Install the 3-D rotation binocular
assistant scope connector (3) on
the beam splitter interface (1), and
then lock it with locking ring (2);
Install the binocular head barrel (5)
with the 3-D rotation binocular
assistant scope connector (3), and
lock screw (4).
Before loosening the grip, please
make sure that the 3-D rotation
binocular assistant scope connector
and the binocular head barrel have
been installed and locked,
otherwise, there is a risk of falling.
Installation of Other Parts
For the installation methods of other accessory parts, please refers to the user manual of
corresponding component.
1
2
3
4
5
5
4
3
2
1
