Product assembly | AM-5000 User's Manual
Suspending of Ceiling Mount
The suspending installation of first arm is applicable to ceiling mount System and high-position
wall mount system.
Because the first arm has certain weight and is long, please install by two operators together for
safe installation.

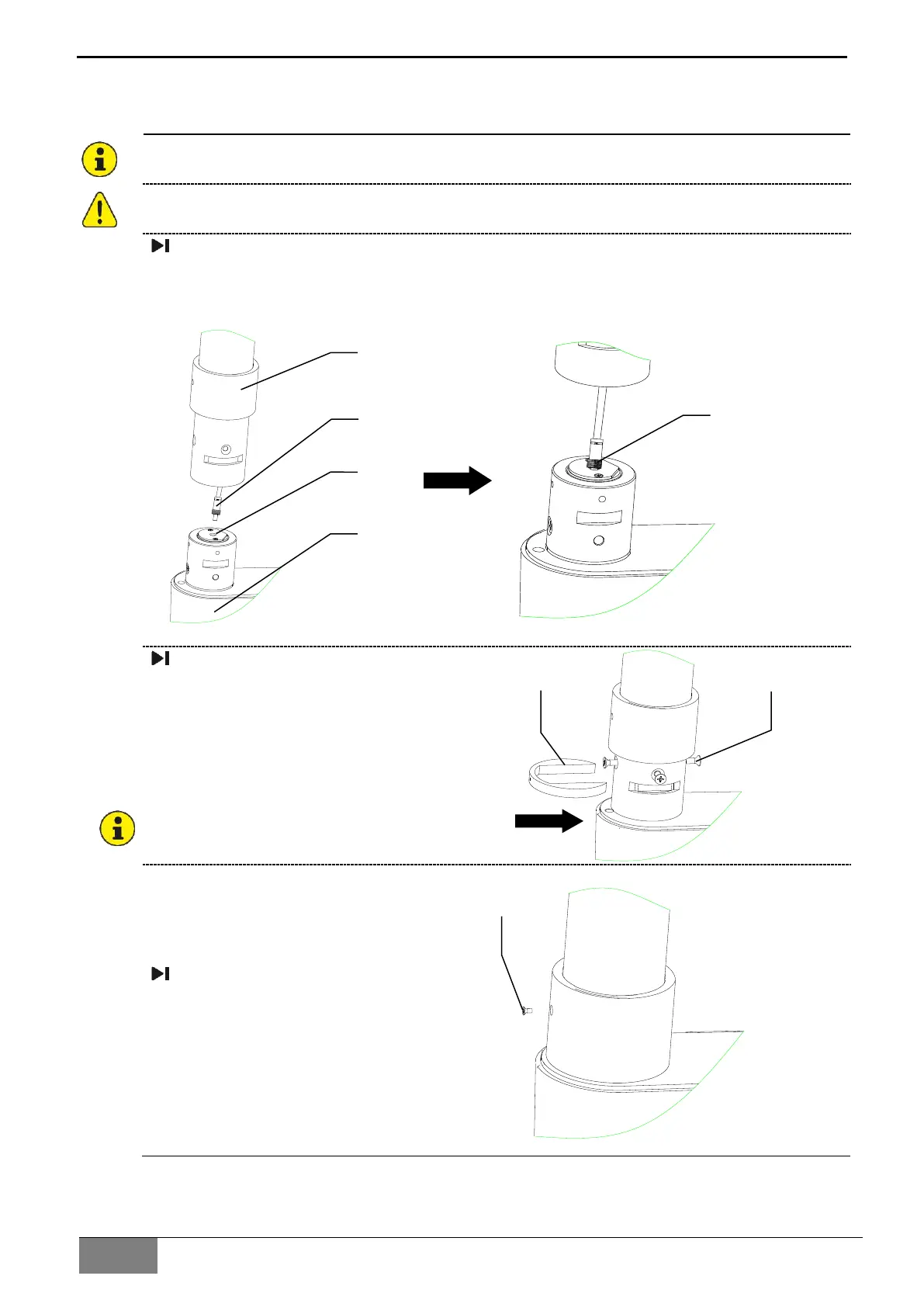

Lift the cross arm bracket (1) to a position under the column, insert the decorative ring (2)
into the column, insert the power plug (3) on the column into the power connector (4), and
tighten with the nut (5) on the power plug.
Insert the connecting shaft on the first
arm support into the upright post, align at
the clamping groove and insert the limit
block (6); tighten four M6 × 16 hexagon
socket countersunk head screws (7)
around four sides.
After the limit block (6) is inserted in place,
the first arm support can be loosened;
Put the decorative ring (2), lock the side
edge with M3 × 6 hexagon socket
countersunk head screws (8), finish
installation.
