Allweiler AEB1E - Mechanical Seal, Single-Action with Throttle Ring (G0 S and G0 T); Mechanical Seal, Single-Action with Quenching (G0 Q); Mechanical Seal, Double-Action (G0 D)

Appendix
90°
212
213
236
235
234
218
220
219
214
245
215

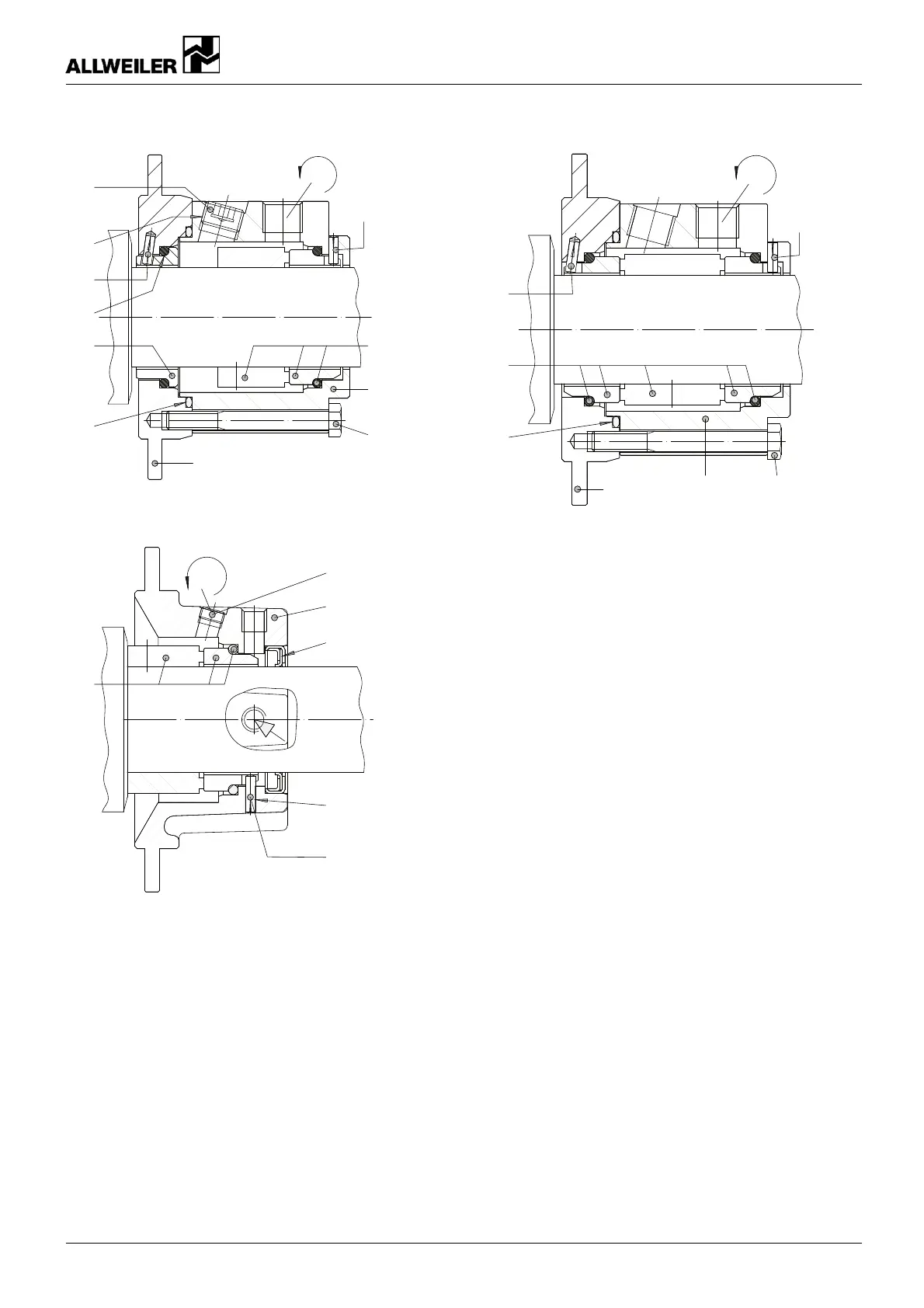

Fig. 25 Mechanical seal, single-action with throttle
ring (G0S and G0T)
90°
212, 213
219
214
232
251
220
Fig. 26 Mechanical seal, single-action with
quenching (G0Q)
90°
236
219
218
215
214 245
220
Fig. 27 Mechanical seal, double-action (G0D)
