Installation

(06/2016)

Installation

There are two installation methods available for the OutBack Mate Micro:

» Frame Mount

» Surface Mount

Required Tools:

» Drill

» Four ST4.2x32 Self-Tapping Screws (Frame Mounting Only)

» Four M4x8 Pan Head Screws

» Four M4 Nuts

» Four Screw Plugs

» Phillips Screwdriver

Table 1, Mounting Information

See the following two sections for each mounting method.

Frame Mount

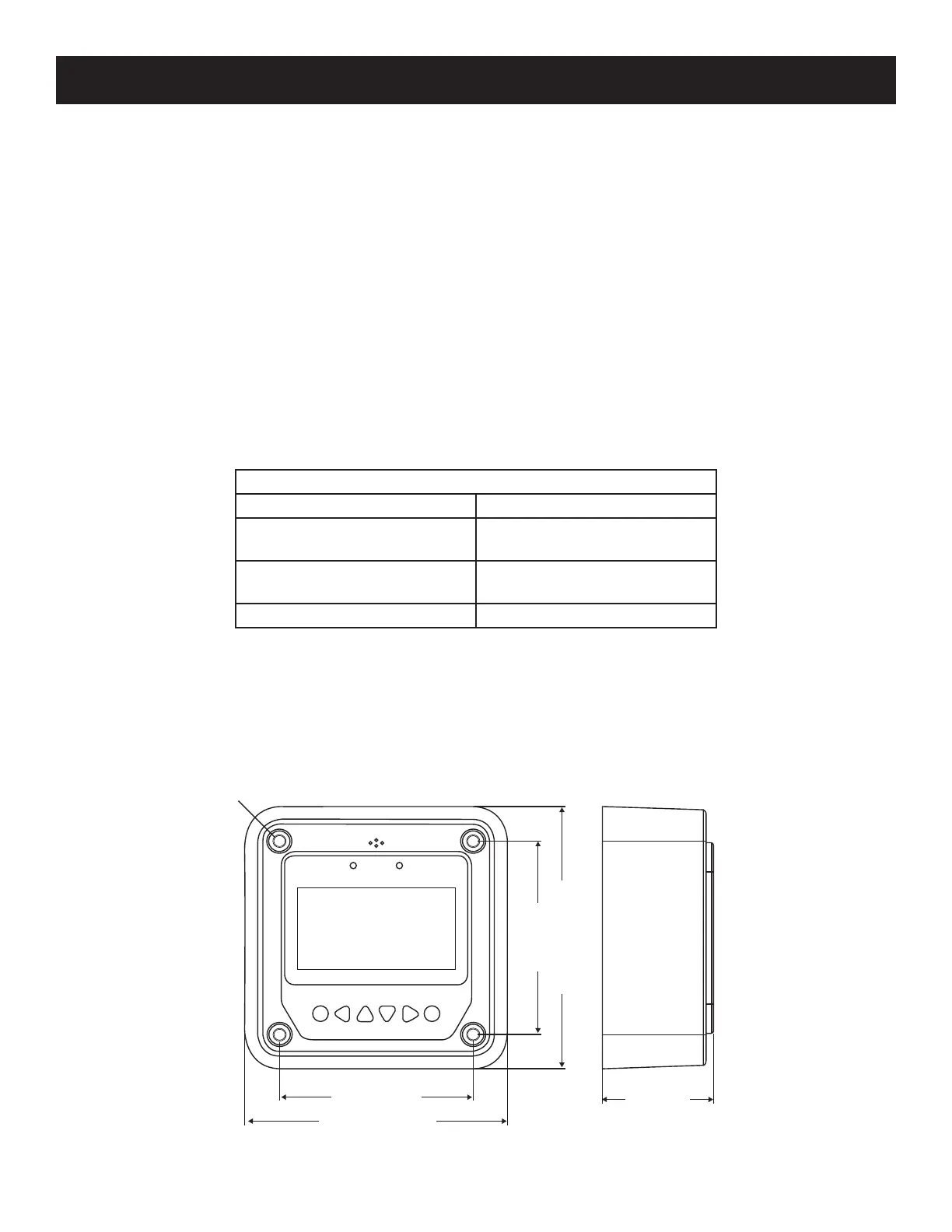

Figure 1, Frame Mount Dimensions (in/mm)

Mounting Information

Mechanical Parameter Parameter

Overall Dimension (in/mm)

4.49 x 4.49 x 1.90

(114 x 114 x 48.2)

Mounting Dimension (in/mm)

3.31 x 3.31

(84 x 84)

Terminal ф4.3

84mm

114mm

48.2mm

114mm

4-M4
