Installation
8
(06/2016)
1. Locate and drill the screw holes based on the frame mounting dimension of the base, and erect the plastic expansion
bolts.
2. Use four ST4.2x32 self-tapping screws to x the frame.

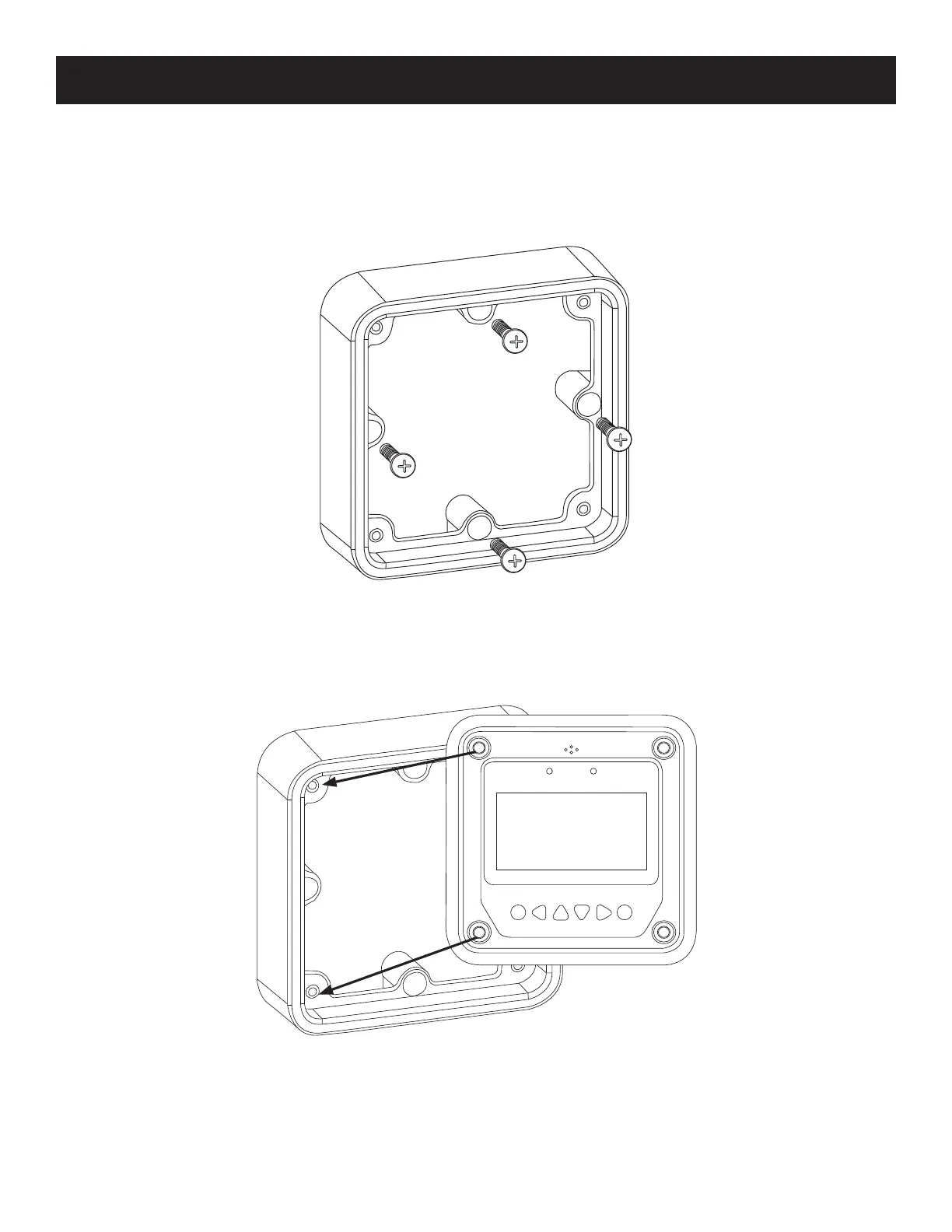

Figure 2, Frame Mounting
3. Use four M4x8 pan head screws to mount the OutBack Mate Micro to the frame.
Figure 3, OutBack Mate Micro Mounting
4. Ax the four screw plugs to the screw holes.
