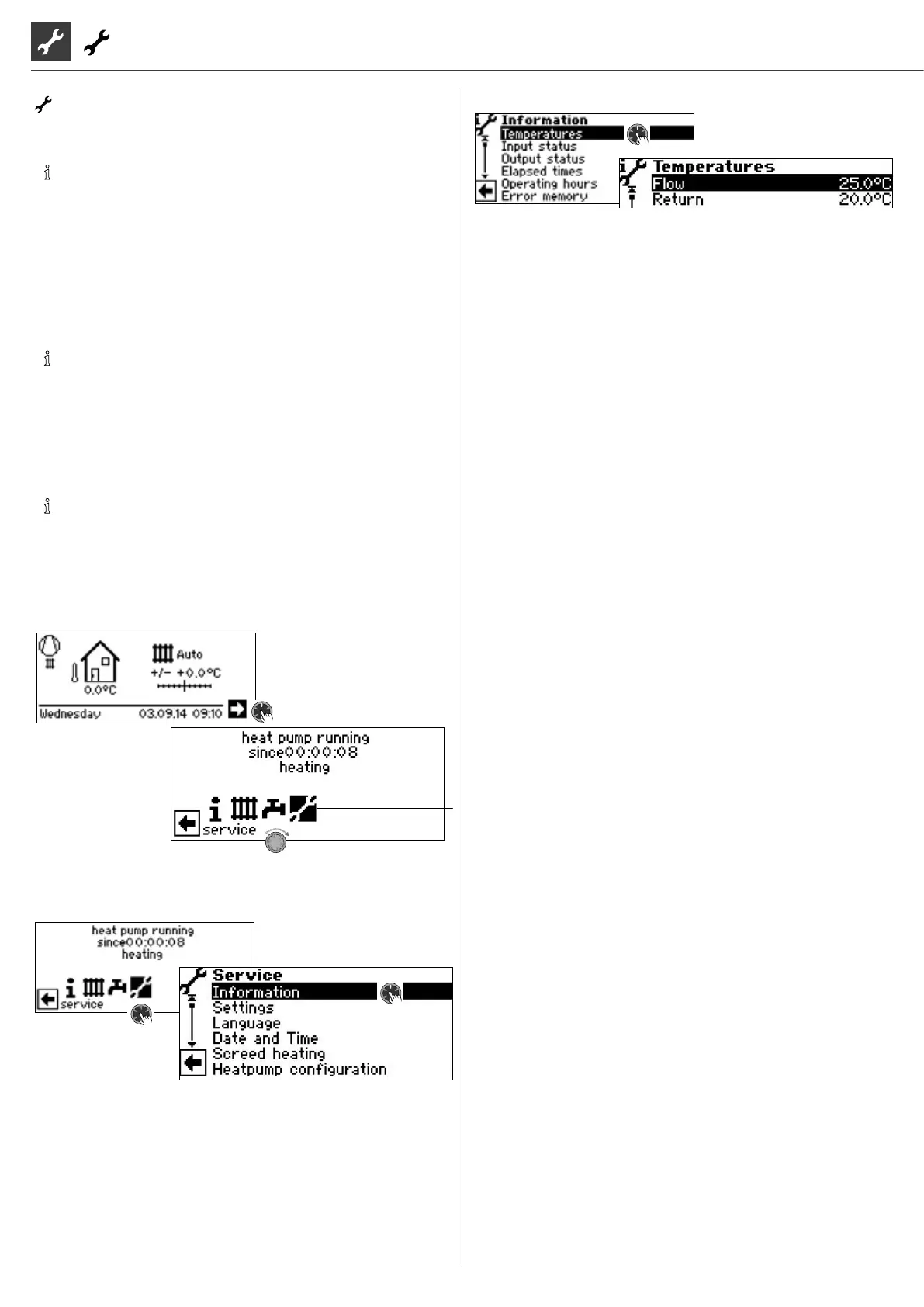

Query Temperatures
The menu is not shown in full here.
Flow Flow temperature heating circle
Target ow Flow setpoint temperature heating circle
Return Return ow temp. of heating circle
Ret. targ. Return setpoint heating circle
Return external Return temp. in separate tank.
Hot gas Hot gas temperature
amb. temp. External temperature
Average temperature Average temperature outside over
24h(function heating limit)
Act. service water Domestic hot water actual temperature
upper DHW Temperature in the upper part of the
domestic hot water tank
Targ. service water Domestic hot water target
temperature
Heat source in Heat source inlet temperature
Heat source out Heat source outlet temperature
MC 1 ow Mixing circle 1
Forward ow temperature
MC 1 target ow Mixing circle 1
Forward ow set temperature
Roomstation Current temperature of the room
control unit (RBE)
In addition – depending on the unit type of the connected heat
pump – the cooling circuit information provided by sensors in the
cooling circuit appears here.
ow max. Maximum ow temperature
Intake compressor Compressor intake temperature
Intake vapor Evaporator intake temperature
Comp-Heater Compressor heating temperature
Superheat Superheating temperature
Targeted Superheat Superheating target temperature
Evap. temp. EVI Evaporator temperature EVI
Intake EVi Suction temperature EVI
EVi Superheat Superheating temperature EVI
Target EVI superheat Superheating target temperature EVI
Condensation temp. Condensation temperature
Liquid temp before EEV Temperature of the liquid refrigerant
upstream of the electronic expansion
valve (heating)
evaporating temp. Evaporation temperature
condensing temp. Condensation temperature
TFL1 Temperature of the liquid refrigerant
upstream of the electronic expansion
valve (heating)
TFL2 Temperature of the liquid refrigerant
upstream of the electronic expansion
valve (cooling)
Undercooling EEV Calculated under-cooling at the
electronic expansion valve
THG Grenze Maximum hot gas temperature
Defrost End Target temperature in the evaporator
to end defrosting
desuperheater Temperature at the desuperheater
Switch box Temperature in the electrical switch
box
Program area “Service“
NOTE
The software automatically detects the connected heat
pump type. Parameters that are not relevant for the con-
ditions of the system and/or the heat pump type are hid-
den. Some of the parameters documented in this program
area may therefore not appear on the screen of your heat-
ing and heat pump controller.
Many menus require scrolling with the “rotary pushbut-
ton”.
NOTE
Some menu entries and parameters are also only visible or
adjustable when installation technician or customer ser-
vice access is active. The dierent data access levels are
marked in this operating manual by symbols.
 page 2, “Symbols“
NOTE
Some parameters have adjustable value ranges. These can
be found in the appendix.
 page 46, “System setting during commissioning“
SELECT PROGRAM AREA
QUERY INFORMATION
