Alpha-InnoTec Luxtronik User Manual

25Subject to technical amendments without prior notice | 83055400iUK – 2.1 | ait-deutschland GmbH
Thermal Domestic hot water preparation is
initiated or terminated via a thermostat
on the domestic hot water tank.
No temperatures can be set in the
controller
NOTE
Connect domestic hot water thermostat on the same ter-
minals as the domestic hot water sensor (low voltage). The
domestic hot water thermostat must be suitable for low
voltage (oating contact).
Thermostat closed (= signal On) = Domestic hot water re-
quirement.
Service water 2
Domestic Hot Water 2
CP Setting CP means circulation pump.

For the corresponding settings, please refer to the description
of the circulation pump in the operating manual part 1, pro-
gram section “Domestic hot water”, section “Circulation“.
h.wCP Setting h.w.CP means that the CP
output will be active during domestic
hot water preparation and switch o
30 seconds after domestic hot water
preparation is complete.
NOTE
If the “service water2” menu eld is not visible, you must
make this setting in the “FlexCong” menu under “OUT2”.
 page 31, “FlexCong“
Service water 3
Domestic Hot Water 3
with CP Additional circulation pump runs
during domestic hot water preparation
wo. CP Additional circulation pump does
not run during domestic hot water
preparation
Service water 4
Domestic Hot Water 4
set value Heat pump attempts to reach the set
setpoint value of the domestic hot
water temperature
Service water 5
Domestic Hot Water 5
with HSP Heating circulation pump runs always
during domestic hot water preparation
wo HSP Heating circulation pump does not run
during domestic hot water preparation
par. HUP Heating circulation pump runs parallel
to domestic hot water preparation
if a heating demand exists. If the
heating limit is exceeded, the heating
circulation pump switches o.
SW+HP max
Maximum running time domestic hot
water preparation + Heat pump
After the set time has expired, the 2nd heat generator in the
domestic hot water preparation energises, but only if this has
been released previously in the heating mode!
Defr cycle max
Defrost cycle time, maximum time
between two defrost processes
You can nd the time to be set for the relevant L/W device in
the operating manual. If you do not nd any data there, the
following applies:
 page 45, “Overview: Defrost cycle, Air defrost, Flow Max“
Mixing circ 1
Mixing circle 1
Setting the functioning of the mixer control
charge Do not set for output controlled
heatpumps.

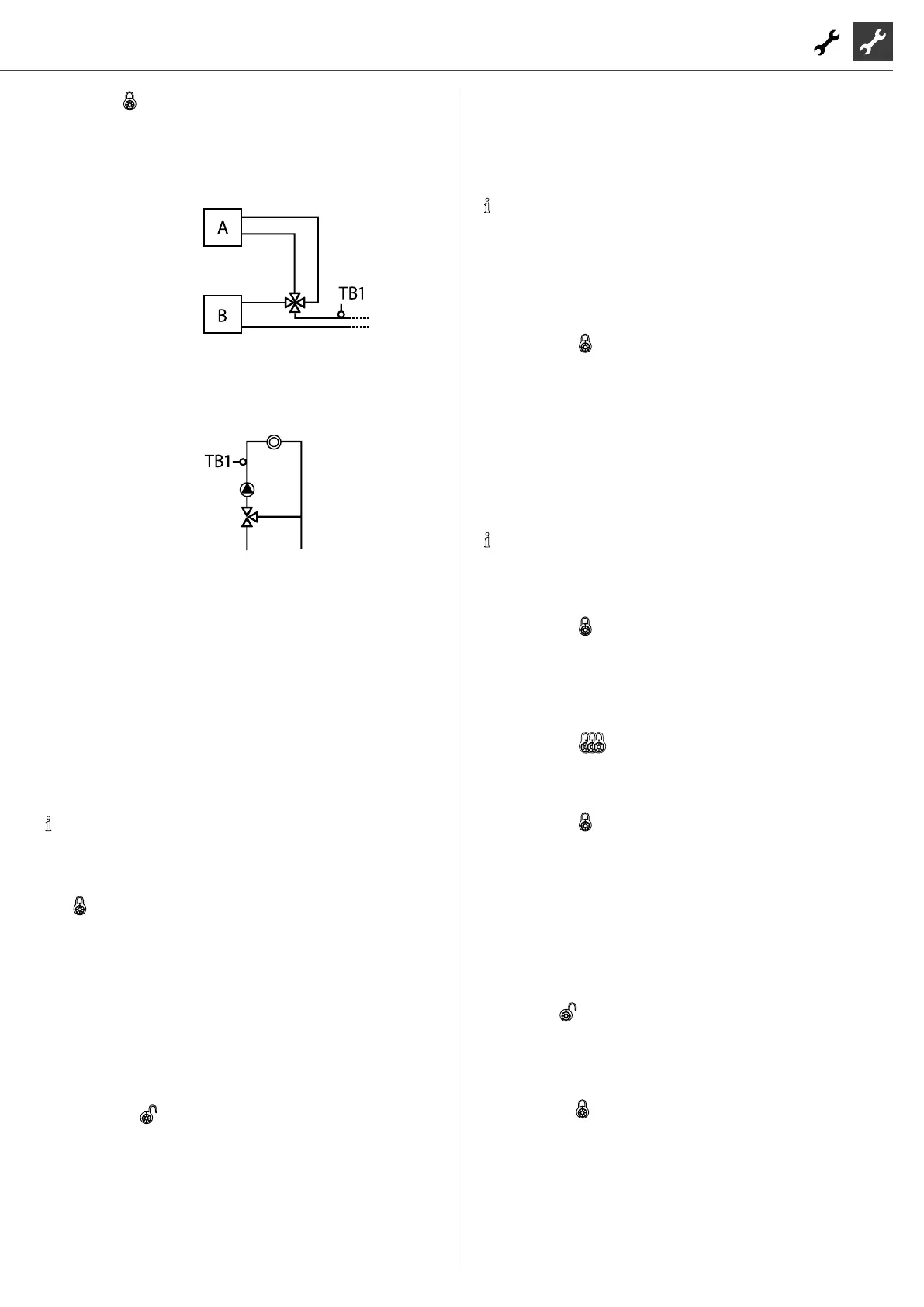

Mixer serves as charger mixer, possibly
for a boiler
A Boiler
B Heat pump
TB1 sensor ow
discharge Mixer serves as a control mixer,
possibly for oor heating
TB1 sensor ow (mandatory)
cool Activation of the cooling function
If a mixer is present, it then serves as a
control mixer for the cooling function
heat+cool Activation of the cooling function
(Setting only possible with S/W
and reversible L/W or with parallel
connection only with the master heat
pump)
If a mixer is present, it then serves as
a control mixer for the heating and
cooling function
no Mixer without function
NOTE
Cooling is controlled via TB1 sensor (via TVL sensor with
bridged TB1 contact) for integration of “Return” or via
TRLext sensor for integration of “Sep.tank”.
Error
Error
no 2hg in the event of a fault in the heat pump,
connected ZWE are only energised
if the return temperature <15 °C
(antifreeze); (only heating)
Heating
DHW Domestic hot water
with 2hg in the event of a fault in the heat
pump, connected ZWE are energised
according to requirements (HW +
DHW)
Service water 1
Domestic Hot Water 1
Sensor Domestic hot water preparation is
initiated or terminated via a sensor
with hysteresis (factory setting: 2K) in
the domestic hot water tank.
