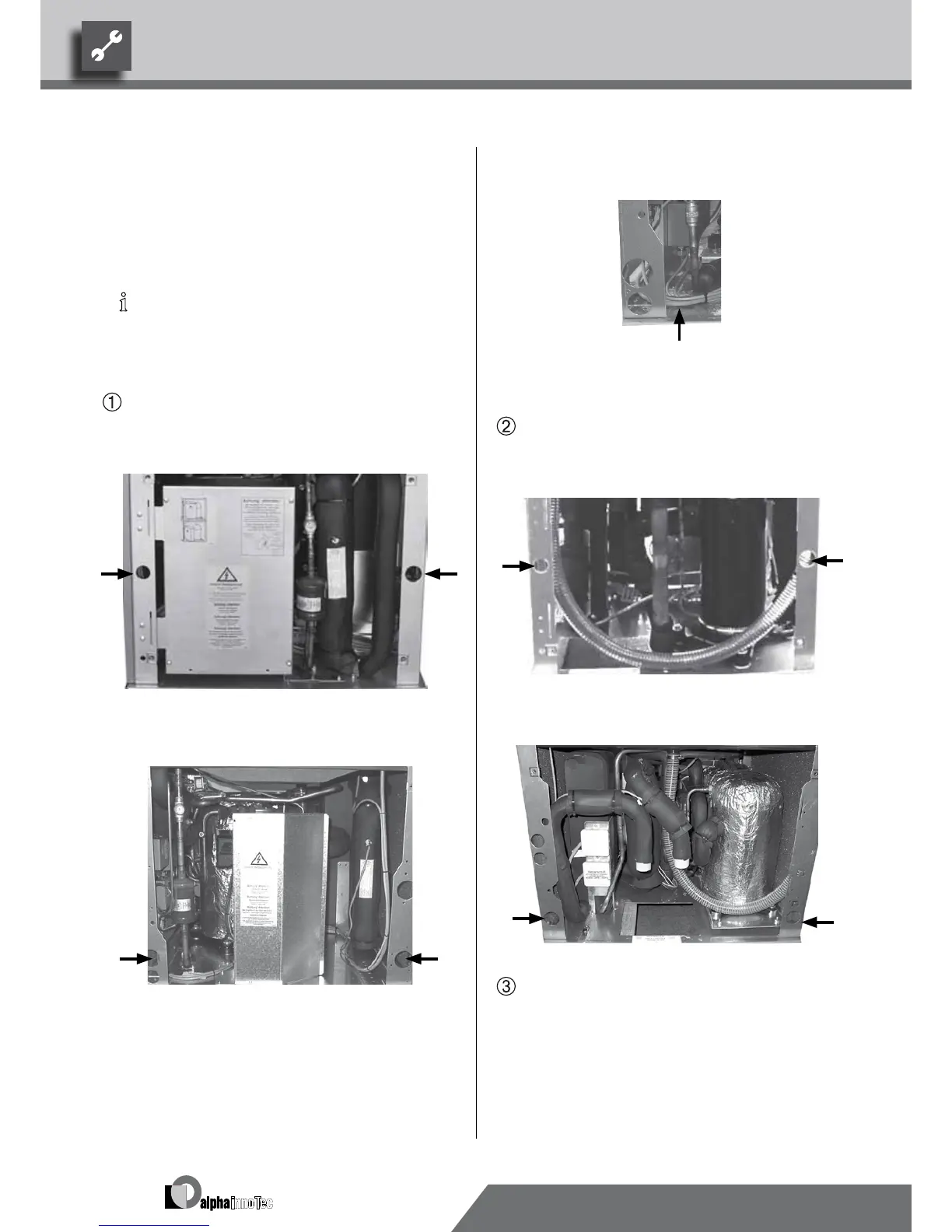

liftingtheunitWithpipes
(only LW 71… through LW 180…)
The units LW 71… through LW 180… can be lifted with
¾” pipes (provided by customer) that are suitable for
the weight of the respective unit. Special holes are pro-
vided in the frame for this purpose.
NOTICE.:
For mode LW 251… and higher, lifting
with pipes is not possible.
Proceed as follows:
Insert the pipes through the holes in the frame on
the switch cabinet side (= operator side)…
LW 71… / LW 81…:
LW 101… through LW 180…:
Make sure that pipes do not damage cable assemblies
and components in the unit…
Guide pipes carefully past cable assemblies and
components in the unit…
Guide pipes out through the holes on the water
connection side…
LW 71… / LW 81…:
LW 101… through LW 180…:
Lift unit by the pipes, with at least four persons, and
place on the base. Make sure that the frame of the
unit is in full contact with the underlying surface.
