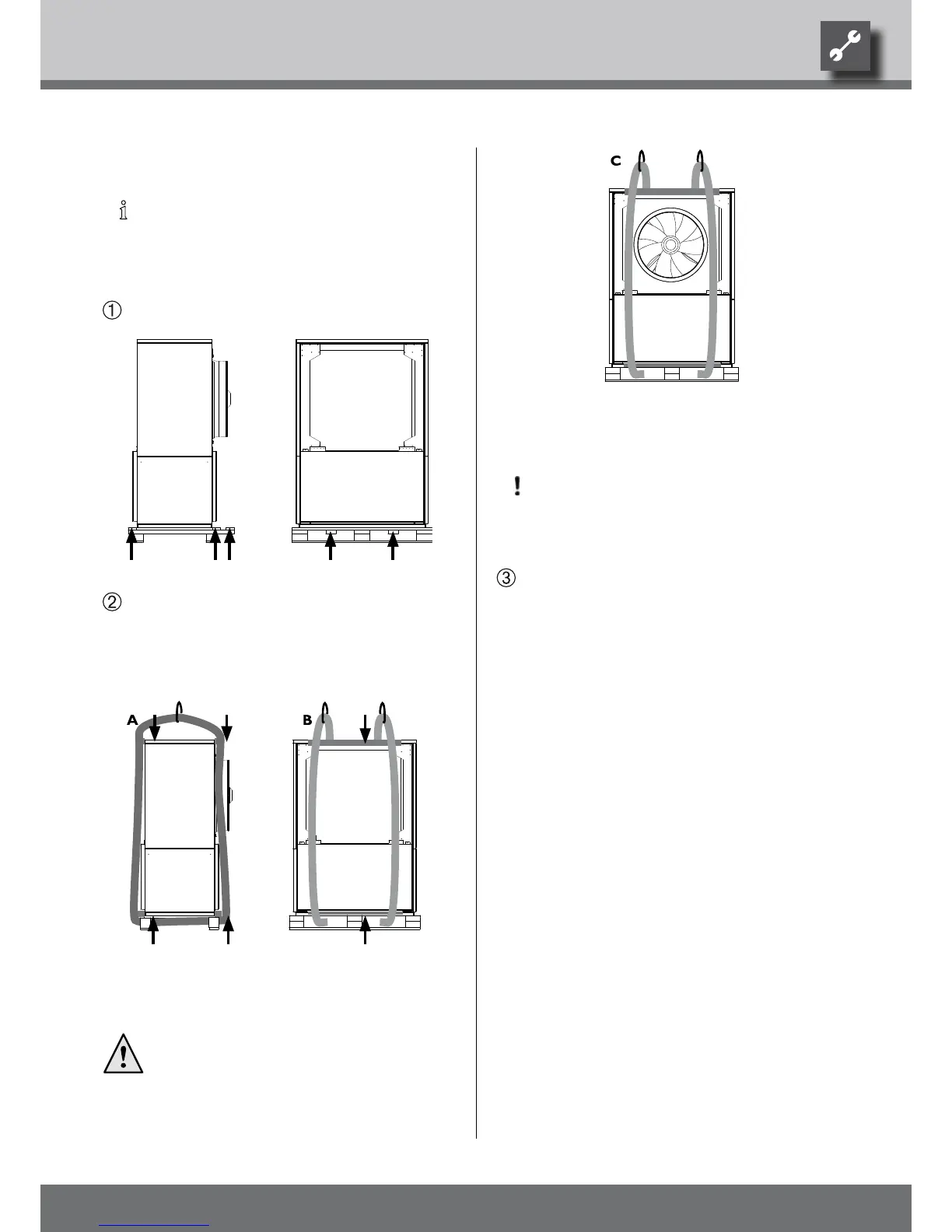

C Side view 2
CAUTION.
Guide lifting straps past the fan on the
side. Make sure the straps do not press
against the ventilator during transport.
Lift unit with the crane and place on the base. Make
sure that the frame of the unit is in full contact with
base.
liftingtheunitWithaCrane
NOTICE.:
Models LW 251… and higher must be lift-
ed using a crane.
Proceed as follows:
Remove side laths on the wooden pallet…
Guide lifting straps under the unit. Insert laths or
beams between the lifting straps and the unit in or-
der to prevent damage to the housing, or remove
facing panels (see removal instructions under “At-
taching air ow bafes”)…
A Front view (operator side)
B Side view 1
DANGER!
Lifting straps should not be too close to-
gether or too near the center; otherwise
the unit may tip!
