11
Subject to change without notice | 83057000jUK – Translation of the original operating manual | ait-deutschland GmbH

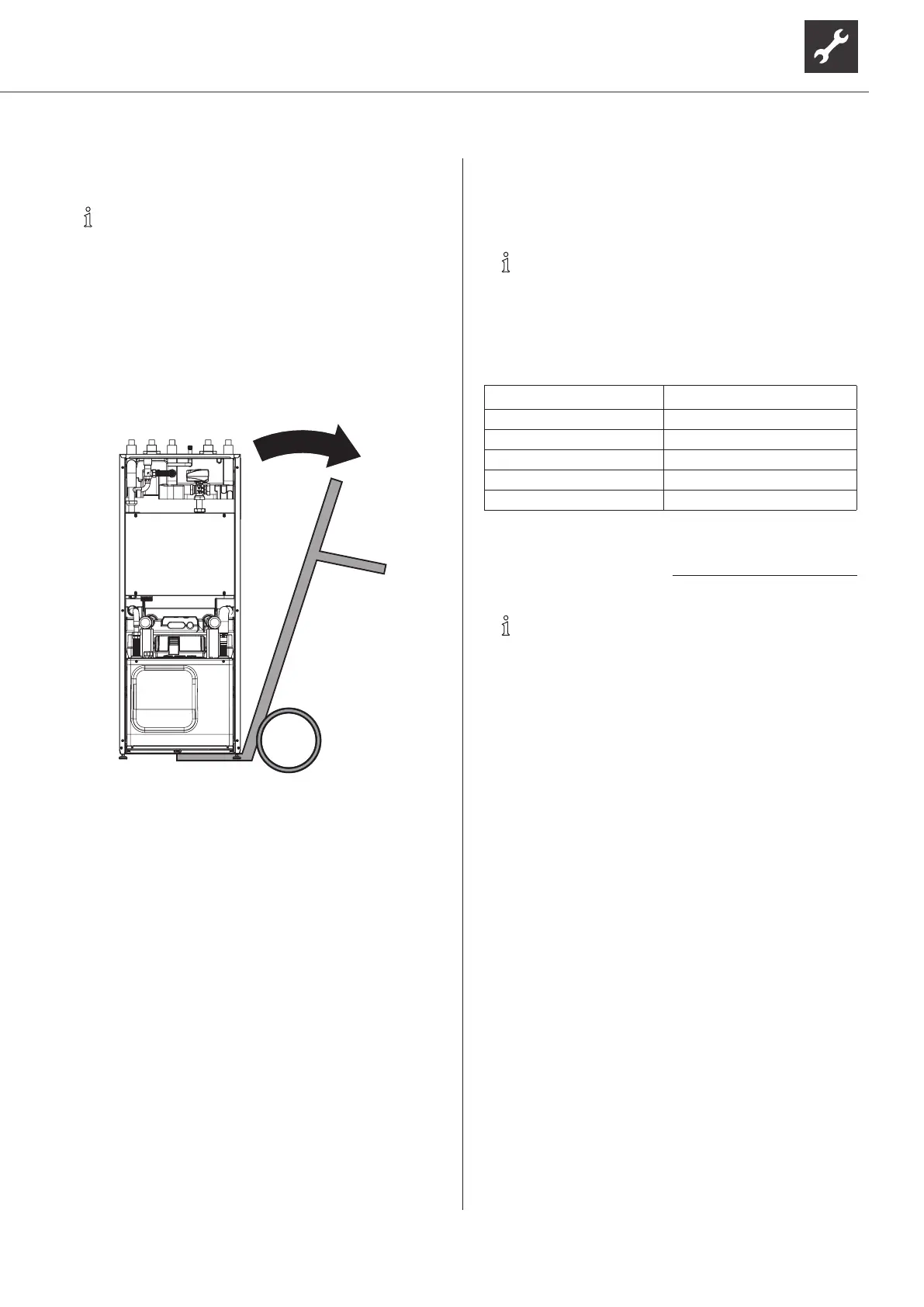

Transport with a handcart
NOTE
If transporting with a handcart the module
box must be pushed in.
shows transporting the unit on its left-hand
side; it can also be transported on its right-
hand side.
Housing panels are dismantled.
To avoid damage: On a handcart, load the unit on its
side only.
Transport unit on the handcart.
Carrying the unit
Housing panels are dismantled.
1. Dismantle module box ( “Dismantle the module
box”, page 12) and carry it by the support lugs
to the place of installation.
2. Carry the housing with the unit components
separately to the place of installation.
5.4 Installation
Installation room and space requirements
NOTE
Note and follow the local regulations and
standards regarding the installation room
and space requirements. The table shows
the regulations as per EN 378-1 relevant in
Germany.
Refrigerant Limit [kg/m³]
R 134a 0.25
R 404A 0.52
R 407C 0.31
R 410A 0.44
R 448A 0.39
“Technical data / Scope of supply”, from page 24
Minimum room volume =
NOTE
If several heat pumps of the same type are
installed only one heat pump need to be
pump with the largest refrigerant volume
Minimum volume corresponds to the require-
ments for the refrigerant used.
Installation inside the building only.
Installation room is dry and frost-free.
Clearance dimensions are met ( “Installation
plans”, from page 33).
unit:
level and horizontal
load-bearing capacity for the unit's weight
Aligning the unit
Align the unit horizontally and stably in the
installation site using the height-adjustable feet
and a spanner size SW 13. Adjustment range:
25 mm.
